(E-10A) - FUEL SYSTEM, PRE-CLEANER, PRE-SCREENER

Запчасти Case IH 815 (E-10A) - FUEL SYSTEM, PRE-CLEANER, PRE-SCREENER (02) - FUEL SYSTEM

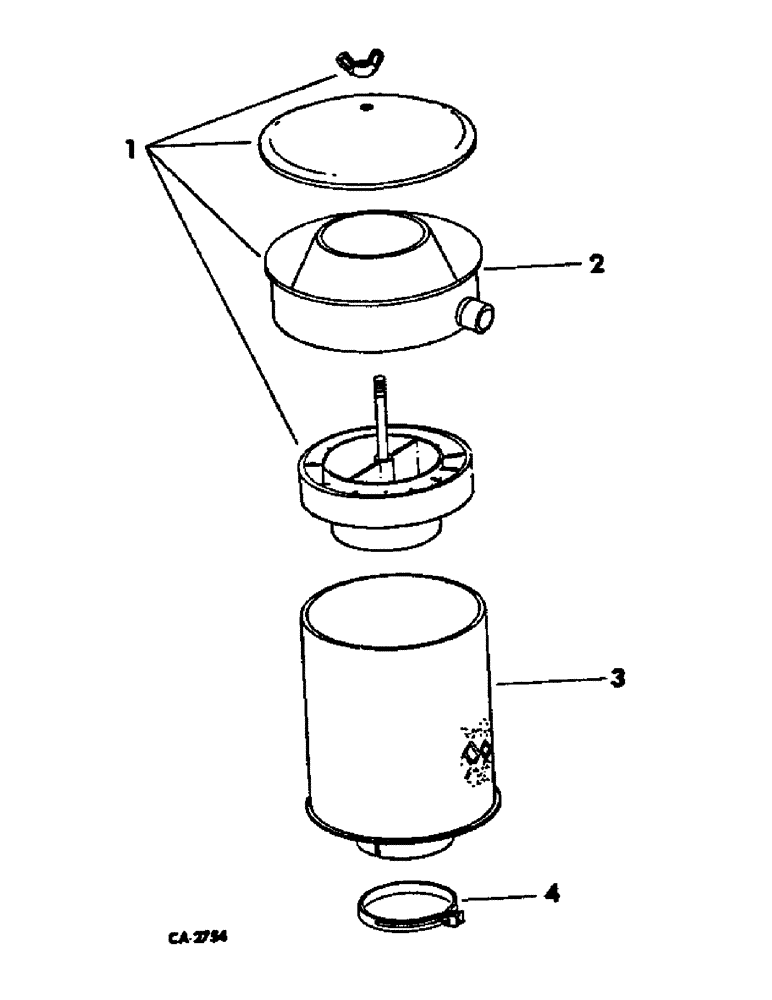

Схема запчастей Case IH 815 - (E-10A) - FUEL SYSTEM, PRE-CLEANER, PRE-SCREENER (02) - FUEL SYSTEM
4
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

533100R91

PRESCREENER

PRE-CLEANER, pre-screener

1шт.

1

548252R1

PISTON

PRE-CLEANER ASSY

1шт.

2

533251R1

BOWL

ASSY

1шт.

3

534801R1

BODY

ASSY

1шт.

4

875912R91

CLAMP

ASSY

1шт.
