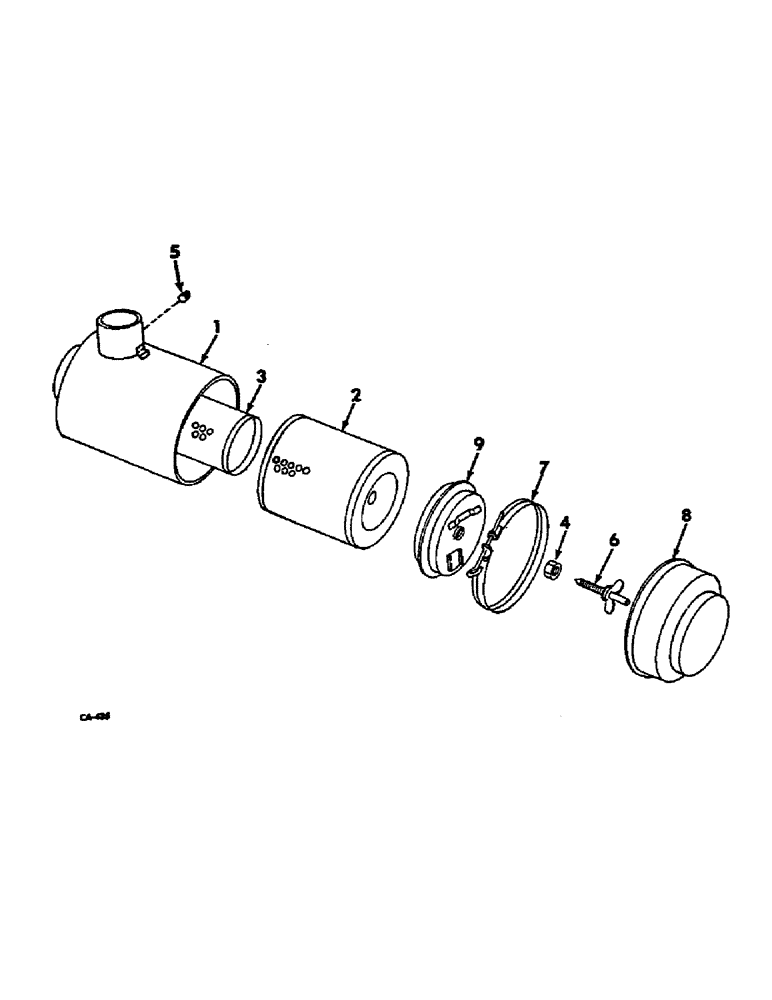

Запчасти Case IH 815 (E-07) - FUEL SYSTEM, AIR CLEANER, AIR MAZE (02) - FUEL SYSTEM

528505R93

FILTER CARTRIDGE

CLEANER ASSY, dry type, Air Maze, includes ref nos. 1 thru 9

1шт.

1

NOT SERVICED SEPARATELY, order air cleaner assy 528505R93

1шт.

2

619652C1

ELEMENT

ASSY, primary

1шт.

3

619651C1

ELEMENT

ASSY, safety

1шт.

4

225861

NUT,5/8"-18, G8

5/8-16 znd hex.

1шт.

5

445684

PLUG

pipe

1шт.

6

530115R1

BOLT ASSY, wing

1шт.

7

702639C91

CLAMP ASSY

1шт.

8

529586R1

BOWL, sub assy

1шт.

9

529587R2

PLATE, louver assy

1шт.
