(E-06) - FUEL SYSTEM, AIR CLEANER ASSYEMBLY, DONALSON

Запчасти Case IH 815 (E-06) - FUEL SYSTEM, AIR CLEANER ASSYEMBLY, DONALSON (02) - FUEL SYSTEM

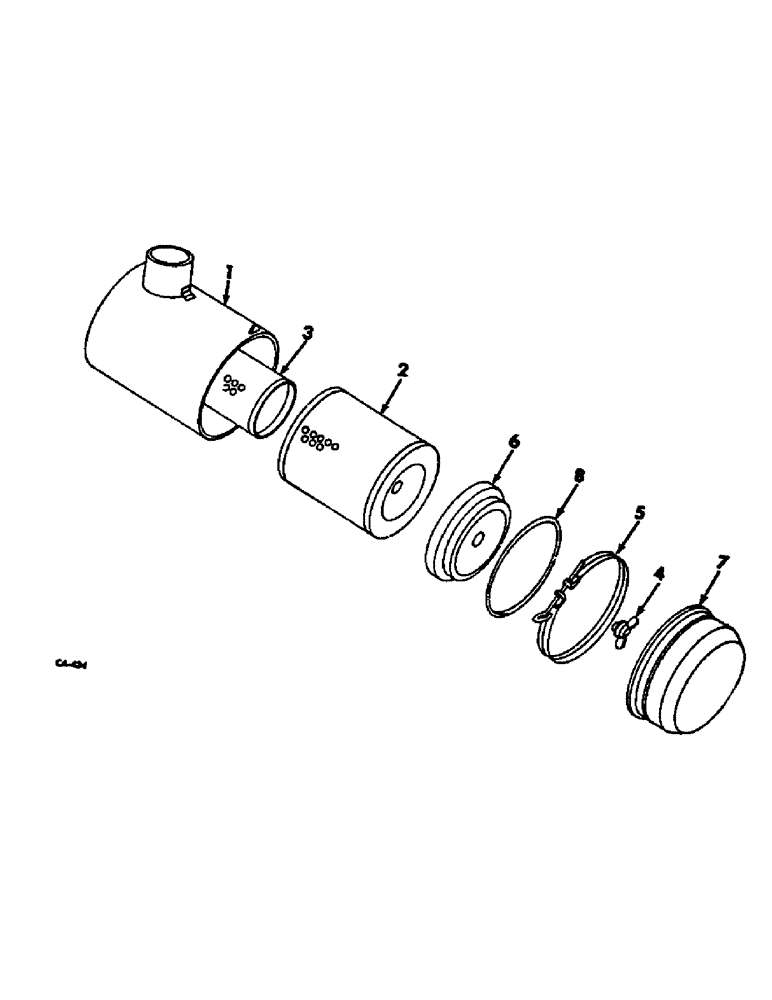

Схема запчастей Case IH 815 - (E-06) - FUEL SYSTEM, AIR CLEANER ASSYEMBLY, DONALSON (02) - FUEL SYSTEM
1
6
7
5
8
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

530751R92

CLEANER ASSY.

CLEANER ASSY, dry type, Donalson, includes ref nos. 1 thru 8

1шт.

1

NOT SERVICED SEPARATELY, order air cleaner assy 530751R92

1шт.

2

529821R1

ELEMENT

ASSY

1шт.

3

530270R2

AIR CLEANER

ELEMENT ASSY, safety

1шт.

4

412078C1

WING NUT

NUT ASSY, replaces 381342R92

1шт.

5

891128R91

CLAMP

ASSY

1шт.

6

383610C1

BAFFLE

ASSY

1шт.

7

529820R1

CUP

ASSY

1шт.

8

225067R1

O-RING,10.62" ID x 0.27" Width

1шт.
