(E-03) - FUEL SYSTEM, AIR HORN, USED WITH GASOLINE AND LP GAS ENGINES

Запчасти Case IH 815 (E-03) - FUEL SYSTEM, AIR HORN, USED WITH GASOLINE AND LP GAS ENGINES (02) - FUEL SYSTEM

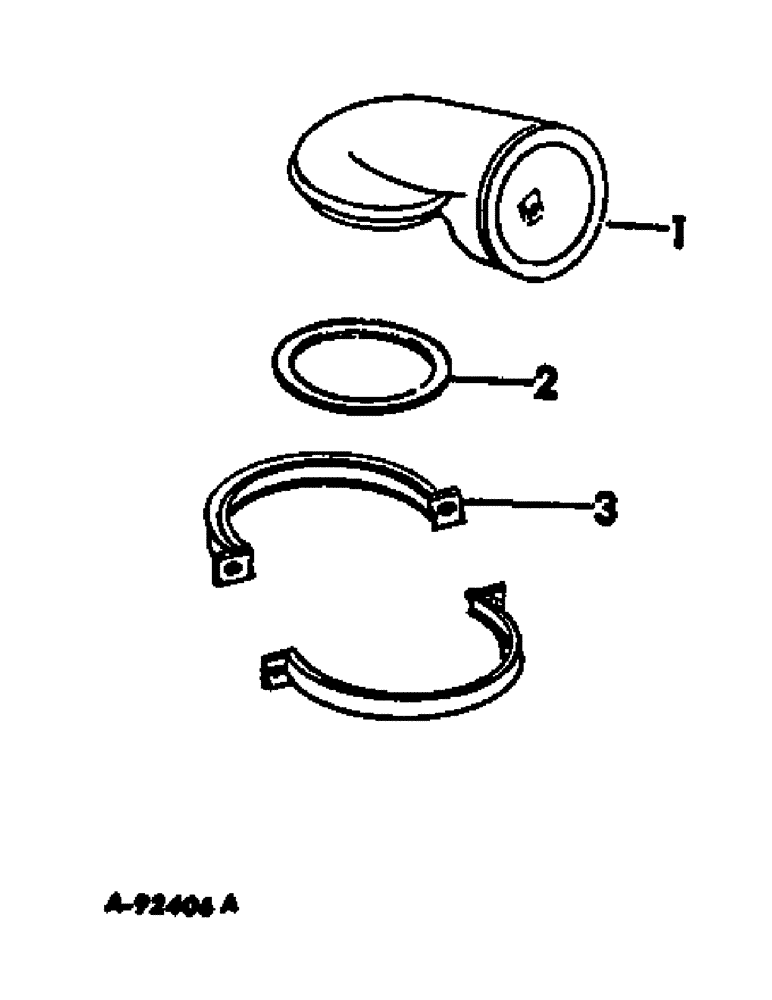

Схема запчастей Case IH 815 - (E-03) - FUEL SYSTEM, AIR HORN, USED WITH GASOLINE AND LP GAS ENGINES (02) - FUEL SYSTEM
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

537878R11

HORN ASSY, carburetor air, replaces 403471R2, for 304 and 345 gasoline engine combines

1шт.

444577

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG, 1/4 NPT sq-hd pipe

1шт.

1

149901R91

HORN ASSY, carburetor air, for 345 LP gas engine combines

1шт.

2

120581H

SEAL

carburetor air horn

1шт.

3

120580HX

CLAMP

ASSY, air horn mounting

2шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 1 znd slt-fil-hd mach

2шт.
