(10) - SPROCKET AND CHAIN DIAGRAM, RIGHT SIDE

Запчасти Case IH 815 (10) - SPROCKET AND CHAIN DIAGRAM, RIGHT SIDE (00) - GENERAL

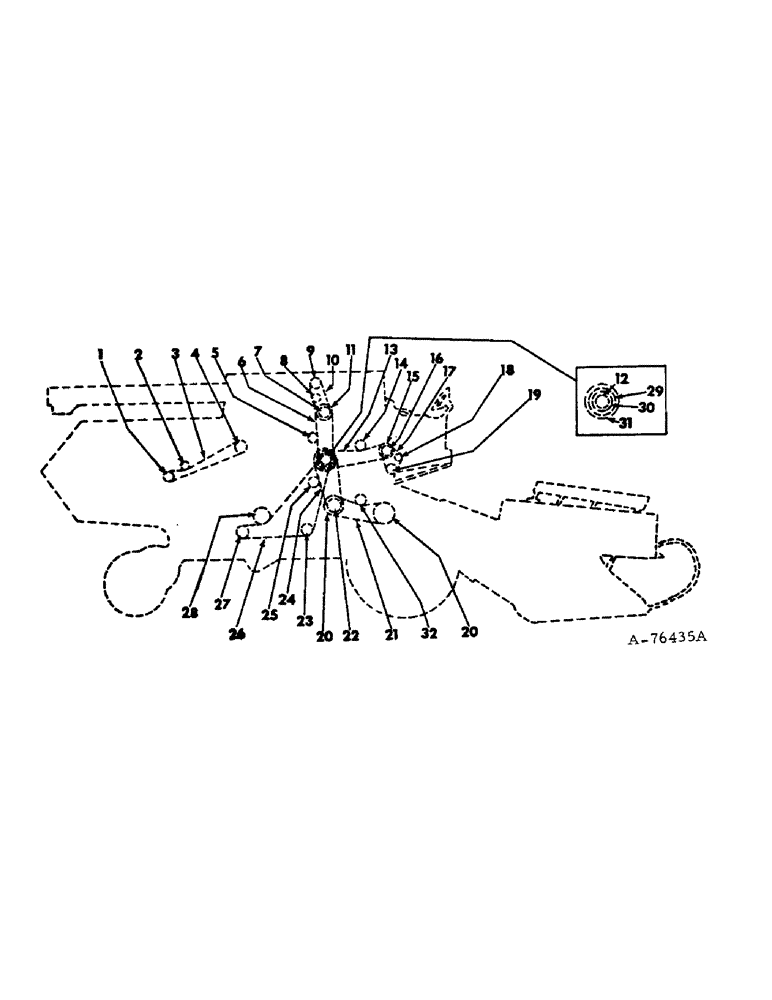

Схема запчастей Case IH 815 - (10) - SPROCKET AND CHAIN DIAGRAM, RIGHT SIDE (00) - GENERAL
18
21
23
29
19
7
2
4
6
17
26
5
31
32
8
27
30
24
20
13
9
1
12
22
3
11
25
16
14
20
15
10
28
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SPROCKET, rotary air screen drive, see section A, under radiator rotary air screen and drive

1шт.

2

SPROCKET, rotary air screen drive tightener, see section A under radiator rotary air screen & drive

1шт.

3

CHAIN ASSY, rotary air screen drive, see section A, under radiator rotary air screen and drive

1шт.

4

SPROCKET, rotary air screen driven, see section A under radiator rotary air screen and drive

1шт.

5

SPROCKET, grain tank distributor auger drive chain tightener, see section T under grain tank distributor auger and drive

1шт.

6

CHAIN ASSY, elevator jackshaft drive, see section S under grain elevator drive

1шт.

7

SPROCKET, grain elevator drive, see sec. S under grain elevator drive

1шт.

8

SPROCKET, grain elevator drive chain tightener, see sec. S under grain elevator drive

1шт.

9

SPROCKET, grain elevator driven, see sec. S under grain elevator drive

1шт.

10

CHAIN ASSY, grain elevator drive, see section S, under grain elevator drive

1шт.

11

SPROCKET, grain tank distributor auger drive, see section T under grain tank distributor auger & drive

1шт.

12

SPROCKET, elevator drive slip clutch, see section S under tailings elevator, trough and drive

1шт.

13

CHAIN ASSY, tailings elevator drive, see section S, under tailings elevator, trough and drive

1шт.

14

SPROCKET, tailings elevator drive idler, see section S under tailings elevator drive and trough

1шт.

15

SPROCKET, tailings elevator driven, see section S under tailings elevator and trough

1шт.

16

SPROCKET, tailings delivery auger drive, see section S, under tailing delivery auger and drive

1шт.

17

CHAIN ASSY, tailings delivery auger drive, see section S, under tailings delivery auger & drive

1шт.

18

SPROCKET, tailings delivery auger drive tightener, see section S under tailings delivery auger & drive

1шт.

19

SPROCKET, tailings delivery auger driven, see section S under tailings delivery auger and drive

1шт.

20

SPROCKET, cylinder drive, see section R under standard cylinder drive

1шт.

20

SPROCKET, cylinder drive slip clutch, see section R under cylinder slip clutch and speed indicator

1шт.

21

CHAIN ASSY, cylinder drive, see section R under standard cylinder drive

1шт.

22

SPROCKET, elevator jackshaft drive, see sec. S under grain elevator drive

1шт.

23

SPROCKET, straw rack drive idler, see sec. R under straw rack & drive

1шт.

24

CHAIN ASSY, elevator jackshaft drive, see section S under grain elevator drive

1шт.

25

SPROCKET, jackshaft drive tightener, see section S under grain elevator drive

1шт.

26

CHAIN ASSY, straw rack drive, see section R under straw rack and drive

1шт.

27

SPROCKET, straw back drive tightener, see section R under straw rack and drive

1шт.

28

SPROCKET, straw rack driven, see sec. R under straw rack and drive

1шт.

29

SPROCKET, tailings elevator drive, see section S under tailings elevator drive and trough

1шт.

30

SPROCKET, straw rack drive, see sec. R under straw rack and drive

1шт.

31

SPROCKET, elevator jackshaft driven, see section S under grain elevator drive

1шт.

32

SPROCKET, cylinder drive tightener, see section R under standard cylinder drive

1шт.
