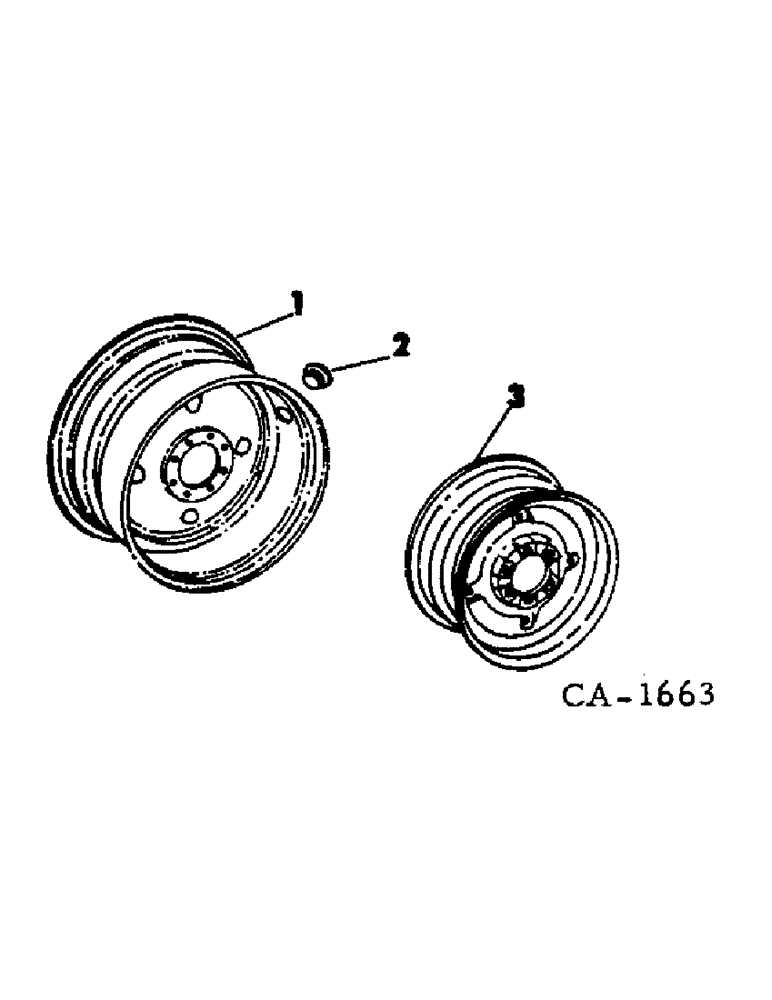

Запчасти Case IH 815 (L-02) - WHEELS AND WHEEL WEIGHTS, MAIN AND GUIDE WHEEL RIM AND DISC ASSY Wheels & Wheel Weights

1

165354C92

WHEEL

RIM & DISC ASSY, main wheel, DW16 x 26DC rein type for 18.4-26 tire, standard for grain, bean & windrow, optional for corn special

2шт.

1

165355C93

RIM

& DISC ASSY, main wheel, DW20 x 26DC for 23.1-26 tire, standard for rice and corn special

2шт.

1

168885C2

WHEEL

RIM & DISC ASSY, main wheel, DW20 x 34 for 23.1-34 tire, optional for rice special

2шт.

1

162313C91

WHEEL

RIM & DISC ASSY, main wheel, DW25 x 26 for 28.1-26 tire, optional for rice special

1шт.

2

383697R1

PLUG

valve hole, for use w/tube type tires

2шт.

2

417194C1

PLUG

valve hole, for use w/tubless tires

2шт.

3

370780R92

WHEEL

RIM & DISC ASSY, 5.50 x 18DC guide wheel, for 7.50-18 guide wheel tires

2шт.

3

624332R91

RIM & DISC ASSY, 5.50 x 20DC guide wheel, for 7.50-20 guide wheel tires

2шт.

3

936537R91

RIM

& DISC ASSY, 8.00 x 16DC guide wheel, for 9.5-16, 10.00-16, 11.00-16 & 11L-16 guide wheel tire

2шт.
