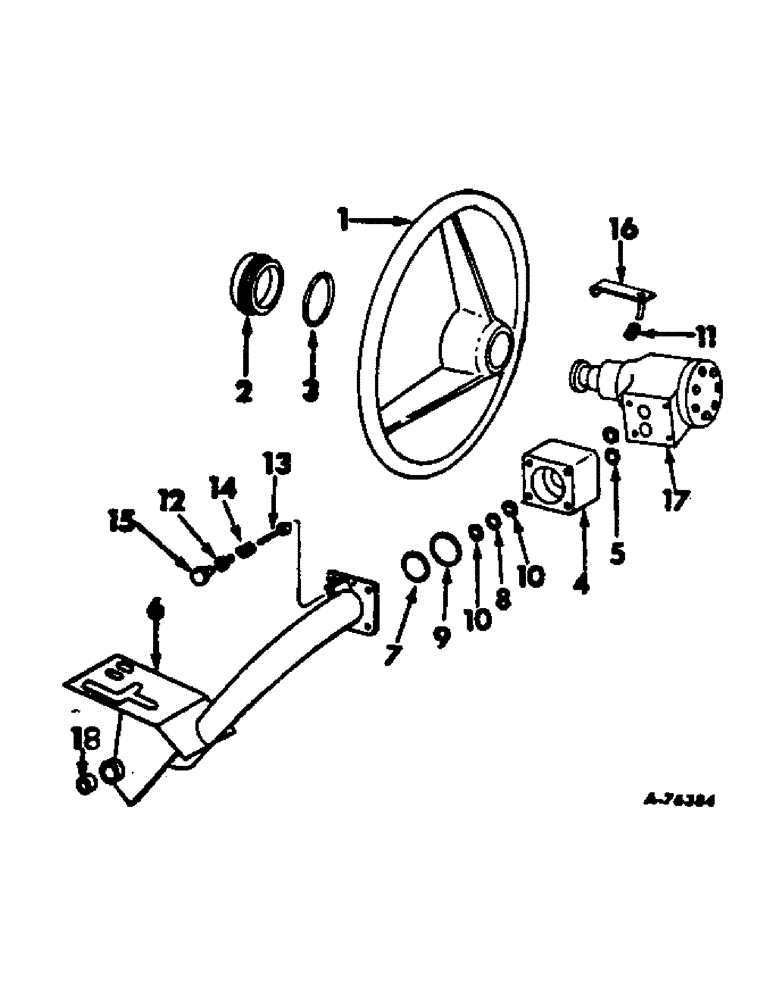

Запчасти Case IH 815 (J-05) - STEERING MECHANISM, STEERING WHEEL Steering Mechanism

1

385156R1

WHEEL (STEERING)

WHEEL, steering

1шт.

1

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

2

68837C1

CAP

steering wheel

1шт.

3

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32

1шт.

4

164910C1

BLOCK, steering wheel

1шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8 x 3-1/4 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32

2шт.

6

164913C91

SUPPORT ASSY, steering, includes ref no. 18

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

178974

SCREW,Sl Pan Hd, 1/4" - 14 x 1/2"

1/4 x 1/2 C-Z pan-hd self tap

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

164907C1

RING

1-7/8 x 2-1/4 teflon backup

2шт.

8

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3/4 x 1 x 1/8

1шт.

9

702283R1

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

1-7/8 x 2-1/4 x 3/16

1шт.

10

164908C1

RING, .75 x 1.0 teflon backup

1шт.

11

2189A

SPRING, starter pad

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

12

165681C1

BOLT,7/16" - 20 x 5/8"

steering pivot

1шт.

13

165697C1

STUD

PIN, steering locating

1шт.

14

606245R1

SPRING

steering pivot

1шт.

15

165706C1

KNOB

steering pivot

1шт.

16

165694C91

PAD ASSY, starter

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

17

PUMP ASSY, steering hand, refer to section F listed under steering hand pump

1шт.

18

165704C1

BUSHING

steering support

1шт.
