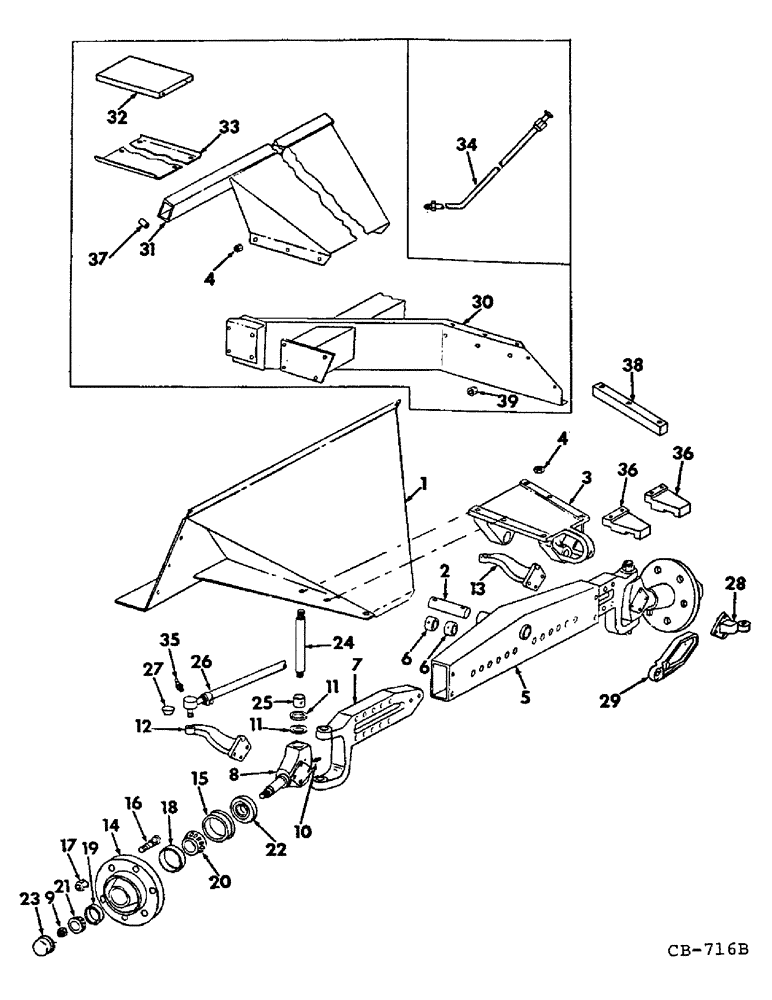

Запчасти Case IH 815 (J-02) - STEERING MECHANISM, GUIDE WHEEL AXLE, HUB AND KNUCKLE Steering Mechanism
№
Артикул
Название
Примечание
Количество
1
160485C91
SUPPORT ASSY, guide wheel axle, not rice special
1шт.
21330R1
NUT,1/2"-13, G8
1/2 C-Z type 8 hex
2шт.
629300R1
NUT, 1/2 C-Z type 8 hex
6шт.
629358R1
NUT
5/8 C-Z type 8 hex
4шт.
161068R1
BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"
4шт.
366864C1
LOCK WASHER,1/2"
1/2"
8шт.
366866C1
LOCK WASHER,5/8"
5/8"
4шт.
138553
WASHER
5/8 C-Z int-tooth lock
4шт.
2
158273C1
BAR, guide wheel axle pivot
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
180190
LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5
SCREW, 1/2 x 3 znp hex-hd cap
2шт.
366864C1
LOCK WASHER,1/2"
1/2"
2шт.
22051R1
WASHER
1-7/32 x 2-1/4 x 16 ga
4шт.
178373R1
WASHER
17/32 x 1 x 16 ga C-Z
2шт.
3
160245C3
SUPPORT, guide wheel axle lower, not rice special
1шт.
161068R1
BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"
6шт.
3
161941C2
SUPPORT, guide wheel axle lower rice, not 23.1-34 code R2 main wheel tires
1шт.
469805R1
BOLT,Hex, 5/8" - 11 x 2", Gr 8
SCREW, 5/8 x 2 hex-hd cap type 8
6шт.
3
168670C2
SUPPORT, guide wheel axle lower, rice w/23.1-34 code R2 main wheel tires
6шт.
469805R1
BOLT,Hex, 5/8" - 11 x 2", Gr 8
SCREW, 5/8 x 2 hex-hd cap type 8
8шт.
4
174763C1
FLANGE NUT,Flg, USR, 5/8"-12
5/8 C-Z flange lock, not rice special
6шт.
4
629359R1
NUT, 5/8 C-Z type 8 hex, rice special
1шт.
366866C1
LOCK WASHER,5/8"
5/8"
1шт.
5
158275C92
AXLE ASSY, guide wheel, includes ref no. 6, standard for rice, optional for grain, bean & windrow w/adj axle 52 in. to 68 in.
1шт.
5
160482C92
AXLE ASSY, guide wheel, includes ref no. 6, standard for corn special, optional for grain, bean & windrow w/adj axle 60 in. to 84 in.
1шт.
5
162493C92
AXLE ASSY, guide wheel, includes ref no. 6, standard for grain, bean and windrow special, non-adj axle
1шт.
6
158282C1
BUSHING
axle pivot tube
2шт.
7
158284C2
MEMBER, guide wheel axle, standard for corn special, optional for grain, bean & windrow w/adj axle 60 in. to 84 in.
2шт.
7
162494C1
MEMBER, guide wheel axle, standard for grain, bean and windrow non-adj axle
2шт.
629358R1
NUT
5/8 C-Z hex
1шт.
22228R1
BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8
SCREW, 5/8 x 3-1/2 hex-hd type 8
1шт.
23061R1
BOLT,Hex, 5/8" - 11 x 4", Gr 8
SCREW, 5/8 x 4 hex-hd cap type 8
1шт.
169210C1
SCREW, 5/8 x 4-1/4 hex-hd type 8
1шт.
366866C1
LOCK WASHER,5/8"
5/8"
1шт.
21471R1
WASHER
21/32 x 1 x 11 ga
1шт.
8
158285C11
KNUCKLE ASSY, guide wheel axle, includes ref no. 11, not rice special
2шт.
137214
COTTER PIN
1/8" x 1-3/4"
2шт.
8
169260C11
KNUCKLE ASSY, guide wheel axle, includes ref no. 11, rice special
2шт.
137263
STRIP
3/16" x 2"
2шт.
9
70120D
SLOTTED NUT,7/8"-14
NUT, 7/8-14 NF slt hex-jam, not rice special
2шт.
612889R1
WASHER
29/32 x 1-3/4 x 9 ga C-Z
2шт.
9
427652
SLOTTED NUT,1"-14, G5
NUT, 1-14 NF C-Z slt-hex, rice special
2шт.
936727R1
WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk
1-1/32 x 2-1/4 x 1/4
2шт.
11
571191R1
BUSHING
guide wheel axle knuckle
4шт.
12
158286C2
ARM, guide wheel axle knuckle LH
1шт.
629300R1
NUT, 1/2 C-Z type 8 hex
4шт.
186659
BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 8
SCREW, 1/2 x 3-3/4 znp hex-hd cap type 8, not rice
4шт.
20127R1
SCREW
1/2 x 4-1/4 C-Z hex-hd cap type 8, rice
4шт.
366864C1
LOCK WASHER,1/2"
1/2"
4шт.
13
158287C1
ARM, guide wheel axle knuckle RH
1шт.
629300R1
NUT, 1/2 C-Z type 8 hex
4шт.
20127R1
SCREW
1/2 x 4-1/4 znp hex-hd cap type 8, not rice
4шт.
211217R1
BOLT,Hex, 1/2" - 13 x 4 3/4", Gr 8
SCREW, 1/2 x 4-3/4 znp hex-hd cap, rice
4шт.
366864C1
LOCK WASHER,1/2"
1/2"
4шт.
14
654661R92
HUB
ASSY, guide wheel, includes ref. nos. 15 thru 19, not rice special
2шт.
14
169293C11
HUB
ASSY, guide wheel, includes ref nos. 15 thru 19, rice special
2шт.
15
654675R1
RING
guide wheel hub oil seal wear, not rice special
2шт.
15
169328C1
SLEEVE
RING, guide wheel hub oil seal wear, rice special
2шт.
16
456267R1
BOLT,1/2" - 20 x 1 7/8"
wheel hub, not rice special
12шт.
16
366021R2
BOLT,Round, 5/8" - 18 x 2 1/4"
wheel hub, rice special
16шт.
17
169228C1
NUT
wheel hub bolt, not rice special
12шт.
17
554480R1
WHEEL NUT
wheel hub bolt, rice special
16шт.
18
663558R1
BEARING CUP
BEARING, guide wheel hub inner cup, not rice special
2шт.
18
625743C1
BEARING CUP,90mm OD x 18.5mm W
BEARING, guide wheel hub inner cup, rice special
2шт.
19
663558R1
BEARING CUP
BEARING, guide wheel hub outer cup, rice special
2шт.
20
663557R91
BEARING ASSY,1.625" ID x 2.892" OD x 0.77"
BEARING ASSY, guide wheel hub inner cone, not rice special
2шт.
20
625742C91
BEARING
ASSY, guide wheel hub inner cone, rice special
2шт.
21
ROLLER BEARING,31.77 mm ID x 16.08 mm
BEARING ASSY, guide wheel hub outer cone, not rice special
2шт.
21
663557R91
BEARING ASSY,1.625" ID x 2.892" OD x 0.77"
BEARING ASSY, guide wheel hub outer cone, rice special
2шт.
22
654674R91
OIL SEAL
ASSY, guide wheel hub oil, not rice special
2шт.
22
169329C91
OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk
ASSY, guide wheel hub oil, rice special
2шт.
23
663906R1
CAP
guide wheel hub, not rice special
2шт.
23
560950R1
HUB CAP
CAP, guide wheel hub, rice special
2шт.
24
158290C1
STUD, guide wheel knuckle king
2шт.
427643
SLOTTED NUT,7/8"-9, G5
NUT, 7/8 C-Z slt-hex
4шт.
137204
COTTER PIN,1/8" x 1 1/2"
PIN, SPLIT (COTTER), 1/8" x 1 1/2"
4шт.
615196R1
WASHER
29/32 x 1-3/4 x 16 ga
4шт.
25
21076D
BEARING ASSY,31.9mm ID x 55.56mm OD x 16.13mm W
BEARING, guide wheel hub king pin thrust
2шт.
26
158291C92
ROD ASSY, guide wheel tie, standard for rice, optional for grain, bean & windrow w/adj axle 52 in. to 64 in.
1шт.
26
162496C91
ROD ASSY, guide wheel tie, standard for grain, bean and windrow special, non-adj axle
1шт.
26
158292C91
ROD ASSY, guide wheel tie, standard for corn special, optional for grain, bean & windrow w/adj axle 60 in. to 84 in.
1шт.
425-1310
SLOTTED NUT,5/8"-18, G5
NUT, 5/8-18 NF C-Z sltd hex
2шт.
103387
COTTER PIN,1/8" x 1 1/2"
PIN, 1/8 x 1-1/8 cotter
2шт.
21796R1
WASHER
21/32 x 1 x 16 ga C-Z
2шт.
27
382562R1
SEAL
guide wheel tie rod stud
2шт.
28
158293C1
ARM, steering cylinder
1шт.
29
154714C2
ANCHOR, steering cylinder, standard for rice, optional for grain, bean & windrow w/adj axle 52 in. to 68 in.
1шт.
29
160244C1
ANCHOR, steering cylinder, standard for corn special, optional for grain, bean & windrow w/adj axle 60 in. to 84 in.
1шт.
30
162039C94
SUPPORT ASSY, guide wheel axle, standard for rice adj axle 52 in. to 68 in.
1шт.
427566
BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd
SCREW, 1/2 x 1-1/2 znp hex-hd cap type 8
4шт.
31
162046C92
SUPPORT ASSY, guide wheel axle upper, std for rice adj axle 52-58 in.
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
6шт.
186635
SCREW
1/2 x 3 znd hex-hd cap
4шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
6шт.
366864C1
LOCK WASHER,1/2"
1/2"
6шт.
32
162057C2
CHANNEL, guide wheel axle support shield, standard for rice adj axle 52 in. to 68 in.
1шт.
167842C1
BOLT, 5/8 x 13 C-Z hex-hd mach
2шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8 C-Z hex
2шт.
366866C1
LOCK WASHER,5/8"
5/8"
2шт.
33
162058C1
CHANNEL, guide wheel axle support, std for rice adj axle 52-58 in
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
6шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
SCREW, 1/2 x 1-1/2 hex-hd cap
6шт.
366864C1
LOCK WASHER,1/2"
1/2"
6шт.
34
166841C92
TUBE ASSY, steering rear lower, optional for grain, bean and windrow w/adj axle 52 in. to 68 in.
1шт.
35
19964R91
FITTING, 1/4-28 90 deg lub
2шт.
36
168073C2
STOP, guide wheel axle pivot, for LP gas engine or 9.50-20 code F2 or 11.00-16 code F2 guide wheel tires
1шт.
20105R1
BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8
5/8 x 2-3/4 hex-hd type 8
2шт.
37
552920R2
SPACER,3/4" Tube x 1 1/2"
guide wheel axle upper support, rice special
4шт.
38
172940C1
SPACER, guide wheel support, for use w/11L-16 code I16 ply tires
2шт.
20906R1
BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8
5/8 x 3-1/4 hex-hd type 8
6шт.
174763C1
FLANGE NUT,Flg, USR, 5/8"-12
5/8 znd flange lock
6шт.
39
629300R1
NUT, 1/2 C-Z type 8 hex, for rice special
20шт.
366864C1
LOCK WASHER,1/2"
1/2"
20шт.
139549
WASHER, 1/2 C-Z int-tooth lock
8шт.
Выбрано товаров: 118
