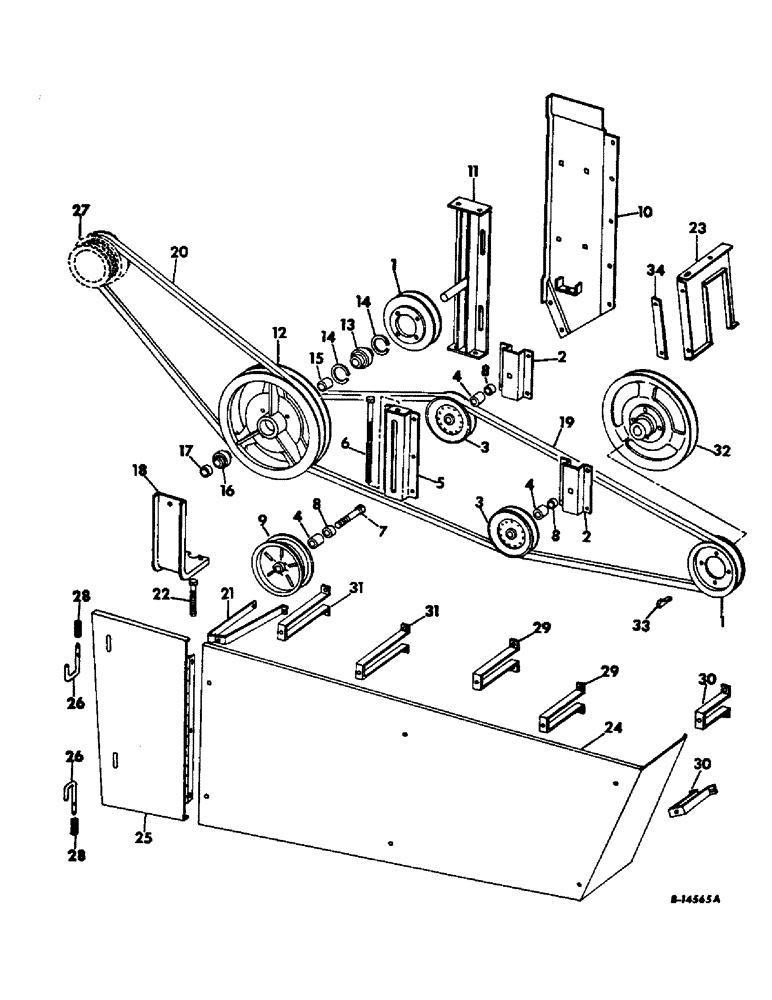

Запчасти Case IH 815 (R-66) - SEPARATOR, STRAW CHOPPER DRIVE, SERIAL NO. 3783 AND BELOW Separation

1

160992C1

PULLEY, straw chopper driven 9.6 OD

2шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

2

161600C1

SUPPORT, straw chopper belt rear idler

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

8шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss-hd

8шт.

3

574097R91

PULLEY

ASSY, straw chopper drive belt idler

2шт.

20626R1

BOLT

5/8 x 4-3/4 C-Z sq-nk crg

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

2шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

2шт.

21783R1

SQ HOLE WASHER,41/64" x 1 1/2" x .105", Sq Hole

21/32 sq x 1-1/2 x 12 ga C-Z

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

6шт.

4

161584C1

SPACER, straw chopper drive belt idler pulley

3шт.

5

161588C91

SUPPORT ASSY, straw chopper drive belt tightner pulley

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss-hd

6шт.

6

161586C1

BOLT, straw chopper drive belt tightener pulley draw

1шт.

7

161587C1

BOLT, straw chopper drive belt tightener pulley stub

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

4шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga

1шт.

8

161583C1

SPACER, straw chopper drive belt idler

3шт.

9

936922R91

BEARING

PULLEY ASSY, straw chopper drive belt tightener

1шт.

10

161591C91

PLATE ASSY, straw chopper jackshaft drive belt tightener

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

9шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss-hd

9шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

4шт.

11

161602C91

SUPPORT ASSY, straw chopper drive jackshaft belt tightener

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z slt truss-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga C-Z

3шт.

21226R1

WASHER

1-9/32 x 2 x 11 ga C-Z

2шт.

12

160868C1

PULLEY, straw chopper jackshaft driven

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

21883R1

WASHER

17/32 x 1-3/4 x 1/8 C-Z

1шт.

13

161741C91

BEARING ASSY, straw chopper drive jackshaft pulley inner ball

1шт.

14

45650D

RETAINER

SNAP RING, jksft pulley inner brg

2шт.

15

161582C1

BUSHING, straw chopper jackshaft brg

1шт.

16

161739C91

BEARING

ASSY, straw chopper drive jackshaft pulley outer

1шт.

17

161599C1

BUSHING, straw chopper jackshaft outer

1шт.

18

161601C1

BRACKET, straw chopper jackshaft anchor outer

1шт.

19

160870C1

V-BELT,0.88" W x 199.89" L

Straw Chopper Drive 0.88" W x 199.89" L

1шт.

20

160871C1

V-BELT,0.88" W x 132.55" L

Straw Chopper Jackshaft Drive, Not Diesel Engine 0.88" W x 132.55" L

1шт.

20

168678C1

BELT

straw chopper jackshaft drive, for diesel engine

1шт.

21

161609C1

BRACKET, straw chopper drive inspection door

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

22

162293C1

BOLT, straw chopper belt tightener

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

23

162405C1

SUPPORT, strw chpr side rear trim LH

1шт.

24

169003C2

SHIELD ASSY, straw chopper drive rear

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

3шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt truss-hd

3шт.

25

162395C91

DOOR ASSY, straw chopper drive belt inspection

1шт.

26

173242C1

HANDLE

PIN, straw chopper dr inspect door

2шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

2шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga C-Z

2шт.

27

PULLEY, separator drive 8.6 in. OD, refer to separator drive unit for listing

1шт.

28

606245R1

SPRING

inspection door locking pin

2шт.

29

163895C1

SUPPORT, drive shield center

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss-hd

4шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 C-Z slt truss-hd

2шт.

30

163896C1

SUPPORT, drive shield rear

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss-hd

4шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 C-Z slt truss-hd

1шт.

164191C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1 1/2"

5/16 x 1-1/2 C-Z slt truss-hd

1шт.

20893R1

WASHER

11/32 x 1 x 11 ga C-Z

4шт.

31

163897C1

SUPPORT, drive shield front

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss-hd

2шт.

161945

BOLT

SCREW, 5/16 x 1 C-Z slt truss-hd

2шт.

32

160867C1

PULLEY, straw chopper jackshaft driven

1шт.

33

Q3952

KEY,Gib, 3/8" Sq x 2 3/4"

3/8 x 2-3/4 gib

1шт.

34

166092C1

STRAP, straw chopper trim support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt truss-hd

1шт.
