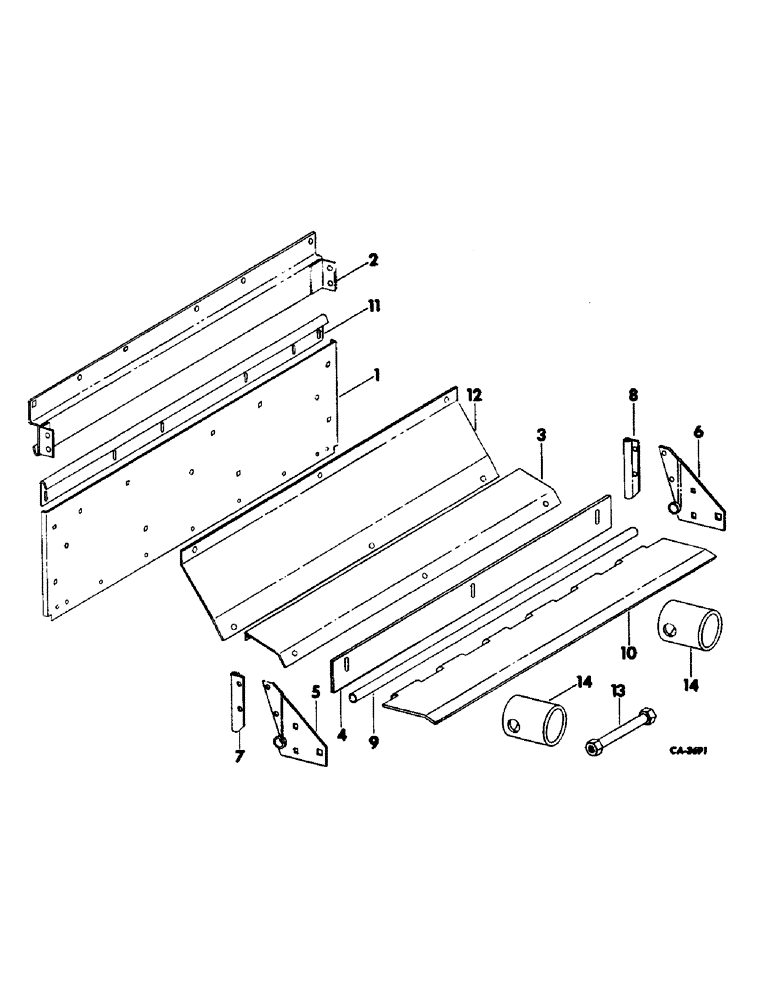

Запчасти Case IH 815 (A-16) - FEEDERS AND RELATED PARTS, SEPARATOR FEEDER ADAPTER PARTS, 815 & 915 COMBINES (60) - PRODUCT FEEDING

1

179677C1

DOOR, cylinder front, 815 combine

1шт.

1

179678C1

DOOR, cylinder front, 915 combine

1шт.

2

170237C1

SUPPORT ASSY, cylinder front door, 815 combine

1шт.

2

170240C1

SUPPORT ASSY, cylinder front door, 915 combine

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znd slt-truss-hd

1шт.

3

179679C1

SUPPORT, cylinder deflector, 815 combine

1шт.

3

179680C1

SUPPORT, cylinder deflector, 915 combine

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 znd flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 znd slt-truss-hd

1шт.

4

174819C1

PLATE, cylinder door deflector, 815 combine

1шт.

4

174820C1

PLATE, cylinder door deflector, 915 combine

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znd slt-truss-hd

1шт.

5

179687C1

SUPPROT ASSY, feeder door LH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120657

SCREW

1/4 x 1 znp f/hds mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , The following hardware is for use on combines w/stone retarder 3/8"

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

6

179688C1

SUPPORT ASSY, feeder door RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120657

SCREW

1/4 x 1 znp f/hds mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , The following hardware is for use on combines w/stone retarder 3/8"

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

7

179691C1

SEAL

feeder pivot lower LH

1шт.

8

179692C1

SEAL

feeder pivot lower RH

1шт.

9

179693C1

PIPE, concave extension support, 815 combine

1шт.

9

179694C1

PIPE, concave extension support, 915 combine

1шт.

10

179695C1

EXTENSION

ASSY, feeder bottom, 815 combine

1шт.

10

179697C1

EXTENSION ASSY, feeder bottom, 915 combine

1шт.

11

170235C1

SUPPORT, cylinder door upper, 815 combine

1шт.

11

170236C1

SUPPORT, cylinder door upper, 915 combine

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

12

174817C1

DEFLECTOR, cylinder door, 815 combine

1шт.

12

174818C1

DEFLECTOR, cylinder door, 915 combine

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znd slt-truss-hd

1шт.

13

179743C1

TUBE ASSY, adaptor, for use w/hyd reel lift 0.375" OD, 6" Length

1шт.

14

179190C1

PIPE, helper spring, for use w/auto header control

2шт.
