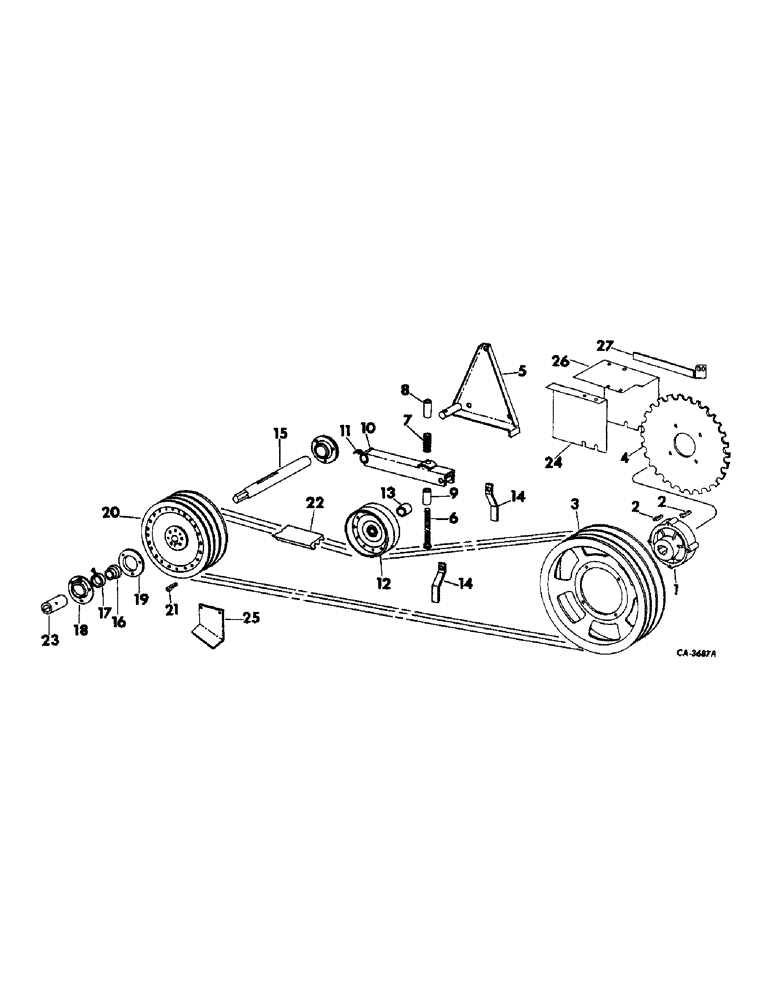

Запчасти Case IH 815 (A-15) - FEEDERS AND RELATED PARTS, FEEDER JACKSHAFT DRIVE, 815 AND 915 COMBINES (60) - PRODUCT FEEDING

1

176556C1

HUB

feeder drive pulley

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2 gib

2шт.

3

176575C1

PULLEY

feeder jackshaft drive, 16.7 in. OD, 424.2 mm OD, triple groove

1шт.

4

179709C1

SPROCKET ASSY.

SPROCKET, header drive, 49T

1шт.

5

176545C1

SUPPORT

ASSY, tightener pivot

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

6

176548C1

BOLT,Hex, 1/2" - 13

jackshaft drive tightener adj

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

608081R1

WASHER

.656 x 1.75 x .105 znd

1шт.

7

PO3A

SPRING

drive tightener adj bolt

1шт.

8

176581C1

SPACER

adj bolt spring

1шт.

9

176544C2

SPACER

adj bolt spring inner

1шт.

10

176549C1

ARM

ASSY, belt drive tightener pivot

1шт.

11

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 deg self-tap lub

1шт.

12

176579C1

IDLER

ASSY, jackshaft drive tightener, 8 in. OD, 203.2 mm OD

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 znd hex.

1шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

SCREW, 5/8 x 7-1/2 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

13

657114R1

SPACER,3/4" X-Strng Pipe x 2 3/8"

3/4 x 2.375 extra strong pipe

1шт.

14

197110C1

GUIDE

jackshaft belt

2шт.

15

176570C1

SHAFT

JACKSHAFT, feeder, 815 combine

1шт.

15

176571C1

JACKSHAFT

feeder, 915 combine

1шт.

16

611583R91

BALL BEARING

BEARING, feeder jackshaft

2шт.

17

517645R11

COLLAR

W/SET SCREW, jackshaft brg

2шт.

18

617863R1

FLANGED BEARING

feeder jackshaft

2шт.

19

617863R1

FLANGED BEARING

feeder jackshaft

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20

176573C4

PULLEY

feeder jackshaft drive, 13.4 in. OD, 340.4 mm OD, triple groove

1шт.

21

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2 gib

1шт.

22

176567C1

SET OF BELTS

Feeder jackshaft drive, Triple

1шт.

23

176537C2

SPLINED COUPLING,28.83mm ID x 44.45mm OD x 203.2mm L

COUPLING, feeder jackshaft drive

1шт.

517843R1

COTTER PIN

PIN, 3/16 quick-attach cotter

1шт.

23170R1

HEADED PIN,1/2" x 2 3/8"

PIN, 1/2 x 2-3/8 znd std-hd

1шт.

24

187255C1

SHIELD, jackshaft driven pulley

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 crg type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

25

177143C1

PLATE, jackshaft driven pulley guard

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

26

187256C1

SHIELD, feeder jackshaft driven pulley

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

27

187257C1

ANGLE, shield support, 915 combine

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.
