Запчасти Case IH 815 (A-11) - FEEDERS AND RELATED PARTS, FEEDER, CONVEYOR, ADAPTER AND RELATED PARTS, 815 & 915 COMBINES (60) - PRODUCT FEEDING

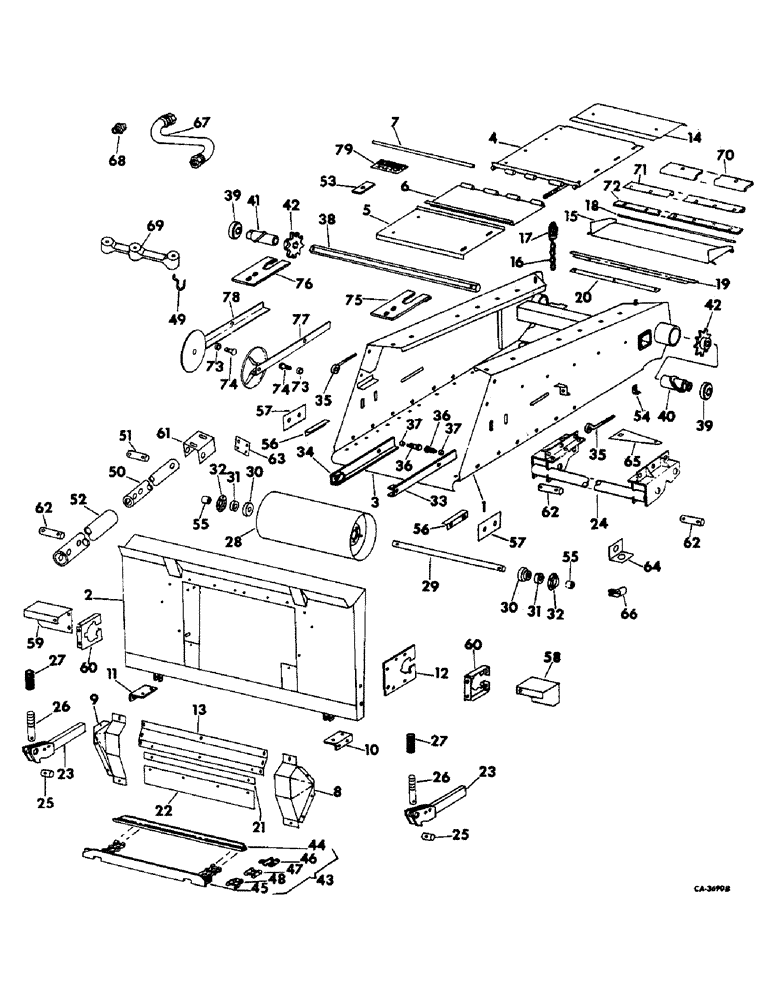

Схема запчастей Case IH 815 - (A-11) - FEEDERS AND RELATED PARTS, FEEDER, CONVEYOR, ADAPTER AND RELATED PARTS, 815 & 915 COMBINES (60) - PRODUCT FEEDING
22
39
61
23
57
17
75
71
11
68
77
20
4
25
27
60
14
43
50
27
62
62
54
72
31
32
53
26
10
52
41
25
13
31
46
16
7
42
74
74
21
56
19
60
73
35
49
73
62
65
28
63
30
36
64
26
40
66
44
70
56
34
32
51
69
6
59
33
48
12
45
55
36
5
24
58
29
76
67
8
37
30
39
15
18
79
78
42
2
35
55
38
57
23
9
47
37
3

Артикул

Название

Примечание

Количество

1

197941C2

HOUSING ASSY, feeder, 815 combine

1шт.

1

197942C2

HOUSING ASSY, feeder, 915 combine

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znd slt-truss-hd

1шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/2 type 5

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608081R1

WASHER

.656 x 1.750 x .090

1шт.

2

175863C1

ADAPTER ASSY, feeder, 815 combine

1шт.

2

175864C4

ADAPTER

ASSY, feeder, 915 combine

1шт.

3

180407C1

SHEET

feeder bottom, 815 combine

1шт.

3

187295C1

SHEET

ASSY, feeder bottom, 915 combine

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

4

175890C1

SHEET ASSY, feeder top, 815 combine

1шт.

4

175891C1

SHEET ASSY, feeder top, 915 combine

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

5

175900C2

TOP, feeder lower, 815 combine

1шт.

5

175901C2

TOP, feeder lower, 915 combine

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1.2 x 1 crg type 5

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

6

180555C91

DOOR ASSY.

DOOR, feeder top, 815 combine

1шт.

6

180556C91

DOOR

feeder top, 915 combine

1шт.

7

175906C1

ROD

feeder top door hinge, 815 combine

1шт.

7

175907C1

ROD

feeder top door hinge, 915 combine

1шт.

8

175908C1

DEFLECTOR

ASSY, feeder front LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znd slt-truss-hd

1шт.

9

175909C1

DEFLECTOR

ASSY, feeder front RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

10

175913C1

ANGLE

feeder adapter LH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

NLS

NO LONGER SERVICED

.53 x 1.06 x .10 znd

1шт.

11

175914C1

ANGLE

feeder adapter RH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

.53 x 1.06 x .10 znd

1шт.

12

175915C1

SUPPORT

feeder jackshaft brg, 1 used 815, 2 used 915

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd sq-nk crg

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 znd flange lock

1шт.

13

175917C1

COVER

feeder adapter, 815 combine

1шт.

13

175918C1

COVER

feeder adapter, 915 combine

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znd slt-truss-hd

1шт.

14

179675C1

COVER, feeder top, 815 combine

1шт.

14

179676C1

COVER, feeder top, 915 combine

1шт.

15

179681C1

DOOR ASSY, feeder, 815 combine

1шт.

15

179682C1

DOOR ASSY, feeder, 915 combine

1шт.

16

167570C1

CHAIN,203.2mm L

feeder door latch

2шт.

17

622016R1

SPRING

feeder door latch

2шт.

18

179685C1

ROD

feeder door hinge, 815 combine

1шт.

18

179686C1

ROD, feeder door hinge, 915 combine

1шт.

19

175933C1

DOOR SEAL

feeder door, 815 combine, metal type seal

1шт.

19

175934C1

SEAL

feeder door, 915 combine, metal type seal

1шт.

104051

RIVET, 3/16 x 1/2 90 deg csk-hd But Hd, 1/8" x 1/4"

1шт.

20

175949C1

STRIP, feeder lower door seal, 815 combine, metal type seal

1шт.

20

175950C1

STRIP

feeder lower door seal, 915 combine, metal type seal

1шт.

21

175952C1

BAR

STRIP, front cover back, 815 combine

1шт.

21

175953C1

STRAP

STRIP, front cover back, 915 combine

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 hex-hd

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 prevailing torque lock

1шт.

22

175955C1

COVER

front lower, 815 combine

1шт.

22

175956C1

COVER

front lower, 915 combine

1шт.

23

179024C1

HINGE

HANDLE ASSY, feeder latch

2шт.

24

179699C1

BRACKET

ASSY, header lift, 815 combine

1шт.

24

179700C1

BRACKET ASSY, header lift, 915 combine

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

25

177141C1

PIN,15.88mm OD x 41mm L

feeder latch pivot

2шт.

17132R1

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

21471R1

WASHER

.656 x 1.000 x .105

1шт.

26

177138C1

ROD

feeder latch

2шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 P/T lock type 5

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

27

367833R1

SPRING

feeder latch rod

2шт.

28

175975C1

DRUM HUB

DRUM ASSY, feed conveyor, 815 combine

1шт.

28

175976C1

DRUM HUB

DRUM ASSY, feed conveyor, 915 combine

1шт.

29

175982C2

SHAFT

feed conveyor drum, 815 combine

1шт.

29

175983C2

SHAFT

feed conveyor drum, 915 combine

1шт.

22192R1

WASHER

1.031 x 1.375 x .054

1шт.

30

202311C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING, feed conveyor drum

2шт.

31

455102R21

COLLAR

ASSY, conveyor drum locking

2шт.

32

165360C1

FLANGED BEARING,95.2 mm OD x 8.74 mm

FLANGE, feed conveyor drum bearing

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

33

178756C2

ARM

ASSY, conveyor drum support LH

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8 x 2 znd hex-hd cap

1шт.

34

178757C2

ARM

ASSY, conveyor drum support RH

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8 x 2 znd hex-hd cap

1шт.

35

176508C1

BOLT,5/8" - 11 x 228.60mm

feed conveyor tightener

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

36

178005C1

BOLT,Hex, 5/8" - 11 x 3", Gr 5

conveyor drum support arm

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

37

558506R1

SPACER

support arm bolt

2шт.

38

176511C1

SHAFT

feed conveyor, 815 combine

1шт.

38

176510C1

SHAFT

feed conveyor, 915 combine

1шт.

137323

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

1шт.

609376R1

WASHER

1.781 x 2.500 x .105

1шт.

39

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

BEARING, feed conveyor shaft

2шт.

40

178780C1

SPACER

ASSY, conveyor sprocket LH

1шт.

41

178781C1

SPACER

ASSY, conveyor sprocket RH

1шт.

42

197556C1

SPROCKET ASSY.

SPROCKET FEED, conveyor, 9T, 2 used 815, 3 used 915

1шт.

197643C1

SET SCREW

special set

1шт.

43

179744C92

CHAIN (AG)

CHAIN ASSY, feed conveyor, 815 combine

1шт.

43

179746C92

CHAIN (AG)

CHAIN ASSY, feed conveyor, 915 combine, includes ref nos. 44 thru 48

1шт.

44

175996C1

SLAT

feed conveyor, 815 combine

21шт.

44

175997C1

SLAT

feed conveyor, 915 combine

41шт.

104264

RIVET,FH, 5/16" x 5/8"

5/16 x 5/8 f-hd solid

1шт.

45

177302C1

SLAT

ASSY, conveyor stripper, 815 combine

1шт.

45

177304C1

SLAT

ASSY, conveyor stripper, LH, 915 combine

1шт.

45

177305C1

SLAT

ASSY, conveyor stripper, RH, 915 combine

1шт.

104264

RIVET,FH, 5/16" x 5/8"

5/16 x 5/8 f-hd solid

4шт.

46

176505C1

LINK

ASSY, attaching, use w/179744 and 746C91

1шт.

46

189710C1

LINK,A550, 3 Links x 41.4mm = 124.2mm

ASSY, attaching, use w/179744 and 746C92, consists of side bar w/riveted pins and 1 loose side bar

1шт.

47

179903C2

LINK

ASSY, connecting, consists of side bar w/riveted pins and 1 loose side bar

1шт.

48

179904C2

CLEVIS PIN

LINK ASSY, offset, consists of side bars w/roller and 1 loose pin

1шт.

49

179207C1

HOOK

rubber retainer strap, for use w/hyd reel lift

2шт.

50

179712C1

TUBE, feeder safety stand anchor rear 30" Length

1шт.

51

164533C1

PIN

safety stand anchor rear

1шт.

517843R1

COTTER PIN

PIN, 3/16 quick-attach cotter

1шт.

NLS

NO LONGER SERVICED

SPLIT (COTTER), 3/16" x 2"

1шт.

52

187154C91

PIPE, safety stand front

1шт.

53

154041C1

STRIP

feeder top door hold down

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

54

154971C1

ANGLE

feeder door spring

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

164191C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1 1/2"

5/16 x 1-1/2 znp slt-truss-hd

1шт.

55

M74461

SPACER,26.6mm ID x 33.4mm OD x 19mm L

Use w/Ref #'s 33 and 34 1" Pipe x 3/4"

2шт.

56

179273C1

STOP, feed conveyor drum lower, use w/ref. nos. 33 and 34

2шт.

57

179274C1

COVER, feedere side

2шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

58

179253C1

SHIELD

feeder jackshaft LH, 815 combine

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

59

179254C1

SHIELD

feeder jackshaft RH

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

60

178254C1

SUPPORT

feeder jackshaft shield

2шт.

61

179663C1

CHANNEL

feeder safety stand lock

1шт.

62

573762R1

PIN,25.4mm OD x 130.97mm L

hyd cyl front anchor and safety stand front anchor

3шт.

103411

SPLIT (COTTER), 3/16" x 2"

1шт.

63

179748C1

PLATE, safety stand support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

64

179281C1

ANGLE, cable support bracket, for use w/auto header control

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

65

179282C1

BRACKET

cable support, for use w/auto header control

1шт.

66

299407C1

CLAMP

lower cable, for use w/auto header control

1шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 znd hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

67

347186R91

HOSE

3/8 ID, 51 in., 1295.4 mm, for use w/hyd reel or windrow pickup drive

1шт.

68

9403216

HYD CONNECTOR,3/4"-16, 37 Degree

UNION, 3/4-16 37 deg hyd flared tube, for use w/hyd reel or window pickup drive

2шт.

69

179206C1

STRAP

hose retainer, for use w/hyd reel lift

2шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 x 1-1/4 hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21801R1

WASHER

.281 x .734 x .056

1шт.

70

197427C1

GUIDE

STRIP, seal spacer, 815 combine, rubber type seal

1шт.

70

197524C1

STRAP

STRIP, seal spacer, 915 combine, rubber type seal

1шт.

71

197428C1

SEAL

feeder door, 815 combine, rubber type seal

1шт.

71

197525C1

SEAL

feeder door, 915 combine, rubber type seal

1шт.

72

197429C1

SEALING STRIP

seal backing, 815 combine, rubber type seal

1шт.

72

197526C1

SEALING STRIP

seal backing, 915 combine, rubber type seal

1шт.

73

197211C1

SPACER

feeder drum lower, use w/ref. nos. 77 and 78

2шт.

74

189709C1

BOLT,Hex, 1/2" - 13 x 3"

feeder drum stop, use w/ref. nos. 77 and 78

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

75

197964C1

STRIPPER

ASSY, LH

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 hex-hd type 8

1шт.

359783C1

LOCK NUT

3/8 prevailing torque type 8

1шт.

151670C1

SHIM

shim .036

1шт.

25709R1

WASHER

.41 x .81 x .09 hard

1шт.

76

197965C1

STRIPPER

ASSY, RH

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 hex-hd type 8

1шт.

359783C1

LOCK NUT

3/8 prevailing torque type 8

1шт.

151670C1

SHIM

shim .036

1шт.

25709R1

WASHER

.41 x .81 x .09 hard

1шт.

77

180527C3

ARM

ASSY, conveyor drum support LH

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8 x hex-hd cap

1шт.

78

180528C3

ARM

ASSY, conveyor drum support RH

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8 x 2 hex-hd cap

1шт.

79

179749C2

PRODUCT GRAPHIC

danger instruction

1шт.

Выбрано товаров: 221
