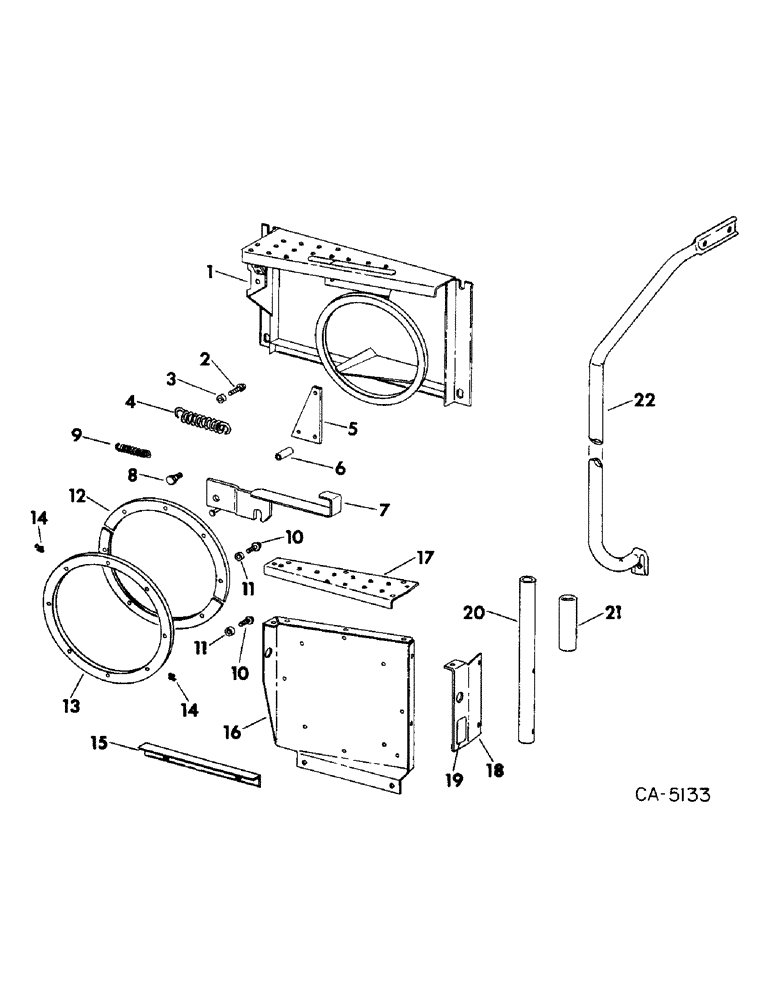

Запчасти Case IH 715 (13-03) - SUPERSTRUCTURE, OPERATORS PLATFORM EXTENSION, FOR PIVOTING LADDER (05) - SUPERSTRUCTURE

1

187548C1

EXTENSION ASSY

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8 -16 x 1 lock

1шт.

187605C1

BOLT, 1/2 x 1-1/2 hex-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

2

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

spring anchor

1шт.

484256R1

NUT, 3/8 flange lock

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

3

31044V

SPACER, spring anchor

1шт.

4

178563C1

SPRING, ladder balance

1шт.

5

187544C1

SUPPORT ASSY, spring anchor

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

6

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

.41 x .625 x 1.0

1шт.

7

187541C1

SUPPORT ASSY, ladder lock

1шт.

8

187572C1

BOLT, ladder pivot latch

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

9

165

SPRING

ladder lock

1шт.

10

20248R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

ladder lock

2шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

11

31044V

SPACER, ladder lock

2шт.

12

543357R1

CLAMP, ladder retainer

2шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

13

187535C1

RING, pivot

1шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

2шт.

15

187569C2

ANGLE, ladder support

1шт.

16

187556C1

SUPPORT, ladder bracket LH

1шт.

17

187558C1

BOLT, 5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

18

188669C92

SUPPORT, ladder RH, includes ref. no. 19

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

19

180217C1

PRODUCT GRAPHIC, caution

1шт.

20

187564C1

TUBE, ladder pivot handle

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

21

198595R1

GRIP, ladder handle

1шт.

22

196976C1

ROD, rear cab handrail

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.
