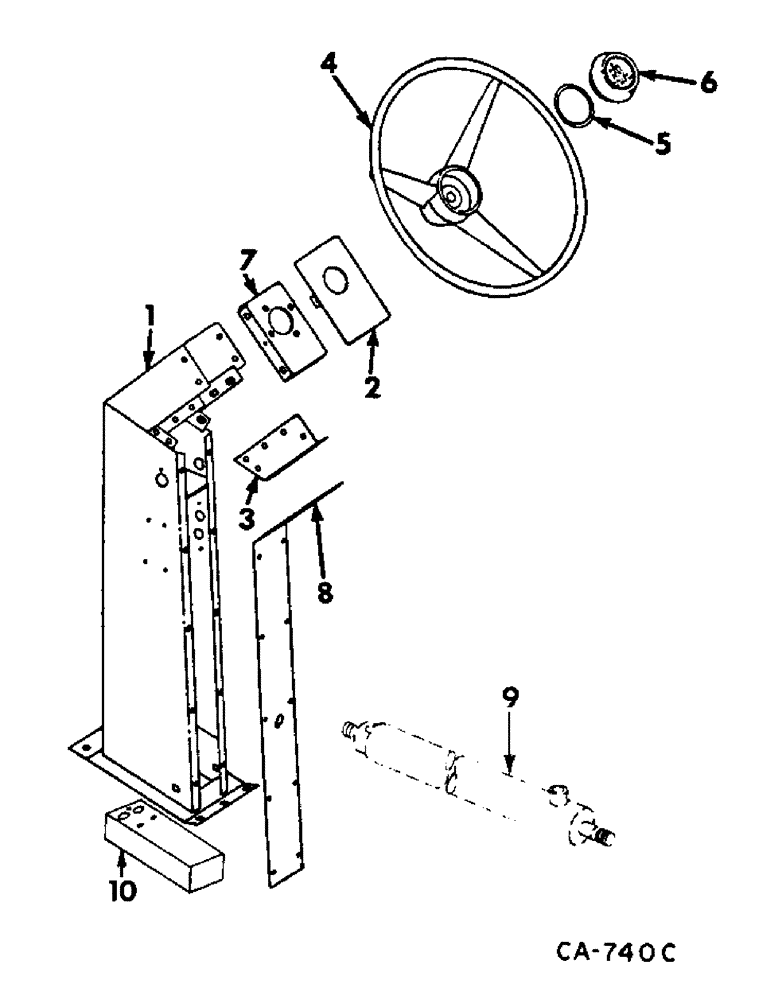

Запчасти Case IH 715 (05-01) - STEERING, STEERING COLUMN, WHEEL AND STEERING CYLINDER (04) - STEERING

1

938865R91

COLUMN ASSY, steering

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach.

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

25067R1

BOLT, 3/8 x 4-3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 GA C-Z

1шт.

2

633074R91

COVER ASSY, steering column top

1шт.

24242R1

SCREW

no. 10 x 1/2 slt-pan-hd

1шт.

3

633492R1

SIDE, steering column removable LH

1шт.

3

633493R1

SIDE, steering column removable RH

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

385156R1

WHEEL (STEERING)

WHEEL, steering

1шт.

4

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

5

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32

1шт.

6

68837C1

CAP

ASSY, steering wheel

1шт.

7

633073R11

BRACKET ASSY, steering hand pump

1шт.

8

198753C1

SUPPORT, steering column

1шт.

594791R1

NUT, 1/4 speed

1шт.

264-1478

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 1/2"

1/4 x 1/2 C-Z slt-pan-hd tapping type D

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

CYLINDER ASSY, steering, refer to group 10 under steering cylinder

1шт.

10

195942C2

SEAL, steering column base, belt drive

1шт.

10

195943C2

SEAL, steering column base, hydrostatic drive

1шт.
