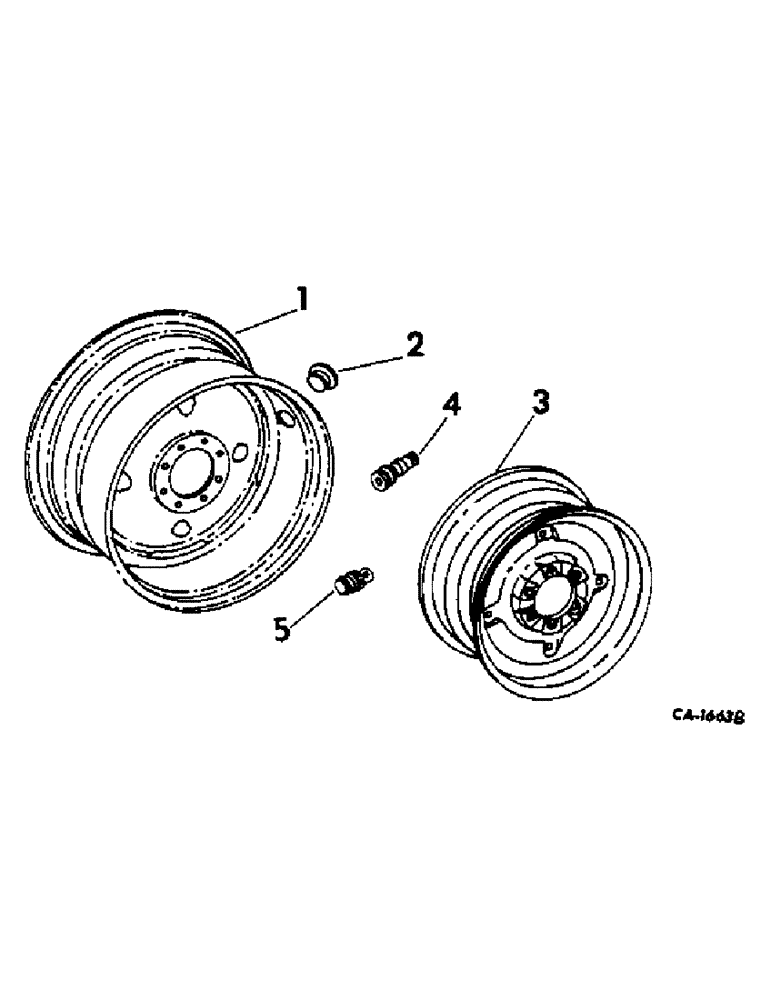

Запчасти Case IH 715 (15-01) - WHEELS AND TRACTION, MAIN AND GUIDE WHEEL RIM AND DISC Wheels & Traction

1

574804R91

RIM & DISC ASSY, DW16X26 main wheel, serial no. 26000 and below, for 18.4-26 6 ply and 8 ply main wheel tires, 8 hole pattern

2шт.

1

936440R92

RIM & DISC ASSY, DW 14 x 26 reinforced offset main wheels, serial no 26000 and below, for 18.4-26 10 ply main wheel tires, 8 hole pattern

2шт.

1

569366R92

WHEEL ASSY.

RIM & DISC ASSY, DW20X26 main wheel, serial no 26000 and below no. 26000 and below, for 23.1-26 8 ply main wheel tires, 8 hole pattern

2шт.

1

936444R91

RIM & DISC ASSY, DW20X34 DC main wheel, serial no 26000 and below, for 23.1-34 8 ply code R2 main wheel tire, 8 hole pattern

2шт.

1

188698C1

RIM AND DISC ASSY, DW 16 x 26 main wheel, serial no 26001 and above, for 18.4-26 6 ply R1, for 18.4-26 10 ply, 8 hole pattern

2шт.

1

188699C1

RIM AND DISC ASSY, DW 20 x 26 main wheel, serial no 26001 and above, for 23.1-26 8 ply, 8 hole pattern

2шт.

1

188700C1

RIM AND DISC ASSY, DW 20 x 34 main wheel, serial no 26001 and above, for 23.1-34 8 ply, 8 hole pattern

2шт.

2

383697R1

PLUG

valve hole, for tube tires

2шт.

2

417194C1

PLUG

rim hole, for tubeless tires

2шт.

3

370780R92

WHEEL

RIM AND DISC ASSY, 5.50 x 18 guide wheel, 6 hole pattern, for use W 7/50-18 4 ply guide wheel, for use W 7/50-18 6 ply guide wheel

2шт.

3

624332R91

RIM AND DISC ASSY, 5/50 x 20 guide wheel, 6 hole pattern, for 7.50-20-6 ply code F1 and F2 guide wheel tire

2шт.

3

936537R91

RIM

AND DISC ASSY, 8 x 16 guide wheel, 6 hole pattern, for 9.5-16, 12.4-16, 10-16 and 11-16 guide wheel tires

2шт.

3

174481C1

RIM

& DISC ASSY, 10-16 DC guide wheel, 6 hole pattern, for use W/12.4-16 6 ply guide wheel tires

2шт.

4

179482C1

VALVE STEM

VALVE, tubeless tire

2шт.

5

407184R1

VALVE

CORE, valve

2шт.
