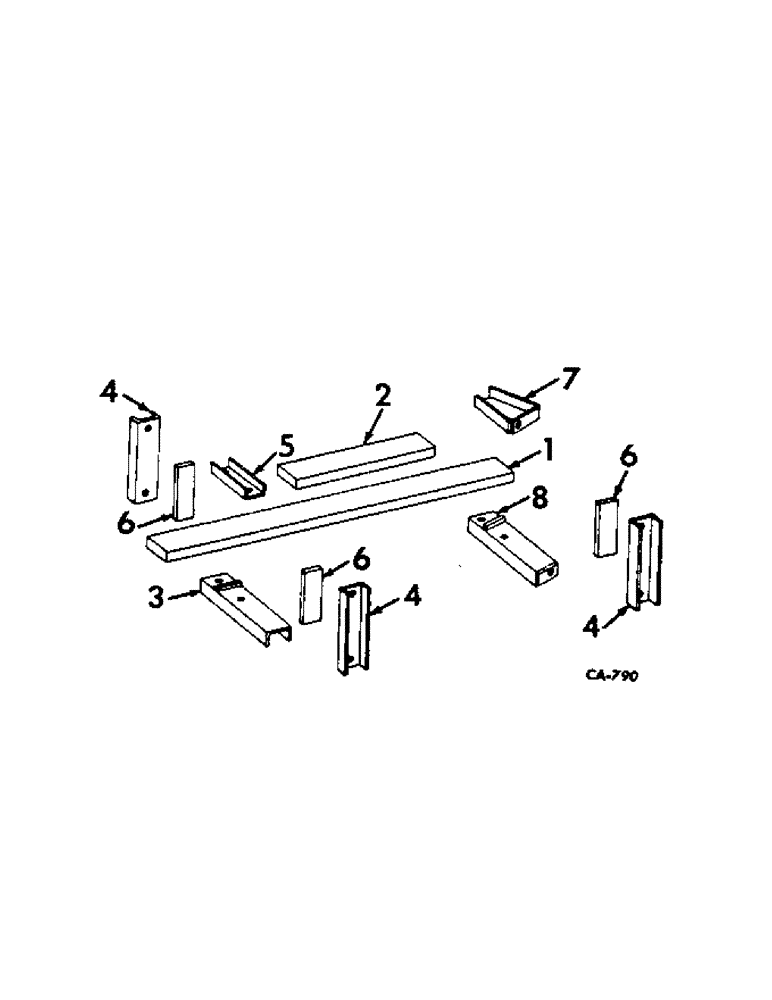

Запчасти Case IH 715 (14-05) - SUSPENSION, GUIDE WHEEL AXLE COUTERWEIGHTS, GUIDE WHEEL Suspension

1

153611C1

BAR, counter balance weight long 40 lb

8шт.

2

654330R1

BAR, counter balance weight short 16 lb

8шт.

3

654328R11

CHANNEL ASSY, counter balance weight lower

1шт.

4

654329R1

CHANNEL, counter balance weight tie

3шт.

21614R1

BOLT, 5/8 x 14 1/2 mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

5

654331R1

CHANNEL, counter balance weight upper

1шт.

19686R1

BOLT,Hex, 5/8"-11 x 7 1/2", G2

5/8 x 7-1/2 type 1

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

6

654445R1

FILLER, counter balance weight

5шт.

7

153575C91

SUPPORT ASSY, counter balance weight

1шт.

19686R1

BOLT,Hex, 5/8"-11 x 7 1/2", G2

5/8 x 7-1/2 type 1

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

8

153578C91

CHANNEL ASSY, counter balance weight right

1шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

5/8 x 2-1/2 C-Z hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z-hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.
