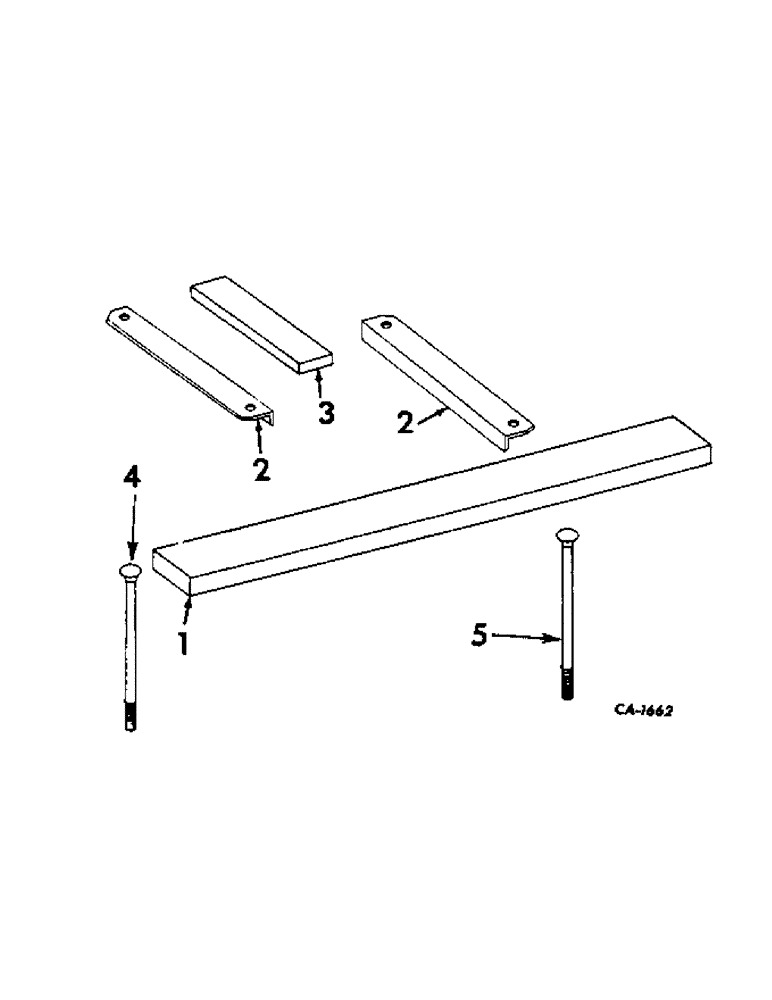

Запчасти Case IH 715 (14-05[1]) - SUSPENSION, GUIDE WHEEL SUPPORT COUNTERWEIGHTS Suspension

1

161240C1

BAR, counterweight

16шт.

2

161244C1

ANGLE, counterweight

2шт.

3

654445R1

FILLER, counterweight

4шт.

4

21283R1

BOLT,5/8" x 8", Gr 1

5/8 x 8 znd sq-nk crg

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

5

21071R1

CARRIAGE BOLT

BOLT, 5/8 x 11 znd sq-nk crg

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

Completing package for guide wheel support counterweight are used on all combines except corn and soybeans, consists of, (2), rear steering tube 171560C1, (1), rear tube bracket 172956C1, refer to group 10 under hydraulic diagrams

1шт.
