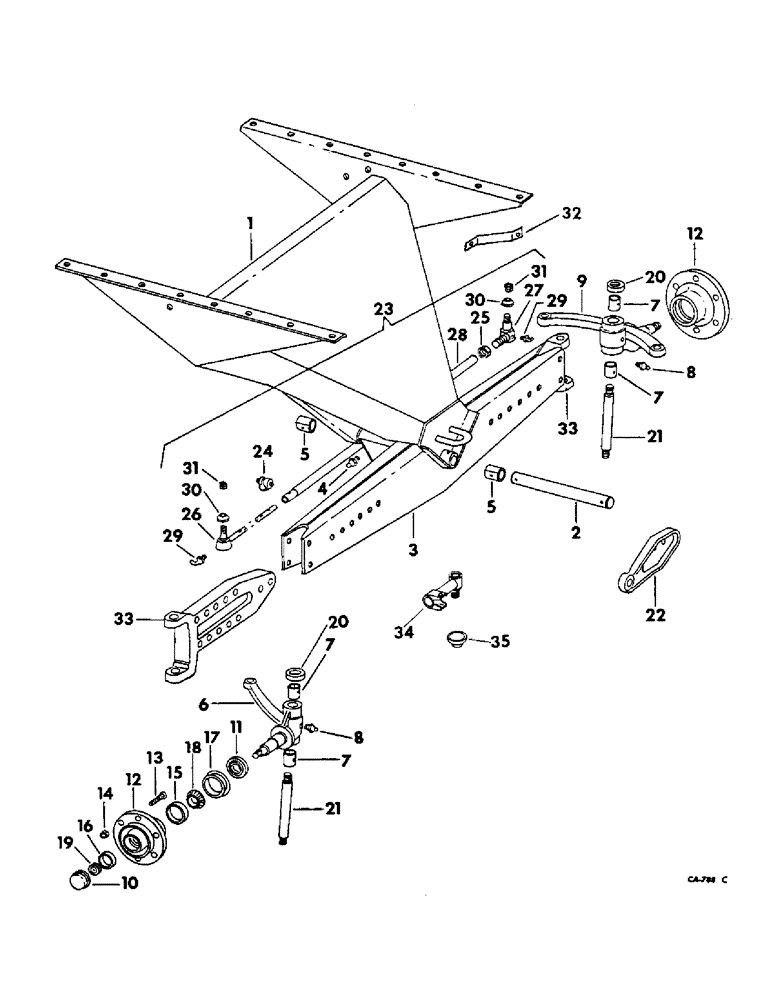

Запчасти Case IH 715 (14-01) - SUSPENSION, GUIDE WHEEL AXLE, SUPPORT AND TIE ROD, ADJUSTABLE AXLE Suspension

1

654616R92

SUPPORT ASSY, wheel axle, grain, maize, rice and windrow special

1шт.

1

172947C91

SUPPORT ASSY, guide wheel axle, wide, corn and soybean

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 hex-hd

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 type 1

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

577247R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

2

627935R1

AXLE PIN

PIN, pivot

1шт.

22050R1

WASHER

1.281 x 1.750 x .054

1шт.

3

154710C91

AXLE ASSY, guide wheel, 40 in. long, includes ref. no. 5, narrow, for rice

1шт.

3

154707C91

AXLE ASSY, guide wheel, 55 in. long, includes ref. no. 5, wide axle, not rice

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NF str lub

1шт.

5

575789R1

BUSHING

axle pivot tube

2шт.

6

654625R91

KNUCKLE

ASSY, guide wheel left, includes ref. no. 7, wide axle, not rice

1шт.

163307C1

JAM NUT

3/4-16 slt hex jam

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

6

155793C91

KNUCKLE ASSY, guide wheel left, includes ref. no. 7, narrow axle, for rice

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.

161387C1

NUT

7/8-14 slt hex jam

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

612889R1

WASHER

29/32 x 1-3/4 x 9 ga

1шт.

7

574294R1

BUSHING

spindle

4шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

9

155791C91

KNUCKLE ASSY, guide wheel right, includes ref. no. 7, narrow axle, for rice

1шт.

161387C1

NUT

7/8-14 slt hex jam

1шт.

120387C1

PIN, 1/8 x 1-1/4 C-Z cot

1шт.

612889R1

WASHER

29/32 x 1-3/4 x 9 ga

1шт.

9

154715C91

KNUCKLE

ASSY, guide wheel right, includes ref. no. 7, wide axle, not rice

1шт.

163307C1

JAM NUT

3/4-16 slt hex jam

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

10

663906R1

CAP

wheel hub, narrow axle, for rice

2шт.

10

663908R1

CAP

wheel hub, wide axle, not rice

2шт.

11

654674R91

OIL SEAL

wheel hub oil, narrow axle, for rice

2шт.

12

654661R92

HUB

W/CUP AND BOLTS, wheel, includes ref. nos. 13 thru 17, narrow axle, for rice

2шт.

12

936538R91

HUB

W/CUP AND BOLTS, wheel, includes ref nos. 13 thru 16, wide axle, not rice

2шт.

13

456267R1

BOLT,1/2" - 20 x 1 7/8"

guide wheel hub, narrow axle, for rice

12шт.

13

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

guide wheel axle hub, wide axle, not rice

12шт.

14

169228C1

NUT

guide wheel hub bolt, narrow axle, for rice

12шт.

14

453770R1

WHEEL NUT

guide wheel hub bolt, wide axle, not rice

12шт.

15

663558R1

BEARING CUP

BEARING, guide wheel hub cup inner, narror axle, for rice

2шт.

15

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Guide wheel hub inner, Wide axle, not rice

2шт.

16

651817R1

BEARING CUP

BEARING, guide wheel hub cup outer, narrow axle, for rice

2шт.

16

371883R1

BEARING CUP

Guide wheel hub outer, wide axle, not rice

2шт.

17

654675R1

RING

oil seal wear, narrow axle, for rice

2шт.

18

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING, guide wheel cone inner, narrow axle, for rice

2шт.

18

459913R91

BEARING CONE

BEARING, guide wheel cone inner, wide axle, not rice

2шт.

19

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, guide wheel cone outer, narrow axle, for rice

2шт.

19

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Guide wheel outer, wide axle, not rice

2шт.

20

73094R91

BEARING ASSY,1.135" ID x 2.094" OD x 0.625"

BEARING, spindle thrust

2шт.

21

587662R1

STUD

PIN, spindle king

2шт.

427643

SLOTTED NUT,7/8"-9, G5

NUT, 7/8 slt type 5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

21715R1

WASHER

.906 x 1.750 x 105

1шт.

22

154714C2

ANCHOR, steering cyl

1шт.

23

154705C91

ROD ASSY, guide wheel tie, includes ref. nos. 24 thru 29, narrow axle, for rice

1шт.

23

154704C91

ROD ASSY, guide wheel tie, includes ref. nos 24 thru 29, wide axle, not rice

1шт.

24

359986R1

CLAMP

tie rod tube

1шт.

25-118

NUT,1/2"-20, G5

1/2 hex

1шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, 1/2 x 2 hex-hd cap

1шт.

25

374062R1

JAM NUT

NUT, tie rod socket

1шт.

26

155232C91

END

tie rod sliding round

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

21862R1

WASHER

19/32 x 1 x 11 ga

1шт.

27

155234C91

SOCKET

END, tie rod threaded round

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

21862R1

WASHER

19/32 x 1 x 11 ga

1шт.

28

TUBE, tie rod, not serviced separately order 154704C91 and 154705C91 tie rod

1шт.

29

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

30

189466R1

BOOT

SEAL, guide wheel tie rod socket

2шт.

31

125258

SLOTTED NUT,9/16"-18, G5

2шт.

32

172956C1

BRACKET, rear steering tube support, wide axle, not rice

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

33

154713C1

YOKE, guide wheel axle

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

5/8 x 3-1/4 type 5

1шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

5/8 x 3-3/4 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

1шт.

21782R1

WASHER

656 x 1.500 x .054

1шт.

34

159807C91

END

ASSY, steering cylinder rod

2шт.

125267

NUT

5/8-nf slt type 5

1шт.

124944

JAM NUT,Hex, 5/8" - 18, Gr 5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

220501R1

WASHER, 1-9/32 x 1-3/4 x 16 ga

1шт.

35

382562R1

SEAL

steering cylinder rod end

2шт.
