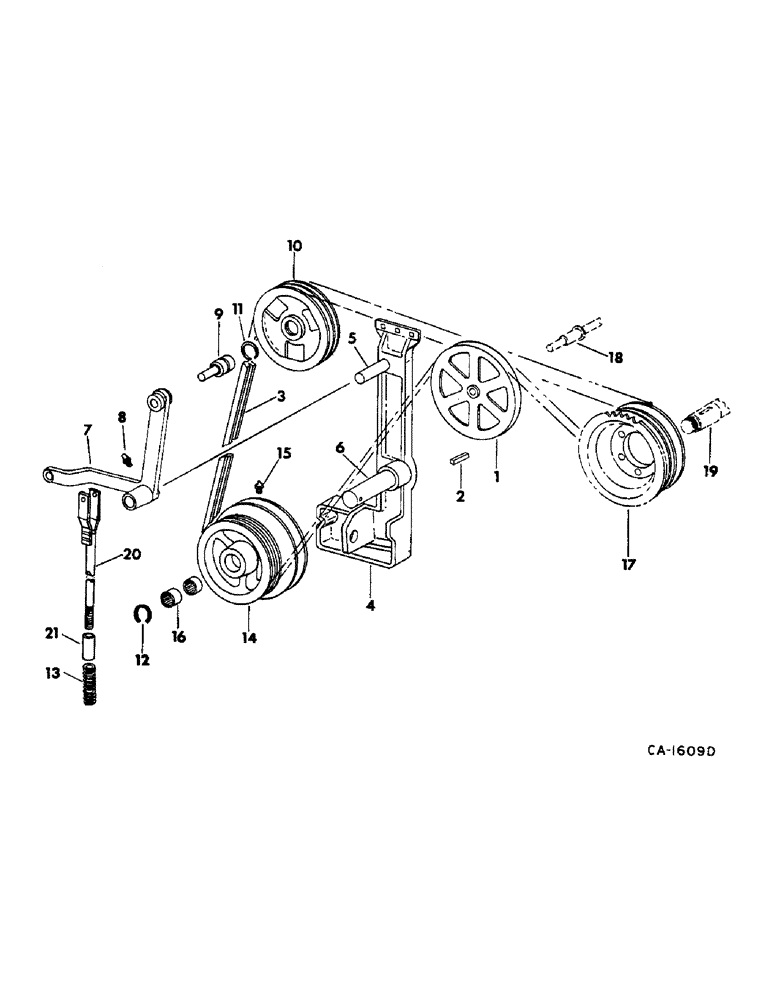

Запчасти Case IH 715 (22-03) - STRAW WALKERS, STRAW WALKER DRIVE Straw Walkers

1

170944C1

PULLEY, straw walker driven, 17 in. OD

1шт.

2

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 x 2 gib

1шт.

3

170948C1

BELT,0.490" W x 116.29" L, 2 Ribs

V-BELT , Straw walker and fan jackshaft 0.490" W x 116.29" L, 2 Ribs

1шт.

4

170946C21

SUPPORT

W/SHAFT, straw walker drive idler, includes ref. no. 5 and 6

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21496R1

WASHER

.344 x .750 x .105

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

5

170947C1

PIN

straw walker drive tightener arm pivot

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

21753R1

WASHER

.781 x 1.500 x .203 pln

1шт.

6

174462C1

SHAFT

fan drive pulley

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

551771R1

WASHER, 1-5 32 x 2-1 2 x 16 ga

1шт.

7

170950C1

ARM, straw walker drive tightener

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-27PTF str lub

1шт.

9

399402R91

BEARING

ASSY, idler pulley

1шт.

10

170945C1

PULLEY

straw walker drive idler, 7 in. OD

1шт.

11

559203R1

SNAP RING,#118, 1.260", Int, Spiral

RING, retainer

1шт.

12

359306R1

RING

retainer

2шт.

13

PO3A

SPRING

straw walker drive tightener arm rod

1шт.

14

170951C11

PULLEY

W/BEARINGS, straw walker idler and fan drive, 7 in. and 8 in. OD, includes ref. nos. 12 and 16

1шт.

15

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 PTF 45 deg lub

1шт.

16

172480C91

BEARING, NEEDLE,28.575mm ID x 38.113mm OD x 20.62mm

BEARING ASSY, fan drive pulley

2шт.

17

PULLEY AND SPROCKET, straw walker drive, 7-3 4 in. OD and 38 T, refer to group 23 under grain pan, shaker shaft and drive

1шт.

18

CRANKSHAFT, straw walker, refer to this group under straw walker

1шт.

19

SHAFT, cylinder beater, refer to group 21 under cylinder beater

1шт.

20

174906C2

ROD

ASSY, straw walker drive tightener arm spring

1шт.

271501

SOCKET

NUT, 7/16 znd hex

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

22898R1

PIN, 3/8 x 1.125 hd type 1

1шт.

188755R1

WASHER

15/32 x 1-1/2 x 11 ga

1шт.

22767R1

WASHER

1-3/32 x 1-1/2 x 11 ga C-Z

1шт.

21

190612C1

SPACER, straw walker drive spring, use w/174906C2 rod

1шт.
