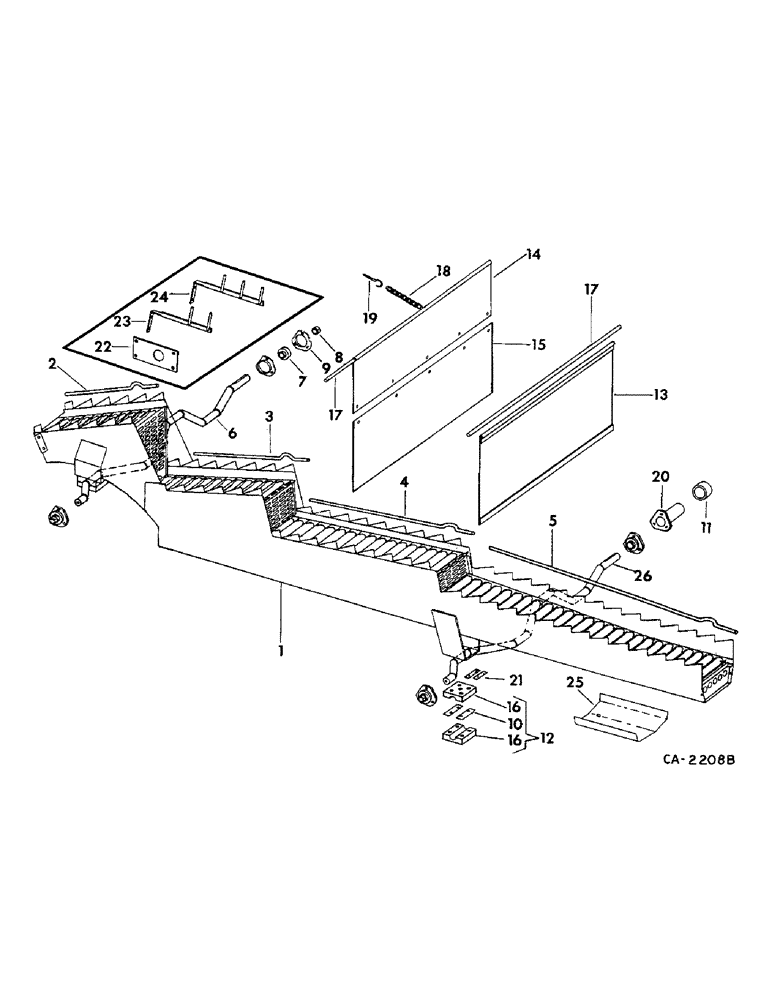

Запчасти Case IH 715 (22-01) - STRAW WALKERS, STRAW WALKER Straw Walkers

1

170935C91

RACK

WALKER ASSY, straw, includes ref. nos. 2 thru 5

4шт.

2

937299R1

ELECTRICAL WIRE

WIRE, straw walker front riser

20шт.

3

937300R1

ELECTRICAL WIRE

WIRE, straw walker front center riser

20шт.

4

937301R1

ELECTRICAL WIRE

WIRE, straw walker rear center riser

20шт.

5

170942C1

ELECTRICAL WIRE

WIRE, straw walker rear

20шт.

6

568626R1

CRANKSHAFT

straw walker

1шт.

7

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

straw walker crankshaft ball

4шт.

8

557115R11

COLLAR

COLLAR ASSY, straw walker crankshaft bearing locking

4шт.

192450

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 c/pt znp hdl/s set

1шт.

9

571425R1

FLANGED BEARING

straw walker crankshaft bearing

8шт.

10

M83629

SHIM,.020" Thk

Straw walker bearing box .020" Thk

1шт.

10

174015C1

GASKET

SHIM, straw walker bearing box .052

2шт.

18484R1

BOLT,Short NK, 5/16"-18 x 2 3/4", G2

5/16 x 2-3/4 crg type 1

1шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16-18 nylon insert lock

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga

1шт.

11

188604C1

CAP, straw walker shaft shield

1шт.

12

156207C91

STRIPPER PACKAGE

PACKAGE ASSY, straw walker bearing block, includes ref nos 10 and 16

1шт.

13

171545C1

FLAP

ASSY, straw walker rear check

1шт.

14

157183C1

VALVE BLOCK

FLAP, straw walker front rear check

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 type 1

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga

1шт.

15

157179C2

FLAP

straw walker front check lower

1шт.

16

BOX, straw walker bearing block, not serviced separately order 156207C91 package assy

1шт.

17

569108R1

ROD

straw walker check flap

2шт.

648002

KNIFE

1/8" x 3/4"

1шт.

18

H59561

CHAIN, coil check flap adjusting

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

19

H59564

PIN

check flap adjusting chain

1шт.

20

172721C1

SHIELD ASSY, straw walker shaft

1шт.

21

556301R1

RETAINER

straw walker rear

8шт.

22

588766R1

PLATE

bolting

8шт.

23

584100R92

RISER

EXTENSION ASSY, straw walker riser front

8шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

24

584102R92

RISER

EXTENSION ASSY, straw walker riser rear

16шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25

175057C1

PLATE

straw walker bottom rear, for straw chopper and windrow

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

26

568626R1

CRANKSHAFT

straw walker

1шт.
