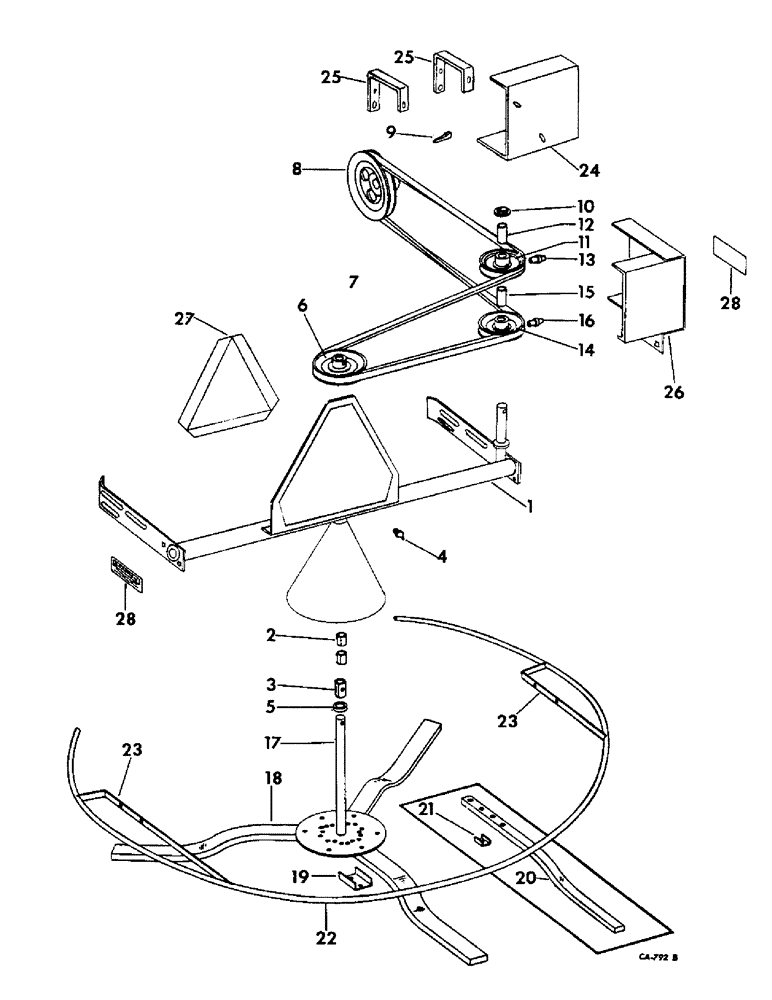

Запчасти Case IH 715 (20-15) - SEPARATOR, STRAW SPREADER Separation

1

171184C91

SUPPORT ASSY, straw spreader, includes ref. nos. 2, 3, 27 and 28

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

.406 x .734 x .056

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

22480R1

WASHER

29/32 x 1-1/2 x 22 ga C-Z

1шт.

2

551068R1

BUSHING,22.28mm ID x 25.43mm OD x 22.23mm L

straw spreader shaft upper

2шт.

3

589813R1

BUSHING

straw spreader shaft lower

1шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

5

615499C91

OIL SEAL

ASSY, straw spreader shaft oil

1шт.

6

21712K

PULLEY ASSY.

PULLEY ASSY, straw spreader driven, 5-3/4 in. OD

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21941R1

PIN, 5/16 x 1-7/8 C-Z std hd

1шт.

7

589622R1

V-BELT,0.63" W

Straw spreader drive 0.63" W

1шт.

8

936706R1

PULLEY

straw spreader drive, 6-3/4 in. OD

1шт.

9

Q3930

KEY,Gib, 5/16" Sq x 1 3/4"

5/16 x 5/16 x 1-3/4 gib

1шт.

10

20362K

COLLAR

straw spreader shaft

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

11

17876K

PULLEY ASSY.

PULLEY W/BUSHING, straw spreader drive belt idler, 5-1/8 in. OD, includes ref. no. 12

1шт.

12

18523K

BUSHING

drive belt idler pulley

1шт.

13

557159R91

LUBE NIPPLE,1/4" x .78" lg, Drive

FITTING, 1/4 drive type str lub

1шт.

14

48252K

PULLEY ASSY.

PULLEY W/BUSHING, straw spreader drive belt tightener, 4-3/4 in. OD, includes ref. no. 15

1шт.

15

18523K

BUSHING

drive belt tightener pulley

1шт.

16

557159R91

LUBE NIPPLE,1/4" x .78" lg, Drive

FITTING, 1/4 drive type str lub

1шт.

17

568191R91

ROD

SHAFT ASSY, straw spreader

1шт.

21761R1

WASHER

.906 x 1.500 x .054

1шт.

18

172994C1

BAT

BLADE, spreader heavy

3шт.

19

566475R1

CHANNEL

CLIP, spreader heavy blade

3шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20

172993C1

BAT

BLADE, spreader light

3шт.

21

565871R1

CHANNEL

CLIP, spreader light blade

3шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

22

628633R1

GUARD, straw spreader

1шт.

23

158977C1

SUPPORT, straw spreader guard

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 crg type 1

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

477589R1

WASHER

.406 x 1.500 x .105

1шт.

24

171187C1

SHIELD, drive pulley

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

106969R1

WASHER

.344 x 1.250 x .054

1шт.

25

171188C1

STRAP, shield support front

2шт.

475954R1

NUT

3/8 whiz lock

1шт.

26

171733C1

SHIELD ASSY, straw spreader drive, includes ref. no. 28

1шт.

27

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

slow moving vehicle

1шт.

28

2754446R1

PRODUCT GRAPHIC

be careful

2шт.
