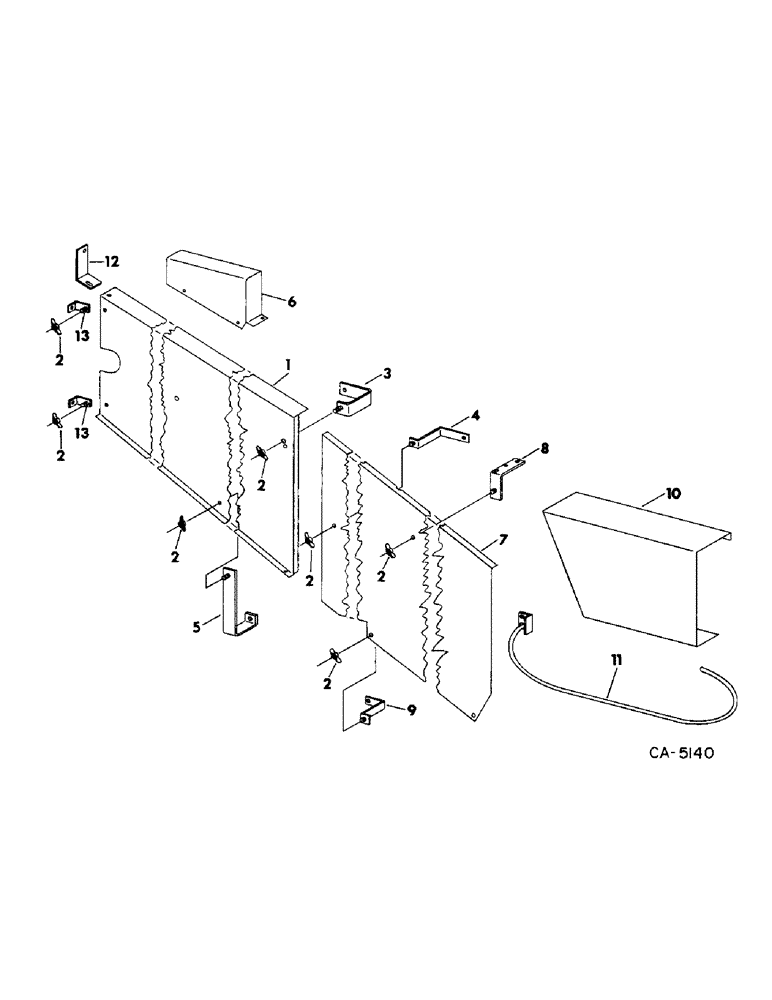

Запчасти Case IH 715 (20-14) - SEPARATOR, STRAW CHOPPER, SHIELDS Separation
№
Артикул
Название
Примечание
Количество
1
174621C2
SUPPORT
SHIELD, drive belt front, hydrostatic drive
1шт.
1
174622C2
SHIELD, drive belt front, belt drive
1шт.
2
159808C1
NUT, 5/16 wing
1шт.
3
174623C1
SUPPORT ASSY, front shield rear
1шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT, 3/8 x 1 znd sq-nk crg
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 whiz lock
1шт.
4
190985C1
SUPPORT ASSY, front shield upper
1шт.
5
174627C1
STRAP ASSY, front shield lower
1шт.
18479R1
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2
BOLT, 3/8 x 2 znd sq-nk crg
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 whiz lock
1шт.
6
190954C1
SHIELD, front idler, for hydrostatic drive
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
1шт.
7
190984C1
SHIELD, drive belt center
1шт.
8
174799C1
BAR ASSY, drive belt center shield
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 type 1
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
1шт.
9
174631C1
STRAP ASSY, center shield lower
1шт.
10
190987C1
SHIELD, drive rear
1шт.
167749C1
NUT, 5/16 strip
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
1шт.
11
174634C1
SHIELD
ASSY, straw chopper hoop
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt-truss-hd
1шт.
12
190796C1
SHIELD, PTO corner, for belt drive
1шт.
7500032
BUSHING
NUT, 5/16 wing
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
1шт.
13
188581C1
ANGLE ASSY, shield front support
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
1шт.
Выбрано товаров: 32
