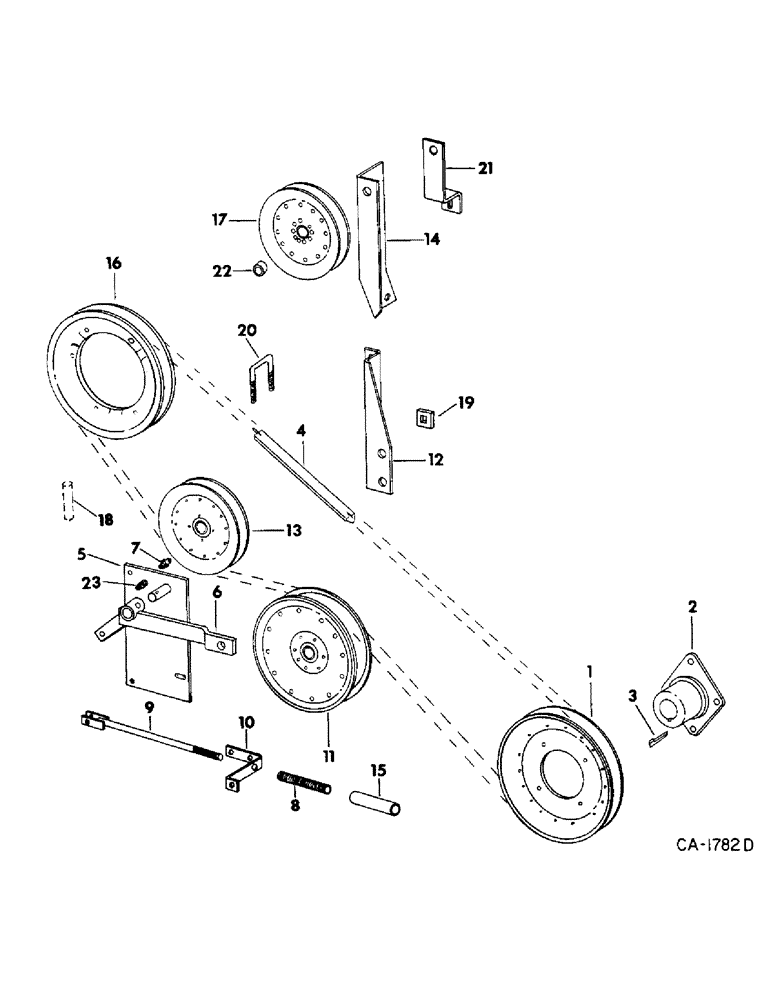

Запчасти Case IH 715 (20-12) - SEPARATOR, STRAW CHOPPER, DRIVE, SINGLE BELT Separation

1

171261C11

PULLEY

ASSY, rotor driven, 9-3/4 in OD

1шт.

2

174615C1

HUB, rotor driven pulley

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

3

Q3952

KEY,Gib, 3/8" Sq x 2 3/4"

3/8 x 2-3/4 GIB

1шт.

4

174614C2

BELT,0.879" W x 252.19" L

V-BELT , Straw chopper drive 0.879" W x 252.19" L

1шт.

5

174616C1

BRACKET ASSY, tightener arm pivot

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

619855R1

WASHER

.344 x .750 x .054

1шт.

175375R1

WASHER, .781 x 1.250 x .054

1шт.

6

175283C2

LEVER

ARM, belt tightener

1шт.

7

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 90 deg

1шт.

8

190461C1

SPRING

tightener

1шт.

9

190459C1

ROD

ASSY, tightener

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1.060 clevis

1шт.

460908R1

WASHER

.531 x 1.500 x .105

1шт.

10

190983C1

SUPPORT, tightener anchor

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

11

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

ASSY, tightener, 8-3/4 in OD

1шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 znd hex-hd mach

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 znd hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

.656 x 1.250 x .090

1шт.

12

172392C1

BRACKET, idler support

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

574097R91

PULLEY

ASSY, idler, 7-5/16 in OD

1шт.

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

5/8 x 2-1/2 znd hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

.656 x 1.250 x .090

1шт.

14

171286C2

BRACKET ASSY, idler pulley, hydrostatic drive

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

15

190462C1

TUBE,1.171" ID, 1.315" OD, 6.88" Length

tightener spring

1шт.

16

936161R1

PULLEY, drive, 10-1/4 in OD

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

17

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

ASSY, idler, 8-3/4 in OD, for hydrostatic drive

1шт.

18826R1

BOLT,Hex, 5/8"-11 x 3", G2

5/8 x 3 type 1

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 znd hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608701R1

WASHER

.656 x 1.250 x .054

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

18

TUBE, separator drive spring, refer to group 7 under separator drive control

1шт.

19

936152R1

WASHER

idler mounting bracket

1шт.

20

175225C1

BOLT,5/16" - 18 x 2.20" W x 5.50" L

U-BOLT, belt guide

1шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

5/16 jam type 5

1шт.

21

188586C1

SUPPORT, straw chopper belt, for hydrostatic drive

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

22

320993R1

SPACER,7/8" Tube x 1/2"

.657 x .875 x .50, for hydrostatic drive

2шт.

23

21347R1

ADAPTER,45 Degree, 1/4"-1/8 NPTF

1/8-27 x 1/4-28 45 deg

1шт.
