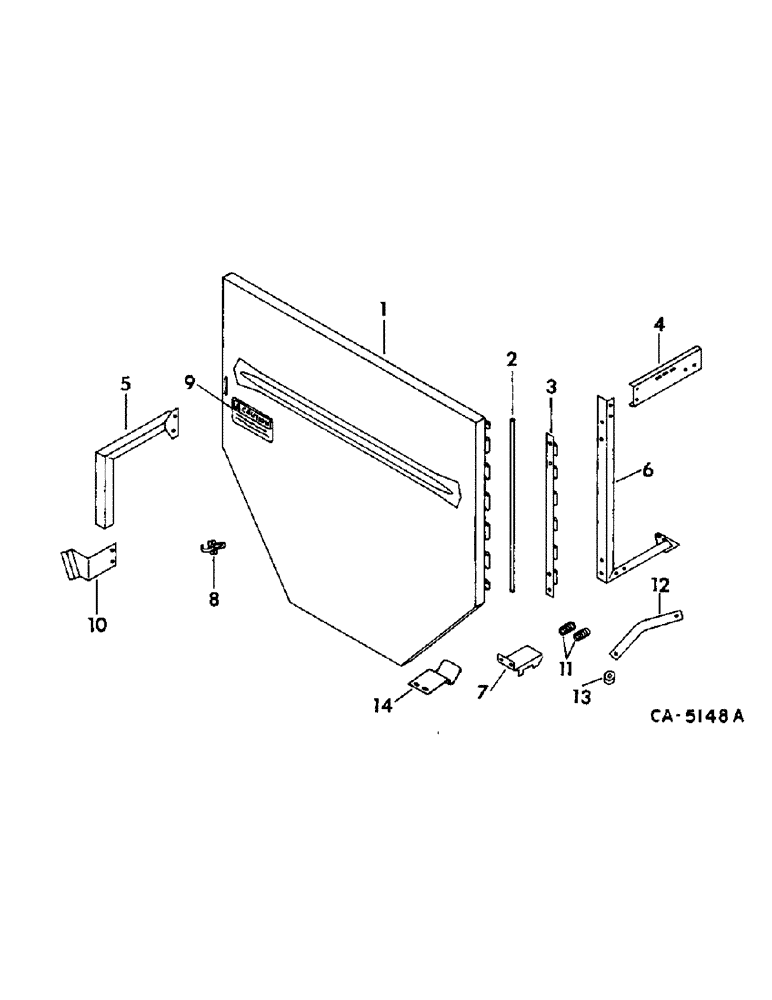

Запчасти Case IH 715 (20-05) - SEPARATOR, SEPARATOR SHIELD, LEFT Separation

1

188647C2

SHIELD ASSY, separator left, includes ref no 9

1шт.

2

188649C1

ROD, separator left shield hinge

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

3

188632C1

HINGE, separator left shield

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

4

190894C1

CHANNEL, top LH shield

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

190927C1

SUPPORT ASSY, left shield lower latch

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

6

190895C1

SUPPORT ASSY, separator left shield hinge

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

188622C1

LATCH, separator shield left, serial no 26000 and below

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 type 1

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD P/T lock type 5

1шт.

8

168481C1

LATCH ASSY.

LATCH ASSY, left shield, grain tank

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

no 10 x 5/8 C-Z slt-pan hd

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

607893R1

WASHER

.203 x .500 x .054

1шт.

9

179749C2

PRODUCT GRAPHIC

danger

1шт.

10

188648C1

BRACKET, LH shield lower latch

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

304799R1

SPRING, serial no 26000 and below

2шт.

12

188638C1

BAR, separator shield

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

24497R1

WASHER

11/32 x 1-1/4 x .105

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

13

568257R1

SPACER,1/2" Tube x 3/8"

.34 x .50 x .375 long

1шт.

14

196431C1

CATCH, separator shield, serial no 26001 and above

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21496R1

WASHER

.344 x .750 x .105

1шт.
