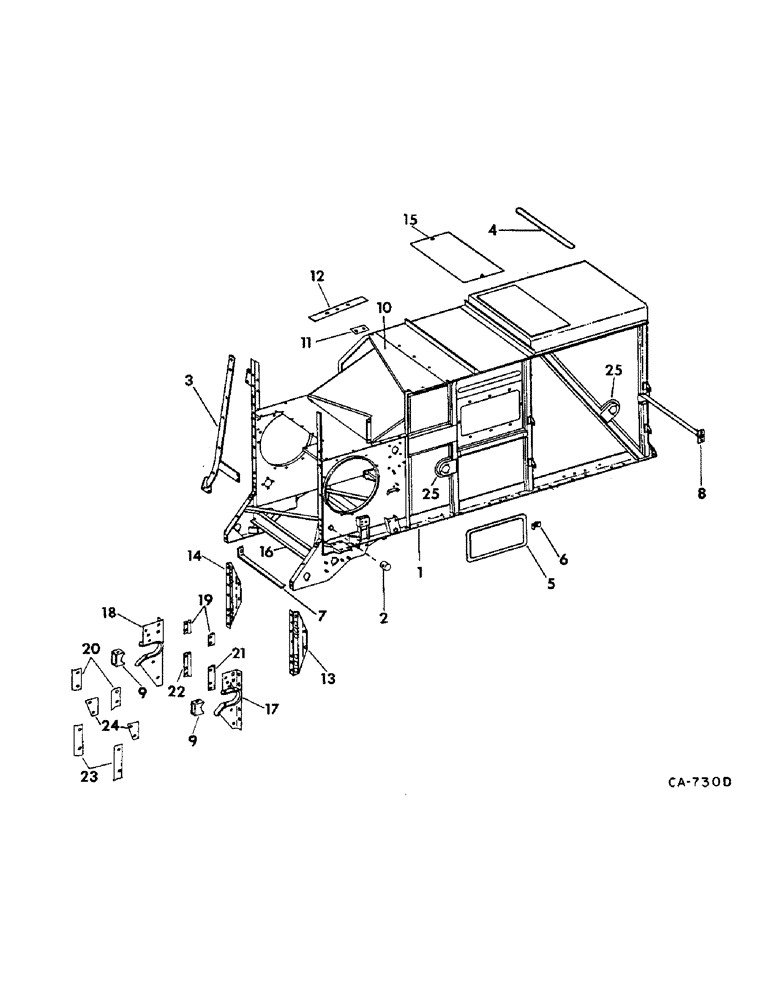

Запчасти Case IH 715 (20-01) - SEPARATOR, SEPARATOR AND RELATED PARTS Separation

1

171046C92

BODY ASSY, separator, includes ref nos 2, 16 and 25, belt drive

1шт.

1

171048C92

BODY ASSY, separator, includes ref nos 2, 16 and 25, hydrostatic drive

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

1шт.

19532R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 2

3/8 x 1/2 znd hex-hd mach

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 sq-nk crg

1шт.

19268R1

SCREW,Hex, 3/8" - 16 x 4 3/4", Gr 2

BOLT, 3/8 x 4-3/4 znd hex-hd mach

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 hex-hd

1шт.

18837R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2

3/4 x 1-3/4 znd hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

475954R1

NUT

3/8 whiz lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 hex

1шт.

21330R1

NUT,1/2"-13, G8

1/2 hex type 8

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

21434R1

NUT,5/8"-11, G8

5/8 hex type 8

1шт.

280954

NUT,3/4"-10, G5

1шт.

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

1/4 x 3/8 znp p hds mach

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

SCREW, 5/16 x 1 C-Z hex-hd tap type D

1шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2 x 1-3/4 znd hex-hd cap

1шт.

161068R1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

1шт.

432695R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

SCREW, 5/8 x 1-3/4 znd hex-hd cap

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

607895R1

WASHER

.53 x 1 x .12

1шт.

21883R1

WASHER

17/32 x 1-3/4 x 11 ga C-Z

1шт.

131165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga

1шт.

24771R1

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

138506

LOCK WASHER,Ext Tooth, 3/4"

WASHER, 3/4 ext lock

1шт.

138561

LOCK WASHER,Int Tooth, 3/4"

WASHER, 3/4 int-tooth lock

1шт.

2

157560C1

BUSHING

cylinder concave control shaft

2шт.

3

171856C2

BRACE ASSY, Serial Range: separator-axle

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 type 1

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 type 1

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 type 1

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

181416R1

SCREW, w/nylon pellet insert hex-hd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

138557

WASHER,Int Tooth, 5/8"

5/8 int lock

1шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

4

167409C1

TAPE, separator top

7шт.

5

568807R1

DOOR, straw walker inspection

2шт.

6

565449R1

CLIP

straw walker inspection door

16шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

935736R1

NUT, WING

NUT, 5/16 wing

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

589562R1

STIFFENER, transmission shift bracket lower

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

8

631201R91

TIE ASSY, separator rear cross

1шт.

9

177413C1

RETAINER

feeder pivot

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8 x 5-1/2 type 5

1шт.

10

629843R3

EXTENSION, separator top

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

24242R1

SCREW

no 10 x 1/2 slt-pan-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

629505R1

PLATE, cylinder beater cover

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

629506R1

FILLER, left front separator side

1шт.

13

171547C1

REINFORCEMENT, left front post

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

14

171548C1

REINFORCEMENT, right front post

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

15

170437C1

DOOR, separator top

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

16

629980R1

TIE, separator front cross

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

1/4 x 3/8 znp P/HDS mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

177399C1

BRACKET

ASSY, feeder pivot LH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

21330R1

NUT,1/2"-13, G8

1/2 type 8

1шт.

120657

SCREW

1/4 x 1 znp F/HDS mach

1шт.

27125R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2 x 1-1/2 pln type 8R

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

366864R1

WASHER, 1/2 ribbed lock

1шт.

18

177400C1

BRACKET ASSY, feeder pivot RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

21330R1

NUT,1/2"-13, G8

1/2 type 8

1шт.

120657

SCREW

1/4 x 1 znp F/HDS mach

1шт.

27125R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2 x 1-1/2 pln type 8R

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

366864R1

WASHER, 1/2 ribbed lock

1шт.

19

177407C1

SEAL

pivot side upper

2шт.

20

177408C1

RETAINER, pivot upper seal

2шт.

21

177409C1

SEAL

feeder pivot lower LH

1шт.

22

177410C1

SEAL

feeder pivot lower RH

1шт.

23

177411C1

RETAINER

feeder seal

2шт.

24

177412C1

STRIP, feeder pivot bracket and separator side seal, not windrow special

2шт.

25

172085C1

PLATE, straw walker bearing

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

180772C1

SUPPORT, service package, axle to separator body

1шт.
