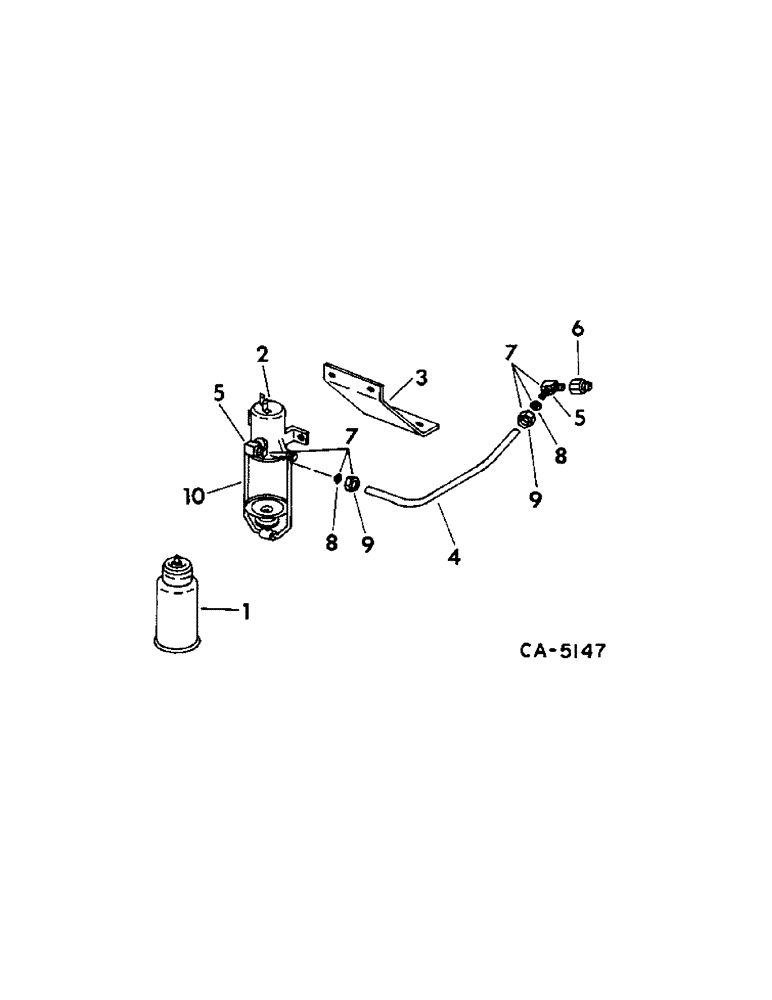

Запчасти Case IH 715 (12-09) - POWER, ETHER STARING Power

1

385064R91

FLUID

ether starting, 12 oz can

1шт.

2

121842C91

SOLENOID SWITCH

SOLENOID ASSY, ether starting

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

121747C1

BRACKET, ether injection mounting

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

60757C1

TUBE, starting fluid 1" OD, 10.55, 3.7" Length

1шт.

5

140303

ELBOW

ball sleeve

2шт.

6

269635R91

NOZZLE CAP

NOZZLE ASSY, ether starting fluid

1шт.

7

140304

ELBOW

1/8-27 90 deg sleeve tube, includes ref. nos. 5, 8 and 9

2шт.

8

121322

SLEEVE,Ball Type, 1/8" tube

tube connector

2шт.

9

121220

TUBE NUT

NUT, tube connector

2шт.

10

121851C1

RETAINER

BAIL ASSY, injector

1шт.
