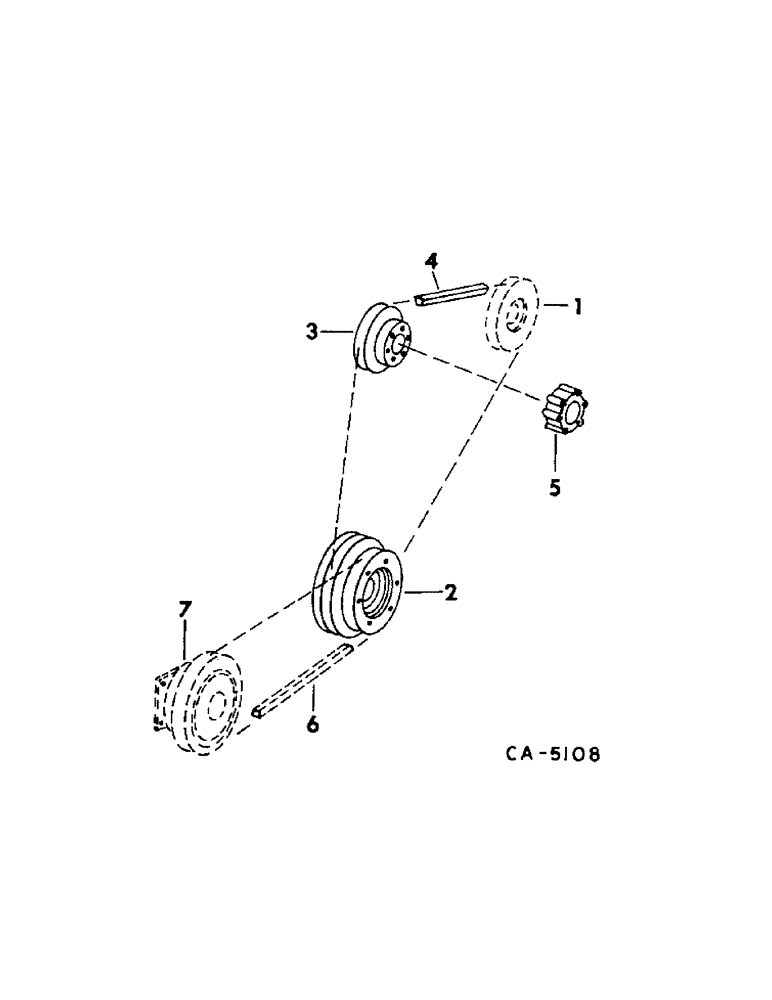

Запчасти Case IH 715 (12-09[1]) - POWER, ENGINE BELT DIAGRAM Power

1

PULLEY, alternator-generator, refer to group 8 under alternator- generator and mountings

1шт.

2

3059292R93

PULLEY

DAMPER AND PULLEY ASSY

1шт.

3

3055718R1

PULLEY

water pump

1шт.

4

395539R1

V-BELT,0.50" W x 63.00" L

Alternator-generator, Water pump and fan 0.50" W x 63.00" L

1шт.

5

396542R1

HUB

fan spacer

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

BELT, compressor drive, refer to group 13 under air conditioner

1шт.

7

CLUTCH ASSY, compressor, refer to group 13 under air conditioner

1шт.
