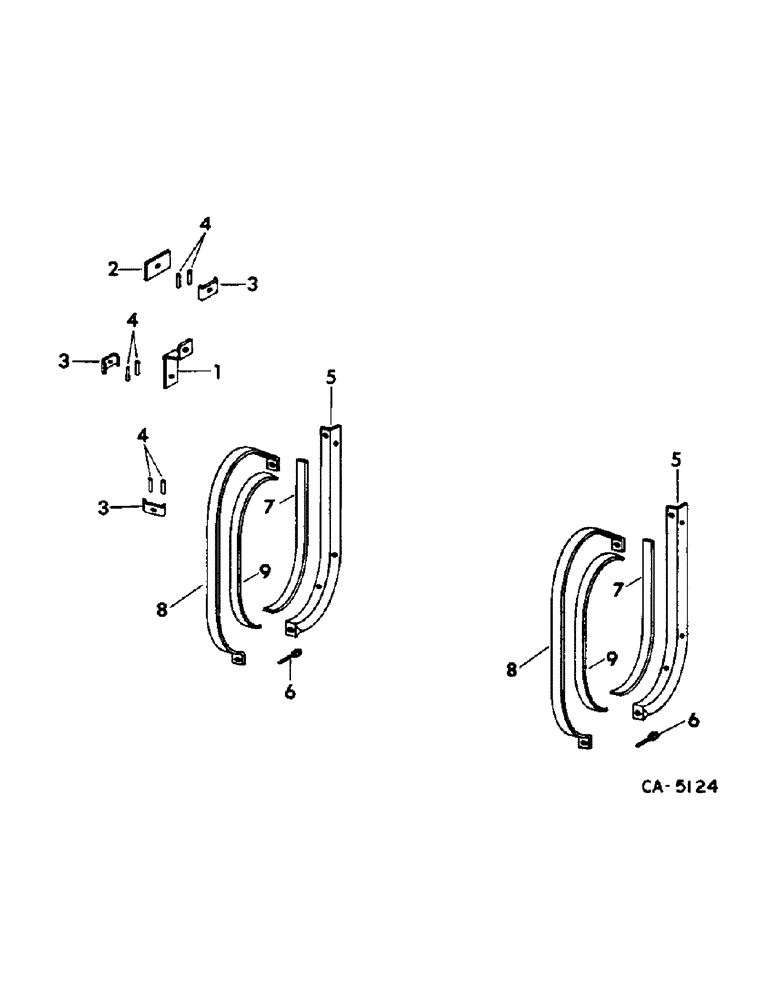

Запчасти Case IH 715 (12-08) - POWER, BRACKETS, CLAMPS AND SUPPORTS, FUEL SYSTEM Power

1

196517C1

SUPPORT TUBE

SUPPORT, fuel line

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

2

198462C1

PLATE

fuel line

1шт.

3

165602C1

CLAMP

fuel line

3шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

4

163490C1

RUBBER INSULATOR

STRIP, rubber

6шт.

5

564529R1

SUPPORT, fuel tank

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

623167R1

BOLT, special mach

2шт.

7

STRIP, liner, use 21 in. of 1-1/16 x 3 ply cotton Webbing from a 50 ft. roll marked 990538R1

2шт.

8

569462R2

STRAP, fuel tank support

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

STRIP, liner, use 36.5 in. of 1-1/16 x 3 ply cotton webbing from a 50 ft. roll marked 990538R1

1шт.
