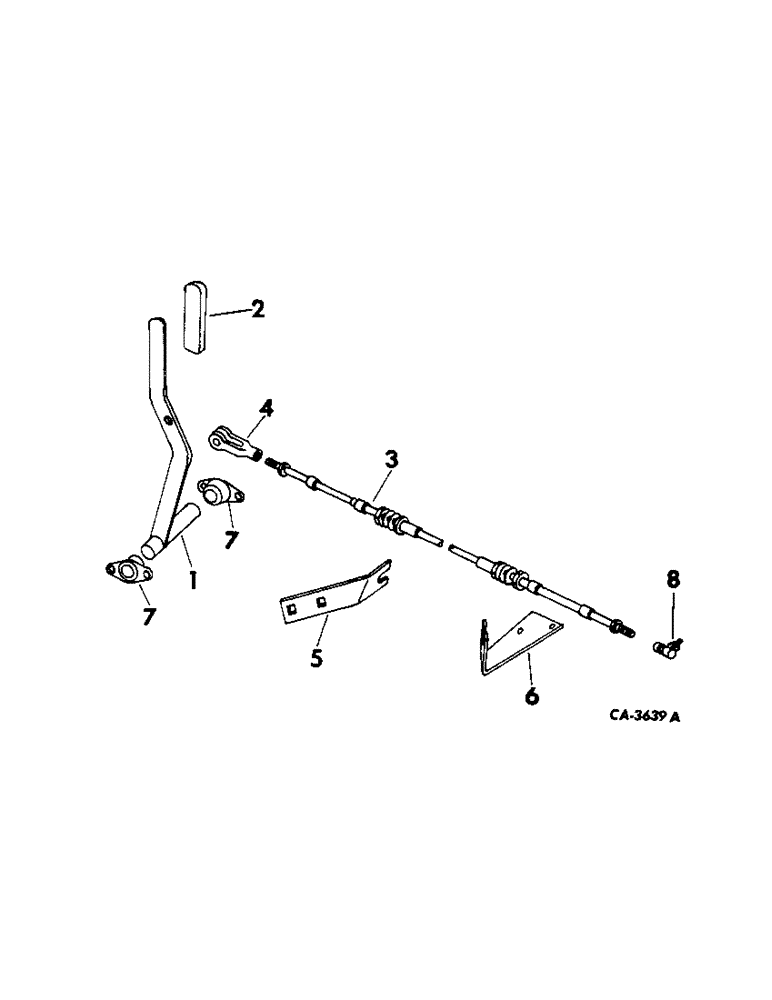

Запчасти Case IH 715 (12-06) - POWER, THROTTLE CONTROL Power

1

179331C2

LEVER ASSY, throttle control

1шт.

2

175446C1

GRIP, throttle lever

1шт.

3

179333C1

CABLE PULLING GRIP

CABLE, throttle control

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

4

356174C91

FORK

CLEVIS, w/headed pin and cotter

1шт.

5

179334C2

BRACKET, cable front

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21893R1

SCREW,Hex, 7/8"-9 x 6", G5

WASHER, .344 x 1.000 x .105

1шт.

6

190761C1

BRACKET, cable rear

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

5/16 x 3 type 5

1шт.

7

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING, lever

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

8

165288C91

JOINT

ball 3/16 x 1/4

1шт.
