(12-04) - POWER, PRE-CLEANER, PRE-SCREENER

Запчасти Case IH 715 (12-04) - POWER, PRE-CLEANER, PRE-SCREENER Power

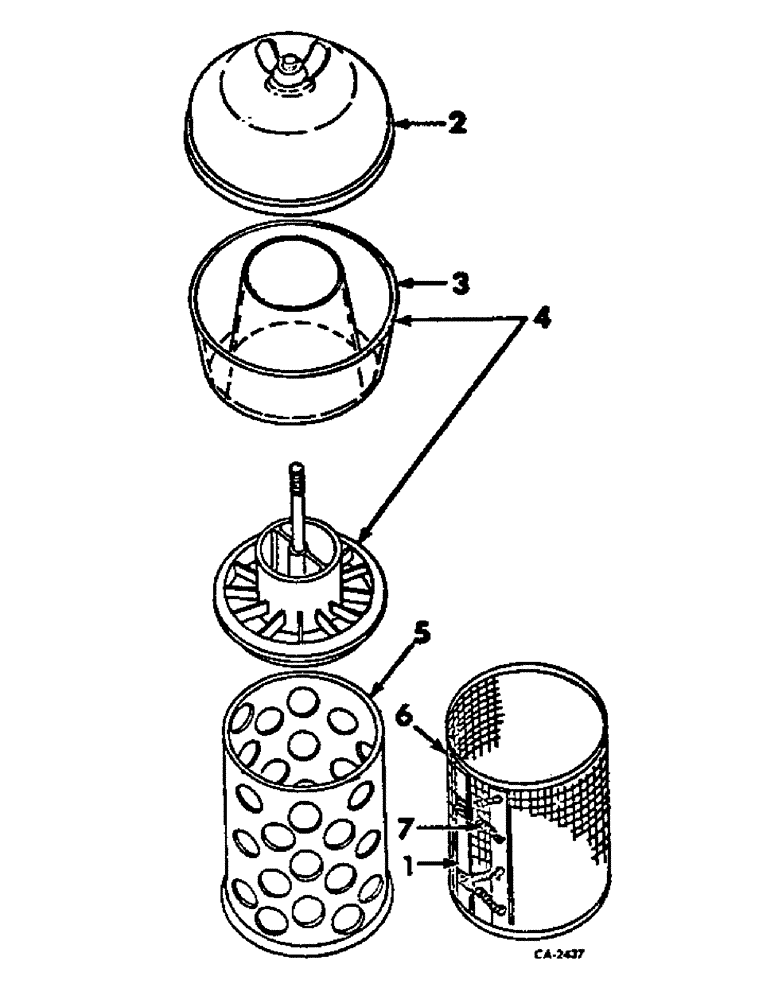

Схема запчастей Case IH 715 - (12-04) - POWER, PRE-CLEANER, PRE-SCREENER Power
1
2
7
4
6
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

384397R91

CLEANER

PRE-CLEANER, pre-screener assy

1шт.

1

353758R1

CLIP

screen lock tension spring

2шт.

2

COVER ASSY, pre-cleaner, order pre-cleaner, pre-screener 384397R91

1шт.

3

277377R1

FILTER BOWL

BODY, pre-cleaner

1шт.

4

277375R91

AIR PRE-CLEANER ASSY

PRE-CLEANER ASSY, includes ref. no. 3

1шт.

5

384606R91

BODY, pre-screener

1шт.

6

384543R91

SCREEN

W/TWO CLIPS, includes ref. nos. 1 and 7

1шт.

7

353639R1

VALVE SPRING

SPRING, screen lock tension

4шт.
