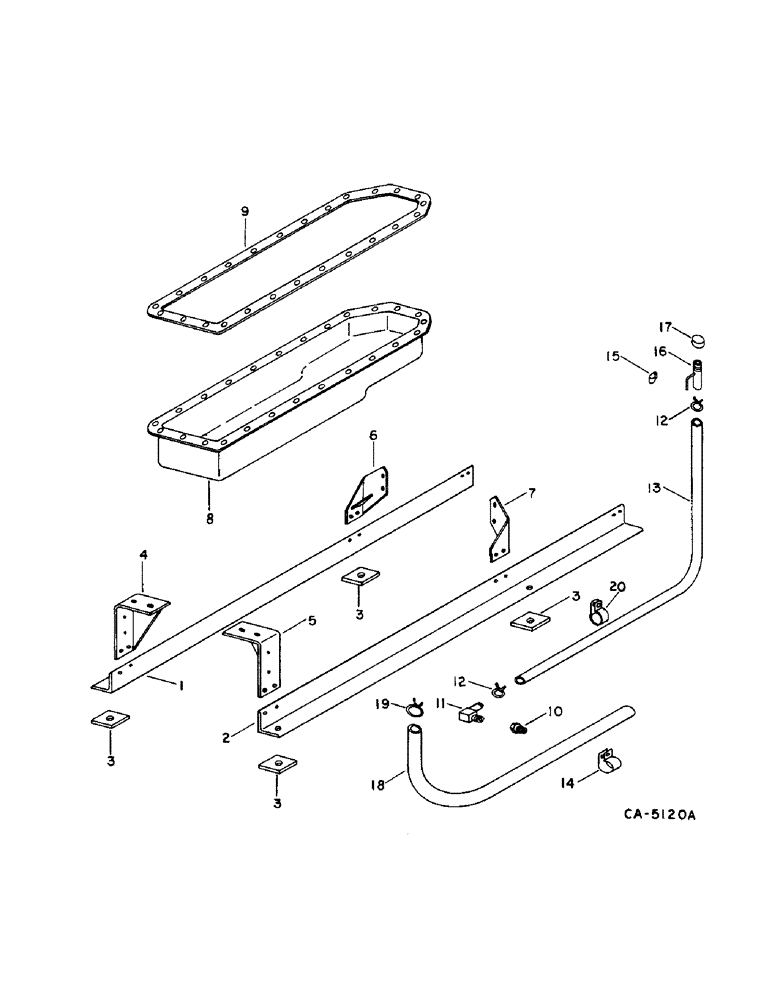

Запчасти Case IH 715 (12-03) - POWER, ENGINE SUPPORTS, CRANKCASE PAN AND CONNECTIONS Power

1

190732C1

ANGLE, engine support LH

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8 x 2-1/4 type 5

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

21793R1

WASHER

.656 x 1.250 x .164

1шт.

2

190733C1

ANGLE, engine support RH

1шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

5/8 x 2-1/4 type 5

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

21793R1

WASHER

.656 x 1.250 x .164

1шт.

3

190768C1

PAD, engine base

4шт.

4

190726C1

SUPPORT ASSY, engine rear LH

1шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1/2 x 1-1/2 type 8

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

5

190727C1

SUPPORT ASSY, engine rear RH

1шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1/2 x 1-1/2 type 8

1шт.

21330R1

NUT,1/2"-13, G8

1/2 type 8

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

6

190742C1

SUPPORT ASSY, engine front LH

1шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1/2 x 1-1/2 type 8

1шт.

525841R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

5/8 x 1-1/2 pln type 8

1шт.

21330R1

NUT,1/2"-13, G8

1/2 type 8

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

366866C1

LOCK WASHER,5/8"

5/8"

1шт.

7

190745C1

SUPPORT ASSY, engine front RH

1шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1/2 x 1-1/2 type 8

1шт.

525841R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

5/8 x 1-1/2 pln type 8

1шт.

21330R1

NUT,1/2"-13, G8

1/2 type 8

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

366866C1

LOCK WASHER,5/8"

5/8"

1шт.

8

3218786R91

PAN, ENGINE OIL

PAN ASSY, crankcase, replaces 3136008R11 pan assy

1шт.

933570R1

WASHER

DISK, spring

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

3055987R1

OIL PAN GASKET SET

oil pan, for use W/3136008R11 pan assy

1шт.

9

3055162R1

OIL PAN GASKET SET

oil pan, for use W/3218786R91 pan assy

1шт.

10

175778H1

ADAPTER

REDUCER, 1/2 to 3/8 pipe

1шт.

11

864456R1

NIPPLE, LUBE

NIPPLE, oil hose drain

1шт.

12

112700R1

HOSE CLAMP,#15, 15/16", Spring

CLAMP, oil drain hose

2шт.

13

HOSE, oil pan drain, use 50 in. of 5/8 ID from 50 ft roll marked 180719C1

1шт.

14

129355H1

NO LONGER SERVICED

CLAMP, crankcase breather hose

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

15

587501R2

CLAMP

CLIP, oil hose drain

1шт.

16

165203C91

FITTING

DRAIN ASSY, oil pan

1шт.

17

221-1524

CAP,3/8" NPT

3/8 pipe

1шт.

18

HOSE, crankcase breather, use 34 in. of 1 in. ID from bulk roll marked 364361C1

1шт.

19

681146R1

HOSE CLAMP,#22, 1 3/8", Spring

CLAMP, crankcase breather hose

1шт.

20

361656C1

CLAMP,1 3/16", Insul, 3/8" Bolt

CLIP, oil drain hose

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.
