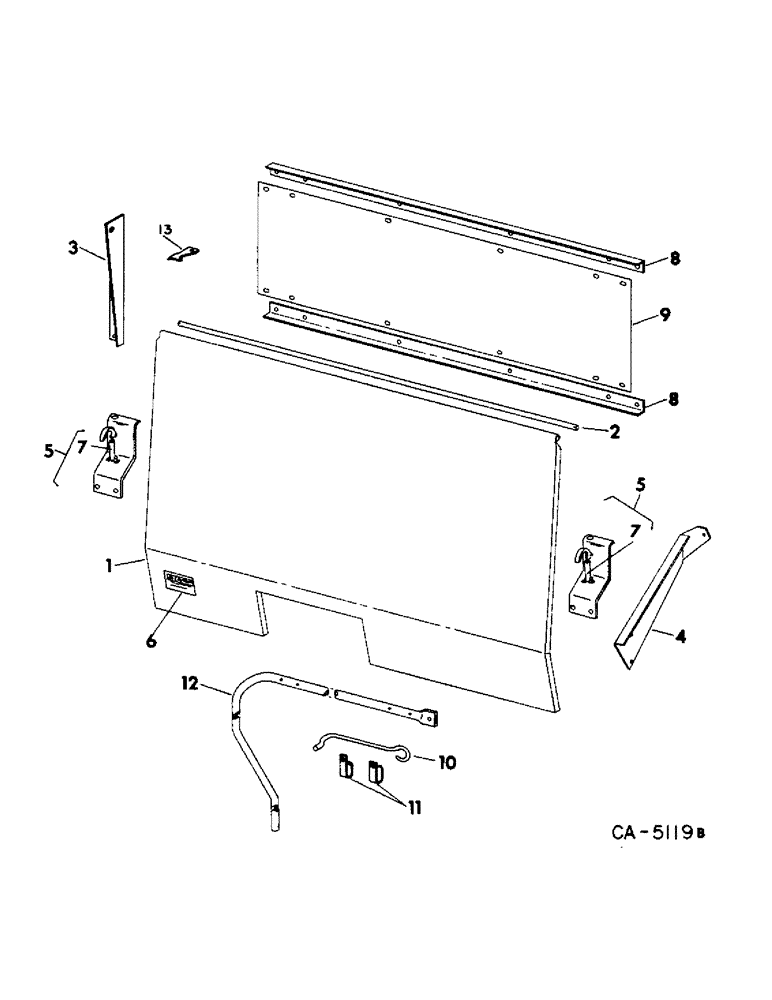

Запчасти Case IH 715 (12-02) - POWER, ENGINE COVER Power

1

188666C91

COVER

ASSY, engine, includes ref. no. 6

1шт.

2

939521R1

ROD, engine cover hinge

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21496R1

WASHER

.344 x .750 x .105

1шт.

3

190771C1

SUPPORT, engine cover left

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

4

190772C1

SUPPORT, engine cover right

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

5

179349C92

LATCH

ASSY, engine cover, includes ref. no. 7

2шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

6

188197C3

PRODUCT GRAPHIC

danger

1шт.

7

353443R91

LATCH ASSY.

LATCH, engine cover

2шт.

104068

RIVET, 3/16 x 5/8 pln but hd sol But Hd, 3/16" x 5/8"

1шт.

8

190774C1

ANGLE, engine cover seal

2шт.

9

190773C1

COVER

SEAL, engine cover

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 znp p/hds mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

1шт.

10

190725C1

ROD, engine cover

1шт.

11

400505C1

CLIP, rod

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

12

190769C1

ROD, upper service

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

172159C1

LOCK, engine cover

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 PT lock type 5

1шт.
