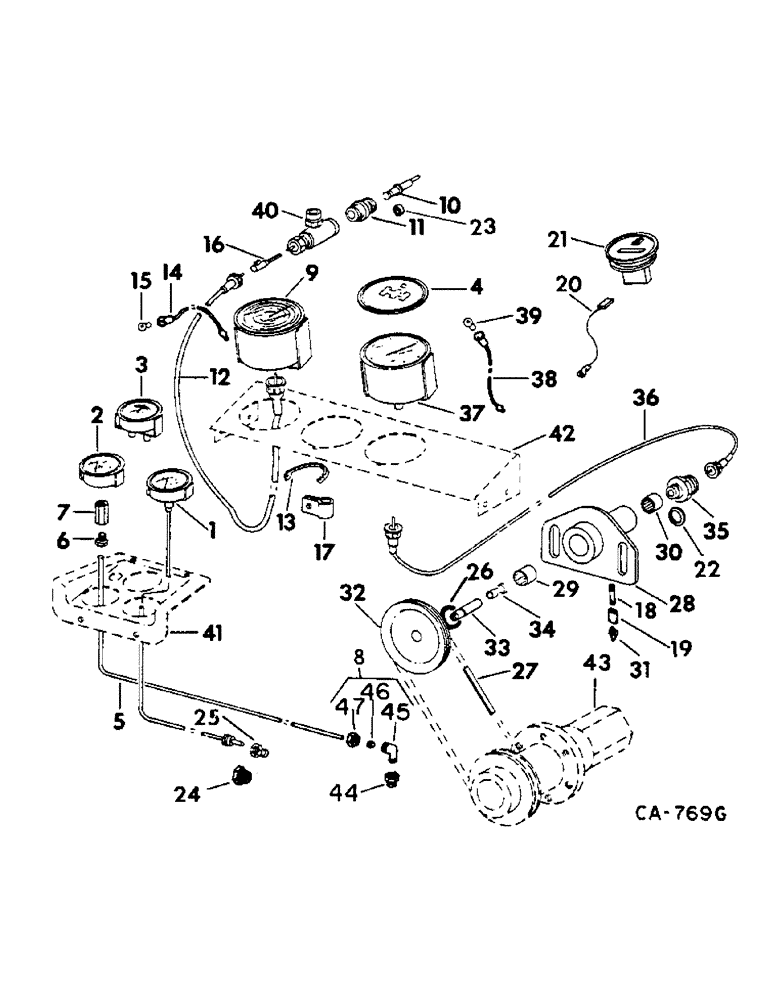

Запчасти Case IH 715 (11-01) - INSTRUMENTS, INSTRUMENT AND GAUGES Instruments

1

179404C1

GAUGE

ASSY, heat indicator

1шт.

2

393488R91

SWITCH

GAUGE ASSY, oil pressure

1шт.

3

178914C1

VOLTMETER

GAUGE ASSY, voltmeter

1шт.

4

167008C1

PLUG, instrument panel, not used when cylinder tachometer is installed

1шт.

5

TUBE, oil pressure gauge, use 124 in. of 1/8 in. OD copper tubing from 50 ft roll marked 995059R1

1шт.

6

222-500

TUBE NUT,5/16" - 24 NPT

NUT, 5 16-24 hi-duty tube fitting

2шт.

7

19715R1

HYD CONNECTOR,Fem, 5/16"-24

CONNECTOR, 1/8 NPTF fem hi-duty tube fitting

1шт.

8

140304

ELBOW

ASSY, 1/8 NPTF ball sleeve, includes ref. nos. 45 thru 47

1шт.

9

160700C91

SPEEDOMETER

ASSY

1шт.

10

673050R91

SHAFT

TIP AND WASHER ASSY, speedometer

1шт.

11

128584HX

SLEEVE

AND SEAL ASSY, speedometer

1шт.

12

172207C1

CABLE

SHAFT ASSY, speedometer flexible

1шт.

13

702093C1

CABLE TIE

CLAMP, speedometer flexible shaft

4шт.

14

372546R91

CABLE

SOCKET ASSY, instrument light

1шт.

15

A14553

BULB

instrument gauge

1шт.

16

163617C1

PIN

TIP, angle joint drive

1шт.

17

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, speedometer flexible shaft angle

1шт.

18

192042

NIPPLE, LUBE,Nipple, 1/8" NPT x 1 1/2"

NIPPLE, 1/8 x 1/5 in. pipe

1шт.

19

144067

COUPLING,1/8" NPT, Fem

1/8 pipe

1шт.

20

195786C1

CABLE, ground

1шт.

21

389985R92

METER

HOURMETER (Replaces 389952R92)

1шт.

22

336181R91

SEAL

SEAL, oil

1шт.

23

128585H

PACKING RING

SEAL, sleeve

1шт.

24

537487R1

ADAPTER

water temperature gauge

1шт.

25

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

ADAPTER, 3/4-1/2 zid reducing pipe

1шт.

26

324050R1

SNAP RING

RING, tachometer jackshaft snap

1шт.

27

171146C1

BELT,0.240" W x 44.28" L

V-BELT , Cyl speed indicator drive 0.240" W x 44.28" L

1шт.

28

171147C12

HOUSING

W/BRGS, tachometer jackshaft, includes ref. nos. 22, 29 and 30

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga

2шт.

29

336180R91

NEEDLE BEARING

ASSY, tachometer jackshaft outer

1шт.

30

336180R91

NEEDLE BEARING

ASSY, tachometer jackshaft inner

1шт.

31

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 PTF 90 deg angle

1шт.

32

164887C1

PULLEY

tachometer driven, 4 in. OD

1шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

33

173582C91

SHAFT

JACKSHAFT ASSY, tachometer drive includes ref. no. 34

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

2шт.

34

164892C1

BUSHING

drive

1шт.

35

164884C1

ADAPTER

UNION, tachometer flexible shaft

1шт.

36

164883C91

HOSE ASSY.

SHAFT ASSY, tachometer flexible

1шт.

37

159884C91

INDICATOR

TACHOMETER ASSY, cylinder

1шт.

38

170907C91

SOCKET ASSY, instrument light

1шт.

39

142450

BULB,C2R, #67, 13.5V

#67 light

1шт.

40

156233C91

JOINT ASSY, speedometer flexible shaft angle, 1. to .5 ratio, transmission w/21/34 gears rice w/23.1-26 main wheel tires

1шт.

40

160701C1

DRIVE

JOINT ASSY, speedometer flexible shaft angle, 1. to .866 ratio, transmission w/27/28 gears, grain and windrow special w/18.4-26 and 23.1-26 main wheel tires

1шт.

40

161275C1

JOINT ASSY, speedometer flexible shaft angle, 1. to .666 ratio, transmission w/21/34 gears rice w/23.1-34 main wheel tires

1шт.

41

SUPPORT, operators instrument gauges, refer to group 13 under instrument panel, cover and control sheet

1шт.

42

COVER, instrument gauge panel, refer to group 13 under instrument panel, cover and control sheet

1шт.

43

HUB, cylinder driven, refer to group 21 under cylinder drive and slip clutch

1шт.

44

444024

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

1/4-18 1/8-27 auto pipe

1шт.

45

140303

ELBOW

1/8 NPTF ball sleeve

1шт.

46

121322

SLEEVE,Ball Type, 1/8" tube

tube connector

1шт.

47

121220

TUBE NUT

NUT, 1/8 tube connector

1шт.
