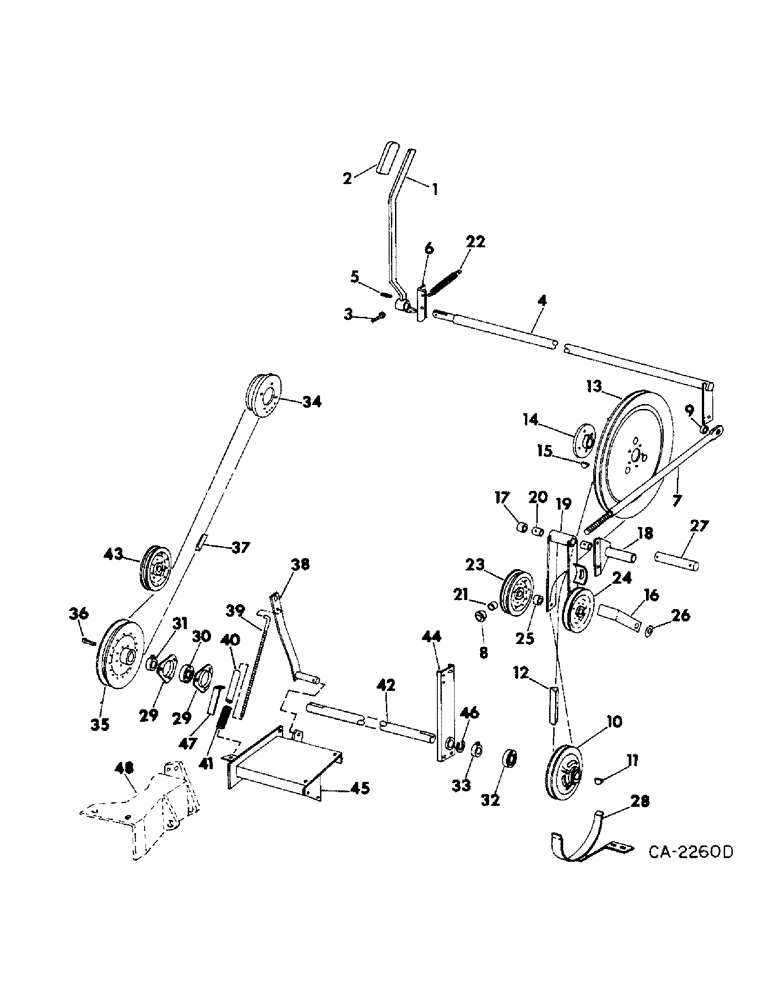

Запчасти Case IH 715 (26-12) - GRAIN TANK, GRAIN UNLOADER DRIVE Grain Tank
№
Артикул
Название
Примечание
Количество
1
190587C1
LEVER ASSY, unloader control
1шт.
2
938885R1
GRIP
unloader control lever
1шт.
3
623167R1
BOLT, unloader control lever stop nut, 3/8 type 5
1шт.
4
170997C1
PIPE ASSY, unloader front control
1шт.
137263
STRIP
3/16" x 2"
1шт.
591715R1
WASHER
1-1/32 x 1-1/2 x 16 ga
1шт.
22241R1
WASHER
1-3/32 x 1-3/4 x 16 ga
1шт.
5
Q26
KEY,1/4" Sq x 1 1/4", Par
1/4 x 1-1/4 sq parallel
1шт.
6
629561R1
BRACKET, front control pipe left
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 type 1
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
7
627909R91
PIPE ASSY, unloader control rear
1шт.
18495R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
3/8 x 1-1/4 hex-hd mach
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
619856R1
WASHER
13/32 x 1 x 16 ga
1шт.
464623R1
WASHER
21/32 x 1-1/2 x 11 ga
1шт.
8
170999C1
WASHER, pivot
1шт.
9
556587R1
SPACER
unloader control rear pipe
1шт.
10
627895R1
PULLEY
unloader drive, 6-5/8 in. OD, belt drive
1шт.
10
175542C1
PULLEY
unloader drive, 8.5 in. OD, hydrostatic drive
1шт.
11
Q3930
KEY,Gib, 5/16" Sq x 1 3/4"
5/16 x 1-3/4 gib, hydrostatic drive
1шт.
11
124554
O-RING
5/16 x 1 Woodruff hard, belt drive
1шт.
12
559064R1
V-BELT,0.88" W
Unloader drive, Belt drive 0.88" W
1шт.
12
165676C1
V-BELT,0.88" W x 153.99" L
Unloader Drive, Hydrostatic Drive 0.88" W x 153.99" L
1шт.
13
22784KA
PULLEY
ASSY, unloader driven, 21 in. OD
1шт.
14
632539R1
INTAKE ASSY
HUB, unloader driven pulley
1шт.
18474R1
BOLT,Hex, 5/16" - 18 x 1", Gr 2
5/16 x 1 type 1
1шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
15
88907
WOODRUFF KEY,#B, 5/16" x 1", HT
5/16 x 1 Woodruff hard
1шт.
16
629542R1
SUPPORT, retainer
1шт.
17
583345R1
SPACER, tightener pulley pivot shaft
1шт.
18
174433C1
SHAFT ASSY, pivot idler
1шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT, 3/8 x 1 crg type 1
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
591715R1
WASHER
1.031 x 1.500 x .054
1шт.
19
171000C1
ARM ASSY, unloader tightener, includes ref. no. 20
1шт.
20
559317R1
BUSHING,25.55mm ID x 28.6mm OD x 38.1mm L
2шт.
21
576015R1
SPACER,7/8" Tube x 11/16"
control rod pivot arm
1шт.
22
580107R1
SPRING
unloader lever return
1шт.
18481R1
COTTER PIN,3/16" x 1"
PIN, SPLIT (COTTER), 3/16" x 1"
1шт.
23
570265R91
PULLEY
ASSY, tightener inner, 7 in. OD
1шт.
24
154742C91
PULLEY
ASSY, tightener outer, 7 in. OD, optional w/180168C92
1шт.
24
180168C92
PULLEY
ASSY, tightener, 7 in. OD, optional w/154742C91
1шт.
19678R1
BOLT,Hex, 5/8" - 11 x 5 1/4", Gr 2
5/8 x 5-1/4 hex-hd mach
1шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8 hex
1шт.
273312
BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5
SCREW, 5/8 x 5-1/2 hex-hd cap
1шт.
589068R1
WASHER
.656 x 1.250 x .090
1шт.
608701R1
WASHER
.656 x 1.250 x .054
1шт.
25
575098R1
SPACER,16.7mm ID x 22.23mm OD x 15.9mm L
tightener pulley
1шт.
26
574237R1
WASHER, tightener pulley shaft
1шт.
27
631325R1
SHAFT, grain tank unloader drive idler pivot
1шт.
137258
COTTER PIN
3/16" x 1 3/4"
1шт.
591715R1
WASHER
1-1/32 x 1-1/2 x 16 ga
1шт.
28
171001C1
GUIDE ASSY, unloader belt lower, belt drive
1шт.
28
171004C1
GUIDE ASSY, unloader belt lower, hydrostatic drive
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 type 1
1шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
29
571425R1
FLANGED BEARING
unloader jackshaft LH bearing, hydrostatic drive
2шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT, 3/8 x 1 crg type 1
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
30
571334R91
BALL BEARING,1.125" ID x 62 mm OD x 1.29"
unloader jackshaft LH, hydrostatic drive
1шт.
31
557115R11
COLLAR
COLLAR W/SET SCREW, locking, hydrostatic drive
1шт.
32
618210R91
BEARING
jackshaft RH, hydrostatic drive
1шт.
33
557115R11
COLLAR
COLLAR W/SET SCREW, locking, hydrostatic drive
1шт.
34
150624C1
PULLEY
unloader jackshaft drive, 5-3/4 in. OD, hydrostatic drive
1шт.
NLS
NO LONGER SERVICED
SCREW, 7/16 x 2-1/4 hex-hd cap
1шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
1шт.
35
175544C1
PULLEY
unloader jackshaft driven, 11 in. OD, hydrostatic drive
1шт.
36
Q3930
KEY,Gib, 5/16" Sq x 1 3/4"
5/16 x 1-3/4 gib, hydrostatic drive
1шт.
37
179317C2
BELT,0.630" W x 162.35" L
V-BELT , Unloader jackshaft drive, Hydrostatic drive 0.630" W x 162.35" L
1шт.
38
150677C91
ARM ASSY, unloader jackshaft drive belt tightener pulley, hydrostatic drive
1шт.
20340R1
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1 1/2"
1шт.
178375R1
WASHER
25.32 x 1-1/4 x 16 ga
1шт.
39
150681C1
ROD, unloader jackshaft drive belt tightener pulley adjusting, hydrostatic drive
1шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
137185
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
1шт.
619856R1
WASHER
13/32 x 1 x 16 ga
1шт.
614452R1
WASHER
13/32 x 1-1/4 x 11 ga
1шт.
589068R1
WASHER
.656 x 1.250 x .090
1шт.
40
150682C1
SPACER, unloader jackshaft drive belt tightener pulley adjusting rod, hydrostatic drive
1шт.
41
V679
VALVE SPRING
SPRING, unloader jackshaft drive belt tightener pulley adjusting rod, hydrostatic drive
1шт.
42
175543C1
SHAFT
JACKSHAFT, grain tank unloader, hydrostatic drive
1шт.
20340R1
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1 1/2"
1шт.
21716R1
WASHER
1.156 x 1.750 x .054
1шт.
43
570265R91
PULLEY
ASSY, unloader jackshaft drive belt tightener, 7 in. OD, hydrostatic drive
1шт.
18824R1
BOLT,Hex, 5/8"-11 x 2 1/2", G2
5/8 x 2-1/2 hex-hd
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
589068R1
WASHER
.656 x 1.250 x .090
1шт.
44
171015C2
BRACE ASSY, propulsion jackshaft RH bearing
1шт.
184508R1
BOLT, 3/8 x 3/4 crg type 1
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 type 1
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
45
150671C91
BRACKET ASSY, unloader jackshaft left, hydrostatic drive
1шт.
18474R1
BOLT,Hex, 5/16" - 18 x 1", Gr 2
5/16 x 1 type 1
1шт.
17140R1
CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd
BOLT, 1/2 x 1-1/4 crg type 1
1шт.
120376
NUT,5/16"-18, G5
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
46
360936R1
RING
unloader jackshaft RH bearing snap, hydrostatic drive
1шт.
47
188662C1
GAGE, unloader drive spring, hydrostatic drive
1шт.
48
HANGER, propulsion jackshaft and fan drive, refer to group 7 under propulsion drive
1шт.
Выбрано товаров: 110
