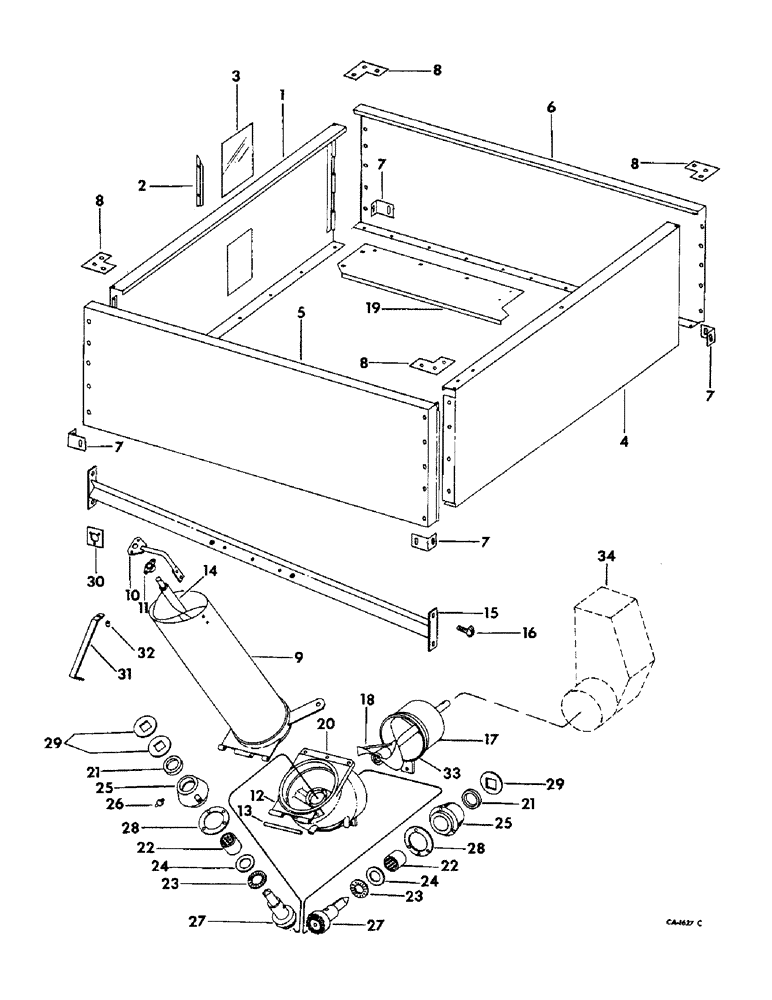

Запчасти Case IH 715 (26-08) - GRAIN TANK, GRAIN TANK EXTENSION WITH INCLINED DELIVERY, 19 INCHES HIGH Grain Tank

1

173235C1

SIDE ASSY, grain tank extension front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

2

150551C1

RETAINER, window

1шт.

20716R1

SCREW,Sl Pan Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znp p/hds mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

563567R2

WINDOW, grain tank extension

1шт.

4

173238C1

SIDE, grain tank extension rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

5

173231C1

SIDE, grain tank extension LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

6

173232C2

SIDE ASSY.

SIDE, grain tank extension RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

7

173239C1

BRACKET, grain tank extension corner

4шт.

8

173240C1

STIFFENER, grain tank extension corner

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

9

159856C91

ELEVATOR TUBE

TUBE ASSY, grain upper elevator

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

10

939591R91

SUPPORT

ASSY, grain upper elevator auger

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING, grain elevator upper auger

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

939579R91

HINGE ASSY, grain upper elevator tube

1шт.

12871R1

BOLT, 5/16 x 1 crg type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

939578R1

PIN, grain upper elevator tube hinge

1шт.

14

939582R91

AUGER

ASSY, grain upper delivery

1шт.

21997R1

LOCK PIN,1/4" x 1", Slotted

Pin, 1/4" x 1", Slotted

1шт.

15

939575R91

SUPPORT ASSY, grain upper delivery

1шт.

16

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

grain upper delivery support

4шт.

475954R1

NUT

3/8 whiz lock

1шт.

17

939568R91

TUBE

ASSY, grain upper delivery, includes ref. no. 33

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

18800R1

BOLT, 7/16 x 2-1/2 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

.344 x .750 x .054

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

1шт.

18

939564R91

AUGER

ASSY, grain tank delivery lower

1шт.

19

939586R1

COVER, grain tank

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 crg type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20

606707R1

ELBOW, grain upper elevator

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21

607145R91

OIL SEAL

grain upper elevator bevel gear oil

2шт.

22

607148R91

ROLLER BEARING,1.375" ID x 1.7505" OD x 1"

grain upper elevator bevel gear needle

2шт.

23

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

grain upper elevator bevel gear thrust needle

2шт.

24

607147R1

WASHER

RACE, grain upper elevator bevel gear thrust bearing

2шт.

25

606709R1

HUB

COLLAR, grain upper elevator bevel gear locking

2шт.

139011

SET SCREW,Hex Soc, 1/4"-28 x 3/8"

SCREW, 1/4-28 x 3/8 hex-soc-hd set

1шт.

20483R1

HEX SOC SCREW,5/16"-18 x 3/4"

SCREW, 5/16 x 3/4 h/shd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

26

16982R91

FITTING

1/4-28 NF str lub

1шт.

27

606710R1

GEAR

grain upper elevator bevel

2шт.

28

606711R1

GASKET

SHIM, bevel gear locking collar

6шт.

28

936654R1

GASKET,0.51mm Thk

SHIM, bevel gear locking

2шт.

29

606712R1

SQ HOLE WASHER

grain upper elevator and distributor augers

3шт.

30

626582R1

COVER

grain tank leveling auger bearing opening

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 crg type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

31

151252C1

BRACE, grain upper elevator support

1шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 znd hex-hd mach

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

178372R1

WASHER

.406 x 1.250 x .054

1шт.

32

23323H

SPACER,1/4" Pipe x 1/2"

1/4 x 1/2 std pipe

1шт.

33

939563R1

RING, grain tank leveling auger

1шт.

106900

RIVET,Truss Hd, 1/4" x 3/4"

1шт.

34

TUBE ASSY, leveling auger, refer to this group under grain tank and supports

1шт.
