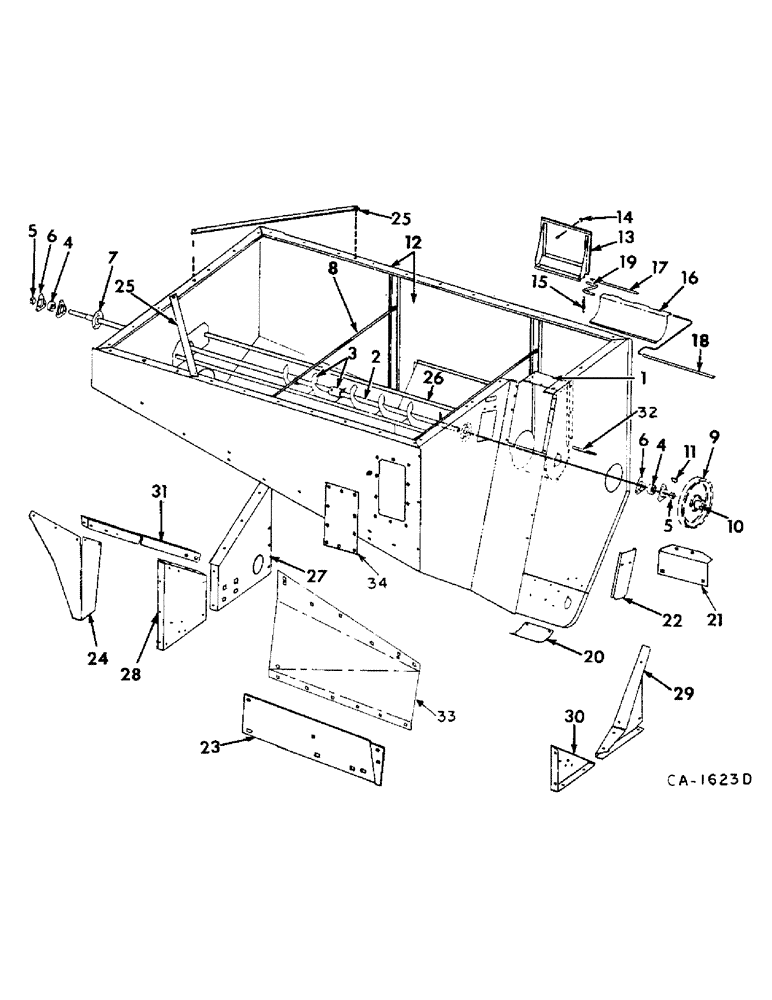

Запчасти Case IH 715 (26-01) - GRAIN TANK, GRAIN TANK AND SUPPORTS Grain Tank

1

629648R91

TUBE

ASSY, leveling auger, grain, windrow special and edible bean

1шт.

2

627117R91

AUGER

ASSY, leveling, grain, windrow special and edible bean

1шт.

3

627122R91

AUGER

EXTENSION ASSY, leveling auger, grain, windrow special and edible bean

1шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

7/16 jam type 5

1шт.

21228R1

SCREW, 7/16 x 3/4 znp sq-hd cup-pt

1шт.

4

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING, grain tank leveling auger

2шт.

5

455102R21

COLLAR

W/SET SCREW, locking

2шт.

6

571424R1

FLANGE

leveling auger bearing

4шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

606695R1

COVER

SHIELD, leveling auger bearing

1шт.

8

631370R1

ROD, support

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

9

PULLEY ASSY, leveling auger driven, refer to group 25 under elevator drive

1шт.

10

HUB, leveling auger driven pulley, refer to group 25 under elevator drive

1шт.

11

113782

KEY

1/4 x 1 Woodruff

1шт.

12

171254C3

TANK ASSY, grain, includes ref. nos. 13 thru 19

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8 x 1 hex-hd

1шт.

21721R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 3/4", Gr 2

BOLT, 1/2 x 3/4 crg type 1

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

475954R1

NUT

3/8 C-Z hex whiz lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/8 C-Z slt-truss-hd

1шт.

21126R1

SCREW, 3/8 x 5/8 C-Z slt-pan-hd mach

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

13

633649R91

DOOR ASSY, tailings inspection, includes ref. no. 14

1шт.

633712R1

RIVET, inspection door

1шт.

14

587056R1

KNOB, inspection door

1шт.

15

Z1259

SPRING

tailings inspection door

1шт.

18628R1

BOLT,Short NK, 1/4"-20 x 1 1/4", G2

tailings inspection door

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

1шт.

16

633668R91

VALVE ASSY, tailings delivery

1шт.

17

634523R1

ROD, inspection door hinge

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

18

633233R1

ROD, valve

1шт.

19

633230R1

ROD, auger valve control

1шт.

20

627116R1

COVER

DOOR, clean out

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

clean out

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

21

627125R1

DOOR, grain elevator tank

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 crg type 1

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

445117

DIODE

1/4 PHC style 1

1шт.

22

629662R1

DOOR GRAIN, elevator head shaft bearing

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 crg type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

23

190676C1

SUPPORT, left rear

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

24

190706C1

BRACE, left support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

25

939602R1

BRACE, grain tank

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

26

633463R1

PIPE, support rod

2шт.

27

172279C1

BRACKET ASSY, left front support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

28

629495R1

BRACKET, left rear support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

29

170987C11

BRACKET ASSY, right front support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

30

629497R1

BRACKET, right rear support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

31

173573C1

SUPPORT ASSY, grain tank bottom

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

172487

SCREW,Hex, 3/8" - 16 x 1"

3/8 x 1 h/hd tap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

32

627128R1

ROD, side support

2шт.

33

937926R2

SUPPORT, rear

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

34

179347C1

DOOR, grain tank rear right

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.
