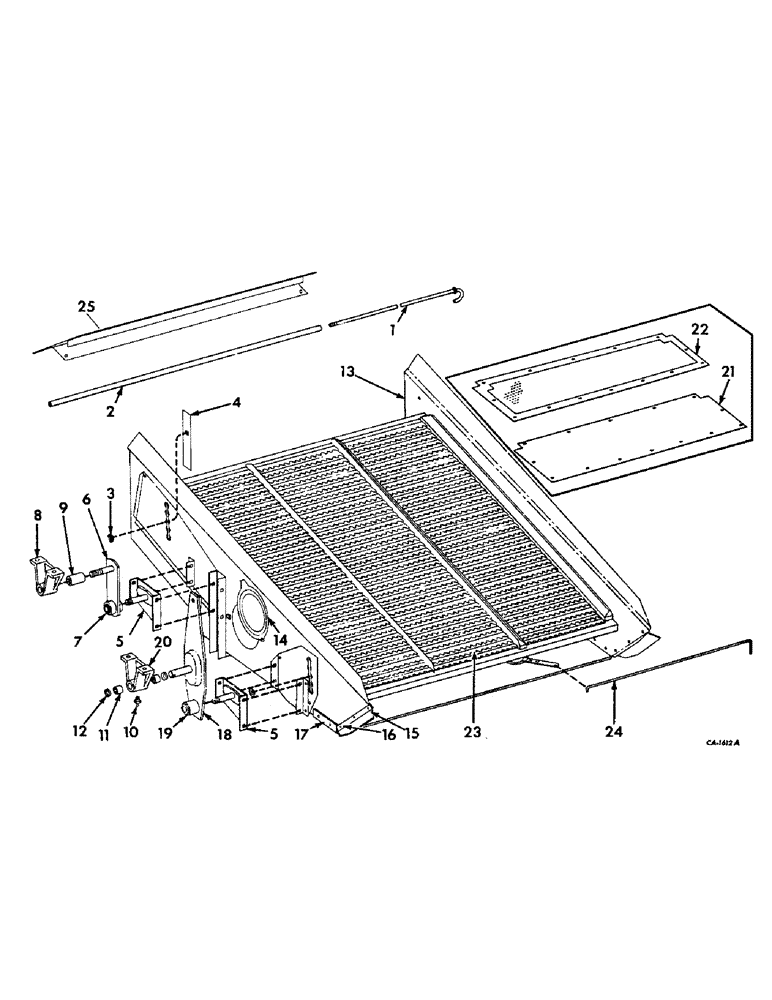

Запчасти Case IH 715 (23-07) - GRAIN PAN, SHOE AND SHOE SIEVE, SHOE AND SHOE SIEVE Grain Pan, Shoe & Shoe Sieve
№
Артикул
Название
Примечание
Количество
1
634349R1
BOLT,5/16" - 18 x 36.20"
shoe sieve adjuster
2шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
619855R1
WASHER
.344 x .750 x .054
1шт.
2
634350R1
PIPE
shoe sieve adjuster bolt spacer
2шт.
3
569946R1
WASHER
shoe sieve adjuster
4шт.
4
564207R1
BAR
SEAL, shoe sieve
4шт.
5
631478R91
HANGER
ASSY, shoe lower left
2шт.
5
631479R91
SUSPENSION BLOCK
HANGER ASSY, shoe lower right
2шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 crg type 1
1шт.
120376
NUT,5/16"-18, G5
1шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8 type 5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
588068R1
WASHER, .656 x 1.250 x .090
1шт.
6
627720R92
ARM ASSY, shoe front hanger, includes ref. no. 7
2шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
5/8 type 5
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
21471R1
WASHER
.656 x 1.000 x 105
1шт.
7
627555R91
BUSHING,16mm ID x 28.96mm OD x 44.45mm L
arm hub
2шт.
8
627717R11
BRACKET ASSY, shoe hanger front LH, includes ref. no. 9
1шт.
18495R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
3/8 x 1-1/4 type 1
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
8
170953C11
BRACKET ASSY, shoe hanger front RH, includes ref. no. 9
1шт.
18495R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
3/8 x 1-1/4 znd hex-hd mach
1шт.
18780R1
BOLT,Hex, 3/8"-16 x 1 3/4", G2
3/8 x 1-3/4 znd hex-hd mach
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, , Type 5 3/8"
1шт.
142619H
WASHER
13/32 x 3/4 x 11 ga C-Z
1шт.
9
627719R91
COMPOSITE RING
BUSHING, shoe front hanger arm bracket
2шт.
10
87415
LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive
NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive
2шт.
11
629631R91
NEEDLE BEARING
BEARING, needle shoe rear hngr
4шт.
12
629632R91
RETAINER
SEAL, shoe rear hngr oil
4шт.
13
568616R92
SHOE
ASSY, includes ref. nos. 14 thru 17, grain, maize, corn and soybean, not edible bean
1шт.
13
570878R92
SHOE ASSY, includes ref. nos. 14 thru 17, for edible bean
1шт.
12291R1
RIVET, 9/64 x 9/16 tin o/hd tube
1шт.
Q3581
RIVET, 9/64 x 5/16 cop o/hd tube
1шт.
21784R1
WASHER
.266 x .500 x .054
1шт.
557109R1
WASHER
.266 x .500 x .054 pln
1шт.
14
551104R1
FLAP
DOOR, shoe inspection
2шт.
15
564205R1
SEAL
side rear
2шт.
16
564206R1
STRIP, rear seal
2шт.
136307
RETURN PIPE
RIVET, 9/64 x 313 znp o/hd s/t
1шт.
Q3574
RIVET, 9/64 x 9/32 oval hd tublar
1шт.
21784R1
WASHER
.266 x .500 x .054
1шт.
17
564196R1
SEAL, lower rear
2шт.
18
ARM ASSY, grain pan and shoe rear hanger, refer to this group under grain pan, shaker shaft and drive
2шт.
19
BUSHING, hanger arm hub, refer to this group under grain pan, shaker shaft and drive
2шт.
20
629644R1
BRACKET
shoe hanger rear
2шт.
18495R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
3/8 x 1-1/4 type 1
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
21
570664R1
SCREEN, shoe bottom, edible bean
1шт.
110634
NUT, no. 10 sq.
1шт.
110500
SCREW,Slotted Rd Hd, #10-24 x 1/2"
no. 10 x 1/2 pln r/hds mach
1шт.
106497
LOCK WASHER,#10
WASHER, LOCK, #10
1шт.
615002R1
WASHER
.203 x .500 x .054
1шт.
22
570663R1
COVER, shoe bottom, edible bean
1шт.
23
179103R1
SIEVE ASSY, shoe, 1-1/8 in. adjusting
1шт.
23
569614R91
SIEVE ASSY, shoe, 1-1/2 in. RD hole parts accessory
1шт.
23
569615R91
SIEVE ASSY, shoe, 1/10 in. RD hole, parts accessory
1шт.
23
569617R91
SIEVE ASSY, shoe, 1/16 in. RD hole, parts accessory
1шт.
23
570750R91
SIEVE ASSY, shoe, 7/32 in. RD hole, parts accessory
1шт.
23
570835R91
SIEVE
ASSY, shoe, 3/8 in. RD hole, parts accessory
1шт.
24
570642R1
ROD
shoe sieve adjusting
1шт.
586591R1
COTTER PIN
PIN, quick attachable cotter
1шт.
25
179073C2
DEFLECTOR ASSY, shoe sieve front
1шт.
167077
SCREW
no. 10 x 3/8 p/hdcr tap
1шт.
Выбрано товаров: 71
