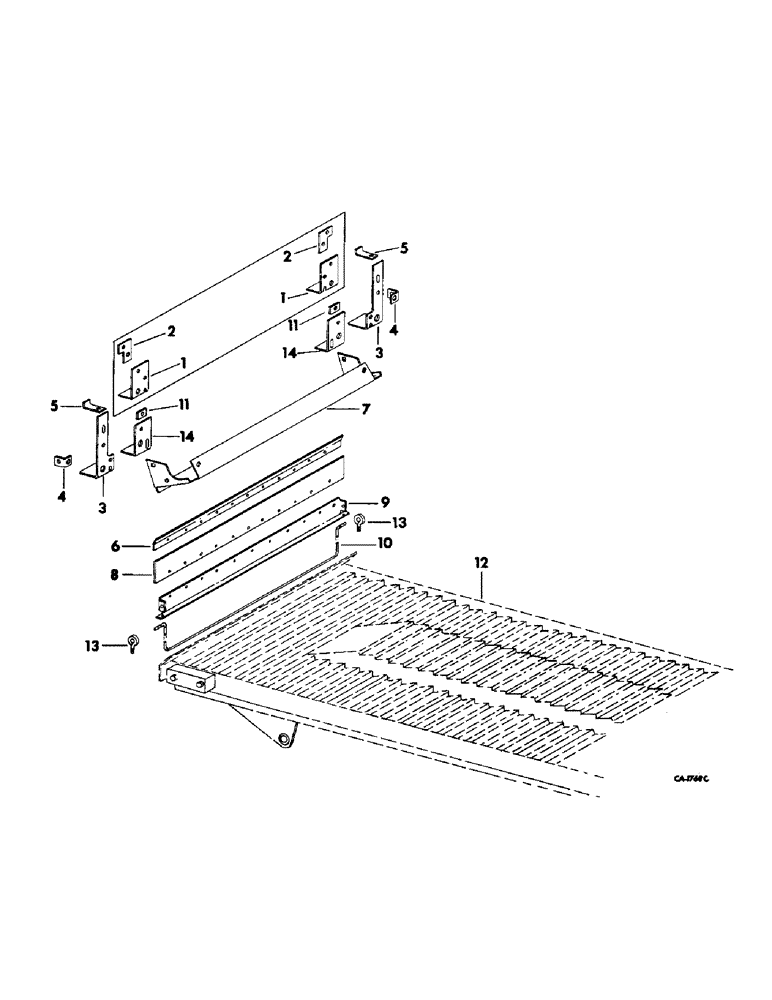

Запчасти Case IH 715 (23-04) - GRAIN PAN, SHOE AND SHOE SIEVE, CONCAVE SEAL AND GRAIN PAN RELATED PARTS Grain Pan, Shoe & Shoe Sieve

1

174541C1

SEAL

concave linkage, for windrow special, not stone retarder

2шт.

564266R1

NUT

5/16 pln tab weld

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

2

174542C1

RETAINER, concave linkage seal, for windrow special, not stone retarder

2шт.

3

174538C1

SEAL

concave linkage, for stone retarder

2шт.

564266R1

NUT

5/16 pln tab weld

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

436734

SCREW,Slotted Pan Hd, #10-24 x 3/4"

no. 10 x 3/4 znp p/hds mach

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

607893R1

WASHER

.203 x .500 x .054

1шт.

619855R1

WASHER

.344 x .750 x .054

1шт.

4

174539C1

ANGLE

concave linkage seal, for stone retarder

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

5

174540C1

RETAINER

concave linkage seal, for stone retarder

2шт.

6

568599R1

STRAP

front seal

1шт.

NLS

NO LONGER SERVICED

1/4 PHC style 1

1шт.

160541

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 znp p/hdcr mach

1шт.

7

171565C1

PLATE

grain pan front seal

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

8

568598R1

SEAL

pan front

1шт.

9

629640R1

TIE, pan front cross

1шт.

135287

RIVET,Truss Hd, 3/16" x 9/16"

3/16 x 9/16 pln t/hd sol

1шт.

10

164299C1

ROD, grain pan seal support scrapper, for windrow special

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

619855R1

WASHER

.344 x .750 x .054

1шт.

11

559553R1

RETAINER

concave linkage, for rice, not edible bean

2шт.

12

PAN ASSY, grain, refer to this group under grain pan

1шт.

13

164298C1

BOLT, grain pan seal support scrapper rod eye

2шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

174855C1

SEAL

concave linkage, for rice, not edible bean

2шт.

564266R1

NUT

5/16 pln tab weld

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.
