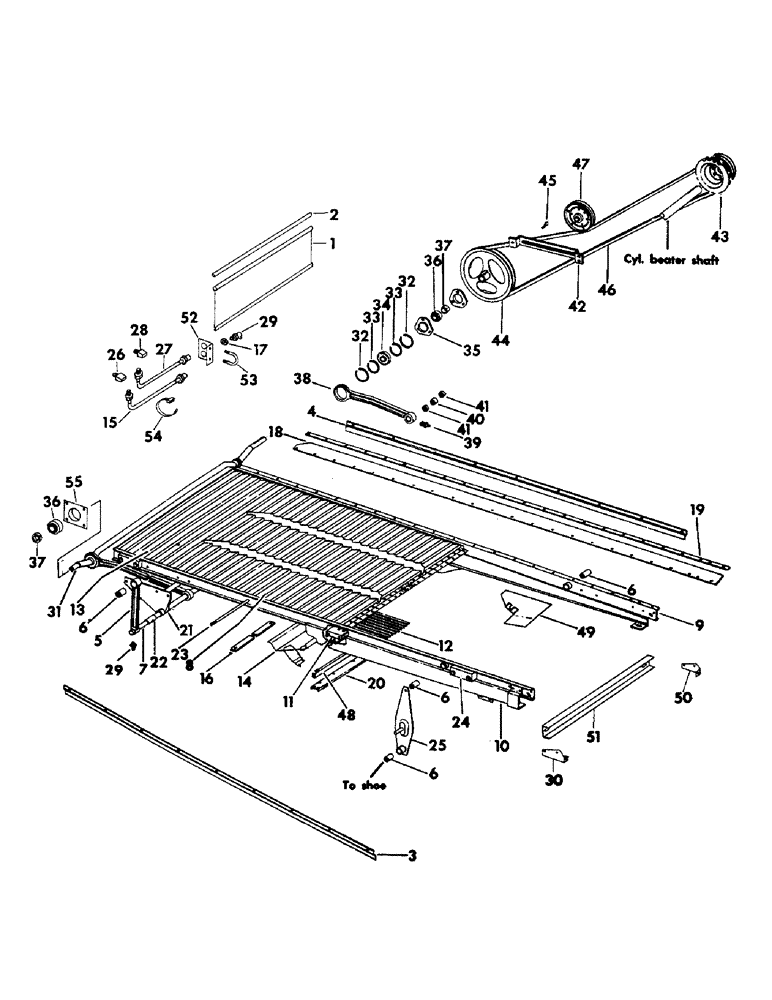

Запчасти Case IH 715 (23-01) - GRAIN PAN, SHOE AND SHOE SIEVE, GRAIN PAN, SHAKER SHAFT AND DRIVE Grain Pan, Shoe & Shoe Sieve

1

569109R21

CANVAS

FLAP ASSY, grain pan check

1шт.

2

569108R1

ROD

grain pan check flap

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

3

627773R11

STRIP

ASSY, grain pan seal left

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

4

171546C11

STRIP ASSY, grain pan seal right

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

5

156063C11

ARM

ASSY, grain pan front hanger, includes ref. no. 6

2шт.

18825R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 2

5/8 x 2-3/4 type 1

1шт.

9413969

NUT,5/8"-11, GB

5/8-11 hex torque lock

1шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

1шт.

589068R1

WASHER

.656 x 1.250 x .090

1шт.

6

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

6шт.

7

627556R1

AXLE PIN

SHAFT, grain pan

1шт.

517843R1

COTTER PIN

PIN, 3/16 cot

1шт.

21885R1

WASHER

1.031 x 2.000 x .054

1шт.

8

188538C91

PAN ASSY.

PAN ASSY, grain, includes ref. nos. 9 thru 14, 16 thru 24, 41 and 48

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

414-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

SCREW, 5/8 x 2-1/2 C-Z hex-hd cap

1шт.

619815R1

WASHER, 13/32 x 1 x 16 ga

1шт.

20511R1

WASHER, 5/8 C-Z med lock

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

9

188541C91

RAIL

ASSY, right side, includes ref. no. 6

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4 crg type 1

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

271750

WASHER

SCREW, 5/8 x 2-1/2 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

1шт.

10

188540C91

BRACKET

RAIL ASSY, left side, includes ref. no. 6

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4 crg type 1

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

414-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

SCREW, 5/8 x 2-1/2 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

1шт.

11

632692R1

SUPPORT, finger

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

BOLT, 5/16 x 3/4 C-Z hex-hd tap

1шт.

120376

NUT,5/16"-18, G5

1шт.

172431

SCREW,Hex, 1/4" - 20 x 3/4"

1/4 x 3/4 H/HD tap

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

155214C1

FINGER

grain pan

21шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4-20 x 3/4 slt-truss-hd

1шт.

13

632697R91

ASSEMBLY

BOTTOM ASSY, grain pan

1шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 type 1

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

14

631193R91

PLATE ASSY, pan center seal, not edible bean

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

BOLT, 5/16 x 3/4 C-Z hex-hd tap

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

15

937781R91

HOSE

grain pan front support lube

1шт.

493-21046

LOCK WASHER,Int Tooth, 7/16"

7/16 int tooth lock

1шт.

16

634606R1

FILLER, grain pan sieve stop

1шт.

17

581873R1

TUBE NUT,4.8 mm Length

lube hose

2шт.

131718

SHIM

7/16 int tooth lock

1шт.

18

564132R1

SEAL

pan side rail

2шт.

19

568248R1

BAR

STRAP, side rail seal

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 H/WHD tap

1шт.

20

626756R1

STIFFENER

sieve front

1шт.

21

654551R91

SUPPORT ASSY, grain pan front, includes ref. no. 22

1шт.

22

559154R1

BUSHING,25.45mm ID x 28.6mm OD x 25.4mm L

front support hub

4шт.

23

568623R1

ROD

pan cross tie

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

24

552883R2

STOP

BLOCK, grain pan

4шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

grain pan

4шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

25

627565R91

ARM

ASSY, grain pan & shoe rear hanger, includes ref. no. 6

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

22189R1

WASHER, 23/32 x 1-1/2 x 16 ga C-Z

1шт.

26

21347R1

ADAPTER,45 Degree, 1/4"-1/8 NPTF

1/8-27 x 1/4-28 45 deg, 1 for belt drive, 2 for hydrostatic drive

1шт.

27

937780R91

HOSE,0.14" ID x 24.00"

Grain Pan Pitman Lube 0.14" ID x 24.00"

1шт.

28

20204R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

1/8-27 x 1/4-28 90 deg

1шт.

29

16964R91

FITTING

1/4 90 deg lub

2шт.

30

190190C1

BRACKET

SUPPORT, sieve center deflector LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

31

196278C1

SHAFT, shaker

1шт.

32

359894R1

RING, SNAP

RING, grain pan pitman brg snap

4шт.

33

UA20551

RING

grain pan pitman brg snap

4шт.

34

554553R91

BALL BEARING,45mm ID x 75mm OD x 16mm W

shaker shaft pitman ball

2шт.

35

662649R1

RETAINER

FLANGE, shaker shaft RH bearing

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

36

571334R91

BALL BEARING,1.125" ID x 62 mm OD x 1.29"

shaker shaft

2шт.

37

557115R11

COLLAR

COLLAR W/ SET SCREW, lkg

2шт.

192450

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 c pt znp hdl s set

1шт.

38

150830C11

PITMAN

W/BRG AND OIL SEAL, shaker shaft, includes ref. nos. 40 and 41

2шт.

39

16964R91

FITTING

1/4-28 90 deg lub

2шт.

40

584164R91

NEEDLE BEARING

needle

2шт.

41

584912R91

OIL SEAL

oil

4шт.

42

627701R1

SUPPORT, shaker shaft drive belt tightener pulley

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

43

170952C2

SPROCKET ASSY.

PULLEY AND SPROCKET, shaker drive, 7-3/4 in. OD and 38 T

1шт.

44

175315C1

PULLEY

shaker shaft driven, 13 in. OD

1шт.

45

Q3930

KEY,Gib, 5/16" Sq x 1 3/4"

5/16 x 5/16 x 1-3/4 gib

1шт.

46

188716C1

V-BELT,22.43 mm W x 2926.69 mm L

Shaker shaft drive 22.43 mm W x 2926.69 mm L

1шт.

47

566519R91

PULLEY

ASSY, shaker shaft drive belt tightener, 6 in. OD

1шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373

WASHER, 17/32 x 1 x 16 ga C-Z

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

23300R1

SQ HOLE WASHER,17/32" x 1 1/2" x .120", Sq Hole

17/32 x 1-1/2 x 11 ga square hole

1шт.

48

568597R1

STOP, grain pan sieve front

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

104067

RIVET,But Hd, 3/16" x 1/2"

3/16 x 1/2 pln but/hd sol

1шт.

227237R1

WASHER, .203 x .750 x .054

1шт.

49

564108R1

DEFLECTOR

grain pan left

2шт.

49

564109R1

DEFLECTOR

grain pan right

2шт.

50

190191C1

BRACKET

SUPPORT, sieve center deflector RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

51

190300C2

CHANNEL

sieve center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

52

188656C2

SUPPORT, grain pan lube hose

1шт.

53

AP11741

BOLT, lube hose support

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD p/t lock type 5

1шт.

54

702093C1

CABLE TIE

TIE, lube hose

1шт.

55

190592C1

HOUSING

ASSY, shaker shaft LH bearing

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
