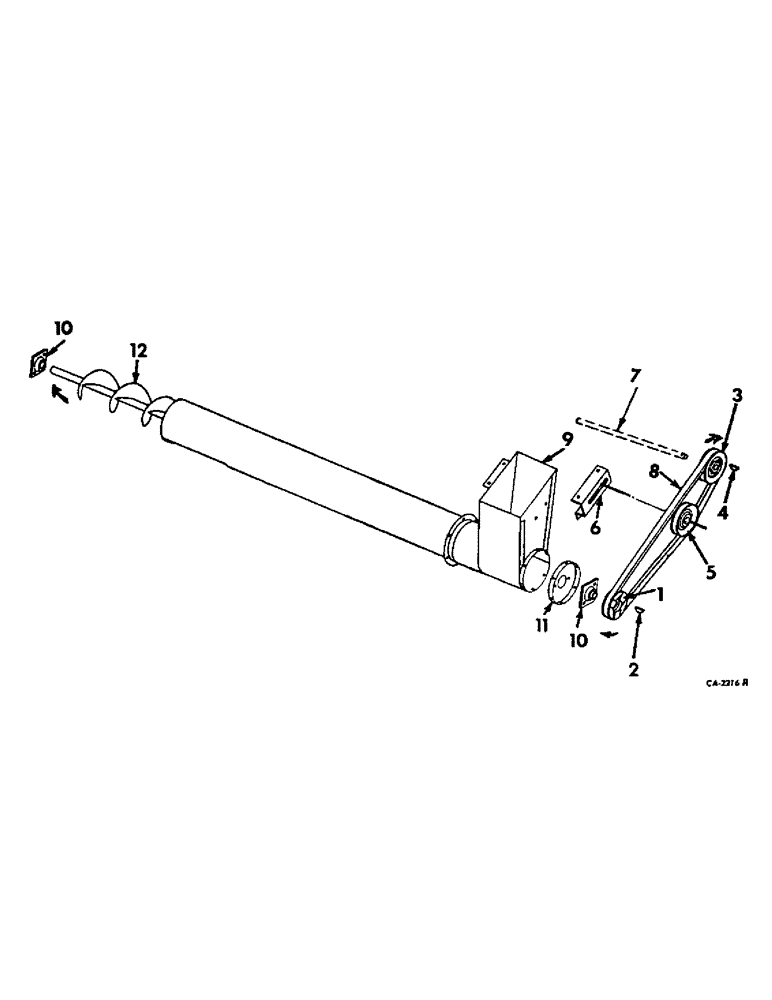

Запчасти Case IH 715 (25-10) - ELEVATORS, TAILINGS DELIVERY AUGER AND DRIVE DOWNSPOUT Elevators

1

633282R1

SHEAVE

PULLEY, tailings delivery auger driven, 4 in. OD

1шт.

107327

SET SCREW,Sq Hd, 5/16"-18 x 1"

SCREW, 5/16 x 1 znp sq/hd c/pt set

1шт.

NLS

NO LONGER SERVICED

5/16 jam type 5

1шт.

2

124551

SCREW

1/4 x 7/8 Woodruff hard

1шт.

3

632830R1

PULLEY

tailings delivery auger drive, 4-3/4 in. OD

1шт.

NLS

NO LONGER SERVICED

5/16 jam type 5

1шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 3/4 znp sq/hd c/pt set

1шт.

4

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

5

161430C91

PULLEY

ASSY, tailings delivery auger drive belt tightener, 4-3/8 in. OD, optional W/180169C92

1шт.

5

180169C92

PULLEY

ASSY, tightener, 5 in. OD, optional w/161430C91

1шт.

17148R1

BOLT,Short NK, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

.531 x 1.250 x .105 sq/h

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

6

627323R1

BRACKET, tailings delivery auger drive belt tightener pulley

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

7

SHAFT, tailings elevator head, refer to this group under tailings elevator and trough

1шт.

8

627297R1

V-BELT,0.63" W

Tailings delivery auger drive 0.63" W

1шт.

9

627284R91

SPOUT, DISCHARGE

DOWNSPOUT ASSY, tailings delivery

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

10

631527R91

BALL BEARING

ball tailings delivery auger

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

5/16 x 1-1/2 crg type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

.344 x .750 x .054

1шт.

11

631693R1

WASHER

END, tailings downspout tube right

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

627298R91

AUGER

ASSY, tailings delivery

1шт.
