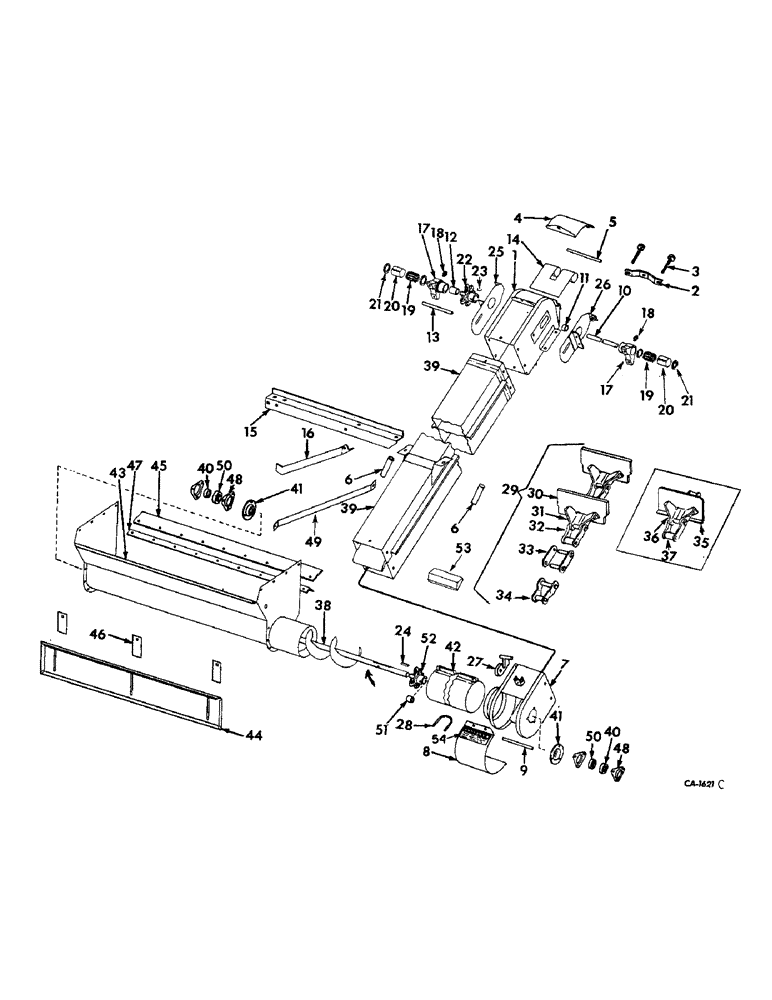

Запчасти Case IH 715 (25-07) - ELEVATORS, TAILING ELEVATOR AND TROUGH Elevators

PARTS ACCESSORY, tailings elevator steel flight, includes ref. nos. 35, 36 and 37

1шт.

1

627322R92

HOUSING

HEAD ASSY, tailings elevator

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 crg type 1

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

1шт.

18627R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1", Gr 2

BOLT, 1/4 x 1 znd sq-nk crg

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

935735R1

WING NUT

1/4 C-Z wing

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

1шт.

2

936554R1

STRAP

conveyor chain tightener bolt

1шт.

3

611421R1

BOLT,Hex, 7/16" - 14 x 3 1/2", Full Thd

conveyor chain tightener, nut, 7/16 C-Z hex

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

1шт.

4

165489C1

DOOR

tailings elevator head

1шт.

18628R1

BOLT,Short NK, 1/4"-20 x 1 1/4", G2

1/4 x 1-1/4 znd sq-nk crg

1шт.

935735R1

WING NUT

1/4 wing

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

1шт.

5

568672R1

PIN, tailings elevator head door hinge

1шт.

6

661116R1

SPACER, 1/2 x 3/8 std pipe

2шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 x 4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

7

156130C91

BOOT

ASSY, tailings elevator, not rice

1шт.

7

156131C92

BOOT

ASSY, tailings elevator, rice

1шт.

8

156909C1

DOOR

tailings elevator boot, not rice

1шт.

8

184560C91

DOOR

tailings elevator boot, includes ref. nos. 54, for rice

1шт.

8

156911C1

DOOR

tailings elevator boot, perforated, not rice

1шт.

9

568671R1

PIN

tailings elevator boot door hinge, not rice

1шт.

9

U17024

PIN

tailings elevator boot door hinge, for rice

1шт.

10

627964R2

SHAFT

tailings elevator head

1шт.

20703R1

WASHER

.906 x 1.750 x .054

1шт.

11

568675R1

SPACER,1 1/8" Tube x 1/2"

tailings head shaft outer

1шт.

12

153049C1

SPACER

tailings head shaft inner

1шт.

13

568673R1

PIPE

SPACER, tailings elevator head shaft

1шт.

14

568676R2

SHUTTER

SHIELD, tailings elevator headshaft

1шт.

15

170976C1

SUPPORT ASSY, tailings elevator and fan control

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

16

628995R1

BRACE, tailings elevator support front

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

631704R1

HOUSING

BOX, elevator head shaft bearing

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8-27 PTF str lub self tap

2шт.

19

562708R91

BEARING ASSY,0.875" ID x 1.378" OD x 1.75"

roller elevator headshaft

2шт.

20

631735R1

SLEEVE CYLINDER

RACE, elevator head shaft bearing

2шт.

21

631734R91

OIL SEAL

elevator head bearing box oil

4шт.

22

168696C1

SPROCKET ASSY.

SPROCKET, elevator conveyor chain, 7 T

1шт.

23

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

24

Q10

KEY,1/4" Sq x 1 3/8"

1/4 x 1/4 x 1-3/8 square

1шт.

25

631699R91

SUPPORT

BRACKET ASSY, conveyor tightener LH

1шт.

15357R1

BOLT, 5/16 x 7-1/4 sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

1шт.

26

631700R91

SUPPORT

BRACKET ASSY, conveyor tightener RH

1шт.

27

155909C1

LATCH

elevator boot door

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 C-Z std-hd

1шт.

28

664360R1

BOLT,U, 1/4" - 20 x 69.65"

U-BOLT, elevator boot door

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 hex w/nylon insert

1шт.

29

170978C91

CHAIN (AG)

CHAIN ASSY, tailing elevator conveyor, not edible bean

1шт.

29

153650C91

CHAIN ASSY, tailings elevator conveyor, edible bean

1шт.

558430R1

RIVET

5/16 x 19/32 tubular

1шт.

30

152237C91

PADDLE

FLIGHT W/ATTACHING AND ROLLER LINKS, tailings elevator, tire carcass

1шт.

31

150722C91

LINK

attaching

1шт.

32

588566R91

LINK

roller

1шт.

33

588564R11

LINK

connecting

1шт.

34

588562R91

CHAIN LINK

LINK, offset

1шт.

35

153299C91

CONVEYOR

FLIGHT W/ATTACHING AND ROLLER LINK, includes ref. no. 36, steel, parts accessories, regular for edible bean

1шт.

36

150722C91

LINK

attaching

1шт.

37

631253R91

LINK

roller

1шт.

38

175715C1

AUGER

ASSY, tailings

1шт.

21220R1

WASHER

.906 x 1.250 x .105

1шт.

20703R1

WASHER

29/32 x 1-3/4 x 16 ga C-Z

1шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga

1шт.

39

170974C1

HOUSING

ASSY, tailings elevator

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 crg type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

40

455102R21

COLLAR

ASSY W/SET SCREW, locking

2шт.

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

1шт.

41

606695R1

COVER

SHIELD, tailings auger bearing

2шт.

42

627390R91

CLAMP

EXTENSION ASSY, tailings auger trough, not edible bean

1шт.

42

628648R91

CLAMP

EXTENSION ASSY, tailings auger trough, edible bean

1шт.

174602C1

BOLT, special machine

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

43

154260C91

TROUGH

ASSY, tailings

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

160541

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 znp p/hdcr mach

1шт.

1203801

WASHER, 1/4 lock

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

44

154262C1

DOOR, tailings auger trough

1шт.

45

628430R1

SEAL

tailings auger trough

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

1шт.

935735R1

WING NUT

1/4 wing

1шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga

1шт.

46

154263C1

SEAL

tailings auger trough door

3шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 crg type 1

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga

1шт.

47

628427R1

STRIP, tailings auger trough seal

1шт.

48

571424R1

FLANGE

tailings auger trough seal

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

49

191785C1

SHAFT

STRAP, tailings elevator lower brace

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

50

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING, tailings auger ball

2шт.

51

571823R1

SPACER,1 1/4" Tube x 1"

tailings auger shaft

1шт.

52

165292C1

SPROCKET ASSY.

SPROCKET, elevator auger shaft 6 T

1шт.

53

175311C1

REFLECTOR

red

1шт.

54

179749C2

PRODUCT GRAPHIC

danger

1шт.
