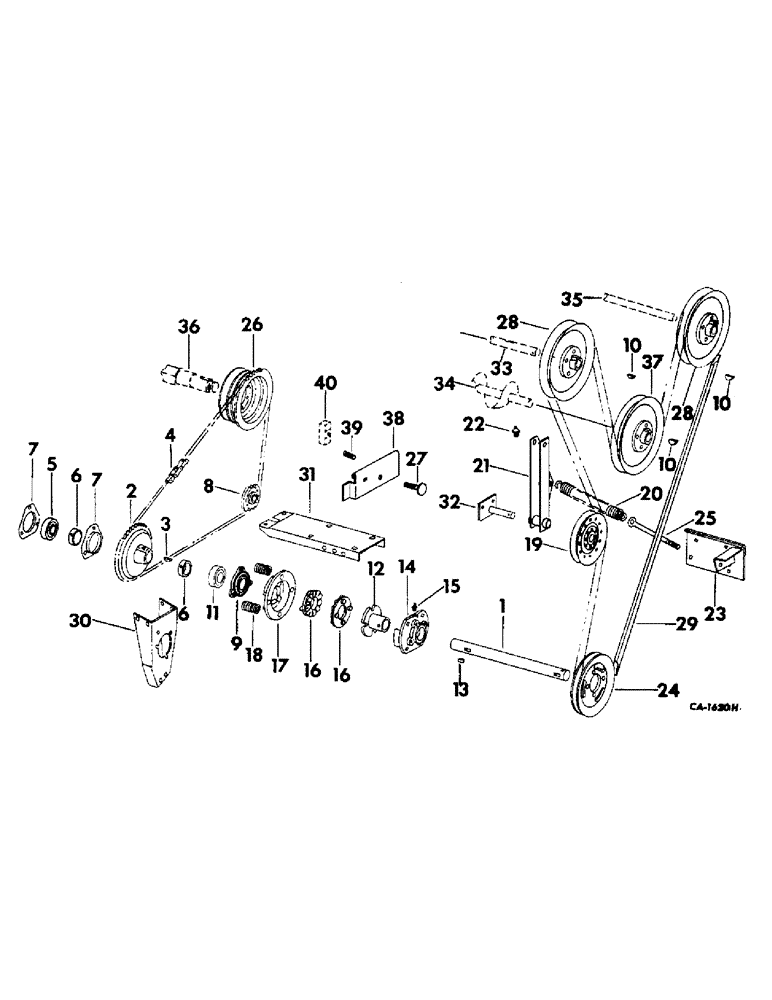

Запчасти Case IH 715 (25-05) - ELEVATORS, ELEVATOR DRIVE Elevators

1

155812C1

SHAFT

JACKSHAFT, elevator drive

1шт.

2

629166R1

SPROCKET ASSY.

SPROCKET, elevator jackshaft driven, 38 T

1шт.

124824

NUT,Hex, 5/16" - 18

5/16 jam type 5

1шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 3/4 znp sq/hd c/pt set

1шт.

3

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 Woodruff B

1шт.

4

CHAIN ASSY, elevator jackshaft drive roller, use 71 links from 10-ft roll marked 1791D and one connecting link 1310D

1шт.

5

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

BEARING, elevator jackshaft ball

1шт.

6

455104R11

COLLAR

ASSY, elevator jackshaft bearing locking

2шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8 c/pt znp hdl/s set

1шт.

7

180955C1

FLANGED BEARING,0.375"

FLANGE, elevator jackshaft bearing

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

8

565442R91

SPROCKET

ASSY, elevator jackshaft drive chain tightener, 17 T

1шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

17/32 x 1-1/4 x 11 ga C-Z

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

9

174997C91

FLANGE

w/bearing, elevator jackshaft outer, includes ref. no. 11

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

3шт.

11

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

BEARING ASSY, elevator jackshaft outer

1шт.

12

583785R1

HOLDER

slip clutch

1шт.

17069R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

13

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 Woodruff hard

1шт.

14

155813C1

HUB

slip clutch

1шт.

15

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

16

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch

2шт.

17

632152R2

RETAINER

slip clutch

1шт.

18

28395H

SPRING

slip clutch

4шт.

25209R1

BOLT, 3/8 x 3-1/4 DLD crg type 1

1шт.

425-126

SLOTTED NUT,3/8"-16, G5

NUT, 3/8 slt type 5

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

19

154742C91

PULLEY

ASSY, elevator drive belt tightener, 7-1/4 in. OD

1шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 znd hex-hd mach

1шт.

169070C1

NUT

tightener pulley bolt

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608701R1

WASHER

.656 x 1.250 x .054

1шт.

20

384296R2

VALVE SPRING

SPRING, tightener pulley

1шт.

21

172602C2

PIVOT

ASSY, elevator drive belt tightener

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

22

16964R91

FITTING

1/4-28NS 45 deg angle lub

1шт.

23

172606C1

ANCHOR ASSY, elevator idler

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

24

172614C1

PULLEY, elevator drive, 8 in. OD

1шт.

24

178938C1

PULLEY, elevator drive, 6.50 in. OD, slow speed, for edible bean

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25

160749C1

BOLT

draw

1шт.

271501

SOCKET

NUT, 7/16 znd hex

2шт.

26

PULLEY AND SPROCKET, elevator jackshaft, 7-3/4 in. OD and 38 T, refer to group 23 under grain pan, shaker shaft and drive

1шт.

27

570028R91

BOLT

BOLT ASSY, elevator slip clutch arm switch, for use w/operators cab

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

28

174733C1

PULLEY

W/HUB ASSY, elevator driven, 10-1/2 in. OD

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

84983

SET SCREW,3/8" x 1"

SCREW, 3/8 x 1 znp sq/hd c/pt set

1шт.

29

937928R1

V-BELT

Elevator drive, Not grain tank raise leveling auger

1шт.

29

937929R1

V-BELT

Elevator drive, Grain tank raised leveling auger

1шт.

30

171012C1

SUPPORT, grain elevator drive jackshaft outer bearing, grain tank

1шт.

31

629168R1

STIFFENER, grain elevator drive jackshaft outer bearing support grain tank

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

32

172610C1

PIVOT ASSY, elevator drive idler, cylinder chain drive

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

178375R1

WASHER

.781 x 1.250 x .054

1шт.

33

HEADSHAFT, grain elevator, refer to this group under grain elevator and trough

1шт.

34

AUGER ASSY, grain tank leveling, refer to group 26 under grain tank and support

1шт.

35

HEADSHAFT, tailing elevator, refer to this group under tailings elevator and trough

1шт.

36

SHAFT W/NUTS, cylinder beater, refer to group 21 under cylinder beater

1шт.

37

174734C1

PULLEY

W/HUB ASSY, leveling auger driven, 10-1/2 in. OD

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

84983

SET SCREW,3/8" x 1"

SCREW, 3/8 x 1 znp sq/hd c/pt set

1шт.

38

173014C1

PLATE, warning switch

1шт.

18482R1

BOLT,Short NK, 5/16"-18 x 2", G2

5/16 x 2 crg type 1

1шт.

24666R1

BOLT,Hex, 5/16" - 18 x 7", Gr 2

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

.344 x .750 x .054

1шт.

39

H140

SPRING

alarm lever switch

1шт.

40

SWITCH, elevator slip clutch, refer to group 8 under wiring diagram, front section

1шт.
