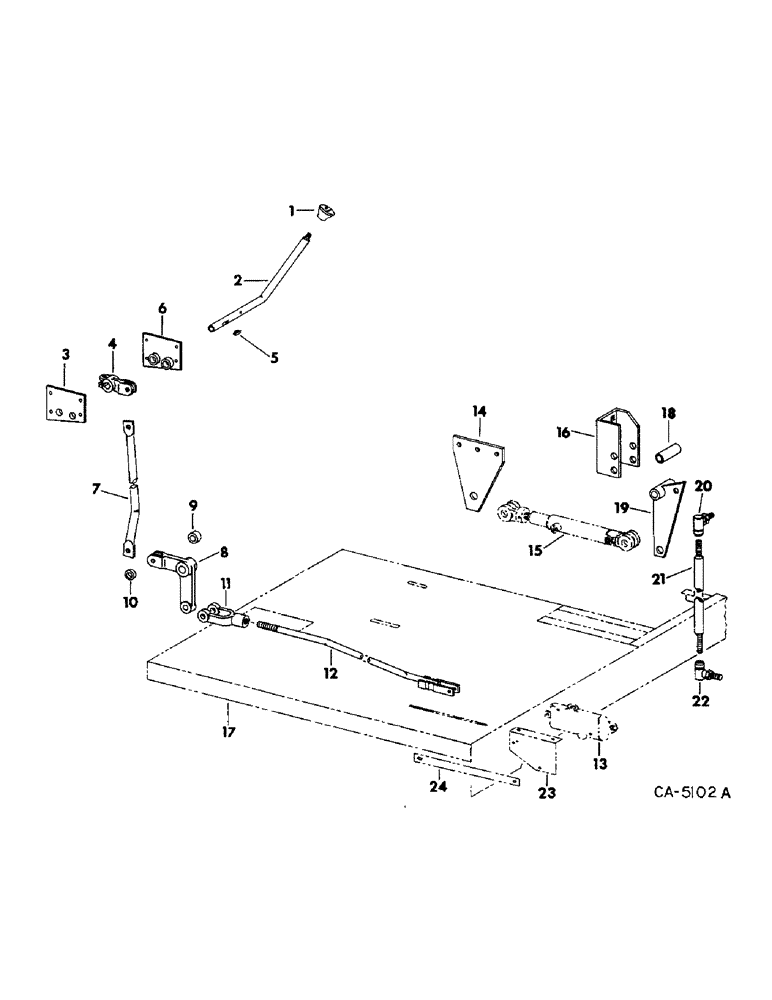

Запчасти Case IH 715 (07-24) - DRIVE TRAIN, PROPULSION CONTROL, BELT DRIVE Drive Train

1

178599C1

KNOB, control lever

1шт.

2

939246R1

LEVER, control

1шт.

21796R1

WASHER

.656 x 1.000 x .054

1шт.

3

627408R91

PLATE ASSY, control right

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

627415R1

ARM, upper

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

138078

PIN, 3/8 x 1.060 UHDN clevis

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

28459KA

WASHER

upper arm

1шт.

6

627407R91

PLATE ASSY, control left

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

7

627416R1

ROD, vertical control

1шт.

8

627414R1

BELLCRANK, lower

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

138078

PIN, 3/8 x 1.060 UHDN clevis

1шт.

9

576015R1

SPACER,7/8" Tube x 11/16"

lower bellcrank right

1шт.

10

558506R1

SPACER

lower bellcrank left

1шт.

11

104039

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, control

1шт.

124934

HOSE

1/2-NF jam type 5

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

20286R1

SPLIT PIN/SAFETY PIN

PIN, 3/16 x 1.031 clevis

1шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, CLEVIS, 1/2" x 1.360"

1шт.

12

190874C1

ROD ASSY, rear control

1шт.

13

190878C91

VALVE

ASSY, propulsion control

1шт.

18659R1

BOLT,Hex, 1/4" - 20 x 2", Gr 2

1/4 x 2 type 1

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

14

627419R1

ANCHOR, control cylinder

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

15

CYLINDER ASSY, control, refer to group 10 under propulsion control cylinder

1шт.

16

171895C1

BRACKET ASSY, bellcrank mount

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

20281R1

BOLT,Hex, 1/2"-13 x 3 3/4", G2

1/2 x 3-3/4 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

17

PLATFORM ASSY, operators, refer to group 13 under operators platform

1шт.

18

580184R1

BUSHING, bellcrank tube

1шт.

19

936609R91

LEVER ASSY, control

1шт.

20

936613R91

SOCKET

BALL JOINT ASSY, control rod LH thread

1шт.

120371

NUT,1/2"-20, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

21

936606R2

TURNBUCKLE

ROD, control rear

1шт.

120371

NUT,1/2"-20, G5

1шт.

280963

NUT,Nut, 1/2-20 GR 5 ZND

1/2-NF LHT type 5

1шт.

22

936614R91

STEERING KNUCKLE

BALL JOINT ASSY< control rod

1шт.

120371

NUT,1/2"-20, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

23

196619C1

SUPPORT, valve

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

24

196665C2

SUPPORT

valve

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
