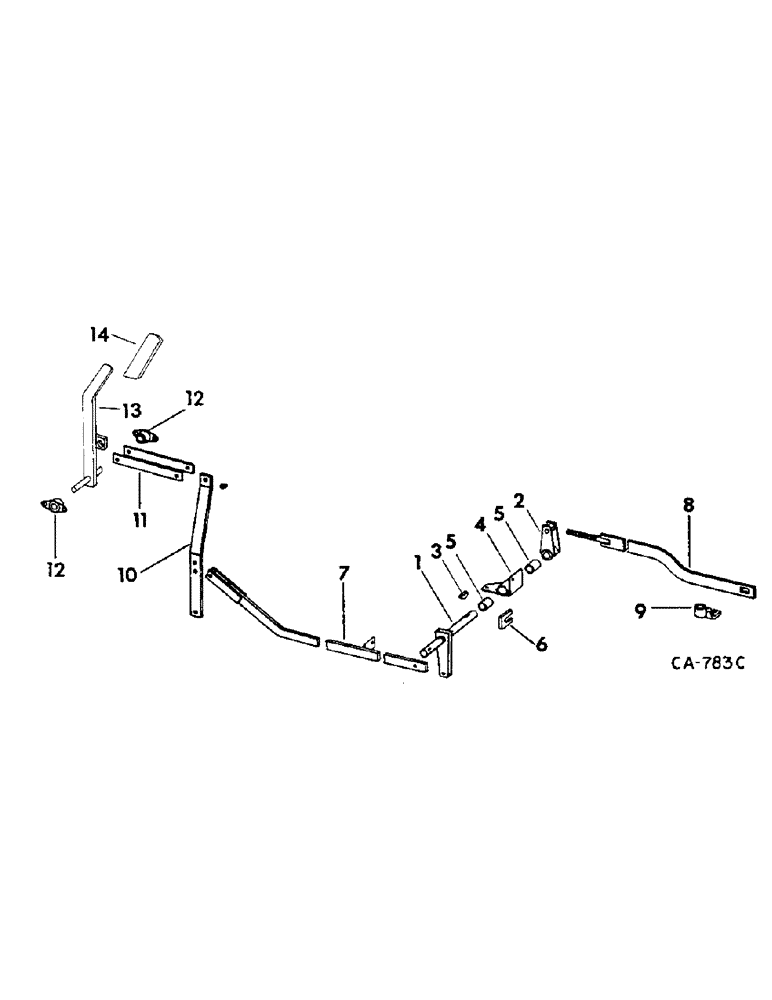

Запчасти Case IH 715 (07-23) - DRIVE TRAIN, SEPARATOR DRIVE CLUTCH CONTROL Drive Train

1

171221C1

SHAFT

ASSY, clutch control pivot

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

18608R1

LOCK PIN,7.92mm OD x 25.4mm L, Coiled

Pin, 5/16" x 1", Slotted

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga

1шт.

2

631204R91

ARM

ASSY, clutch control pivot upper

1шт.

3

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

4

172251C1

PIVOT

ASSY, clutch control, includes ref. no. 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

5

559317R1

BUSHING,25.55mm ID x 28.6mm OD x 38.1mm L

2шт.

6

589713R1

SHIM

bolt

1шт.

7

171981C1

BAR ASSY, clutch front control

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

21881R1

CLEVIS PIN

PIN, 3/8 x C-Z rod end

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

8

629897R91

BAR

ASSY, separator drive clutch rear

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex

1шт.

9

155644C1

LEVER

separator clutch pivot

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

938818R1

STRAP, separator drive clutch lever

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

21881R1

CLEVIS PIN

PIN, 3/8 x 1 C-Z rod end

1шт.

11

938817R1

STRAP, separator drive clutch lever connector

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

21881R1

CLEVIS PIN

PIN, 3/8 x 1 C-Z rod end

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

12

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING, feeder drive lever

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

190893C1

LEVER ASSY, separator drive clutch

1шт.

14

938885R1

GRIP

separator drive clutch lever

1шт.
