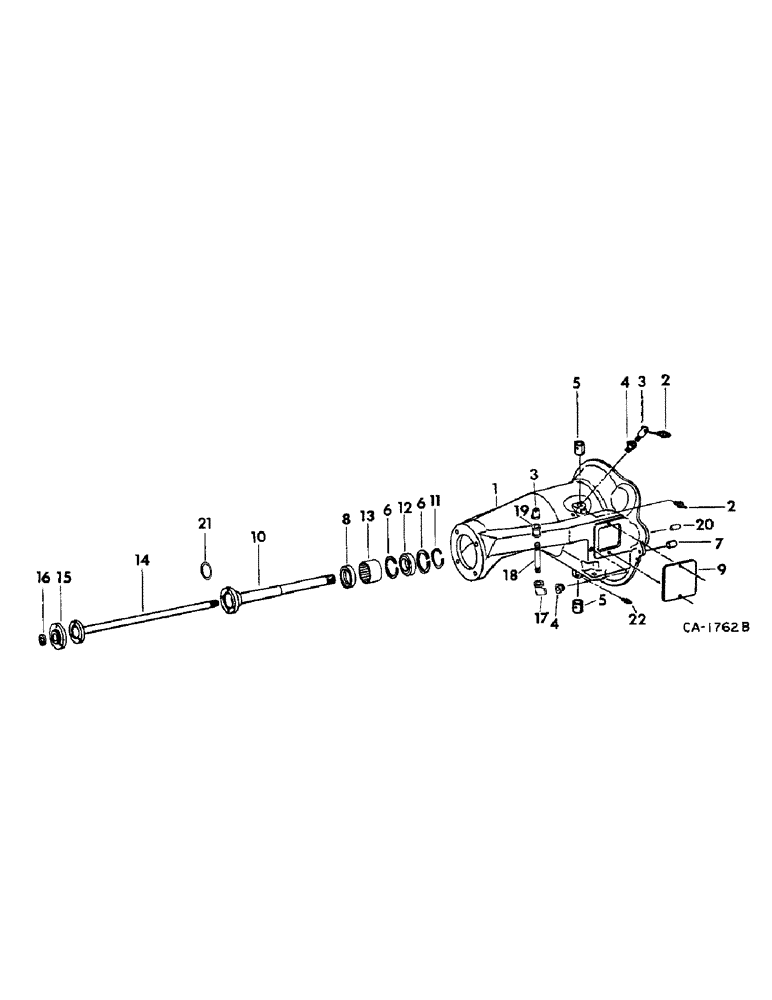

Запчасти Case IH 715 (07-22) - DRIVE TRAIN, SEPARATOR CLUTCH HOUSING, HYDROSTATIC DRIVE Drive Train
№
Артикул
Название
Примечание
Количество
1
190711C91
HOUSING ASSY, separator clutch, includes ref. no. 5
1шт.
280112
BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5
1шт.
180042
BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5
SCREW, 1/4-20 x 1-3/4 znd hex-hd cap
1шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
SCREW, 1/2-13 x 1-1/2 znd hex-hd cap
1шт.
180179
BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5
1/2 x 1-3/4 type 5
1шт.
180188
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5
1/2 x 2-3/4 type 5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
2
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
3
62022R91
FITTING
pressure relief
1шт.
4
NLS
NO LONGER SERVICED
REDUCER, 1/2 x 1/8, brass
1шт.
5
450263R1
BUSHING
separator clutch
2шт.
6
163648C1
SNAP RING,#334, 3.590", Int
RING, separator clutch housing snap
2шт.
7
159851C1
DOWL, separator clutch housing
1шт.
8
631713R91
OIL SEAL
separator clutch housing oil
1шт.
9
150625C1
COVER, separator clutch housing
1шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
10
629836R1
TUBE
separator drive
1шт.
11
631255R1
SNAP RING,#177, Ext
Ring, Snap, , drive shaft bearing #177, Ext
1шт.
12
113568R91
BALL BEARING,1.7712" ID x 3.35" OD x 0.75"
BEARING, drive shaft ball
1шт.
13
631306R91
ROLLER BEARING,1.9685" ID x 3.5433" OD x 0.7874"
separator clutch housing roller
1шт.
14
150621C1
SHAFT
pump drive
1шт.
15
150622C1
SPACER
pump drive shaft
1шт.
16
150623C1
WASHER
pump drive shaft
1шт.
17
127960
ELBOW
1/8 x 90 deg street, for use w/straw chopper
1шт.
18
192046
NIPPLE, 1/8 x 3-1/2 pipe, for use w/straw chopper
1шт.
19
144067
COUPLING,1/8" NPT, Fem
1/8 pipe, for use w/straw chopper
1шт.
20
190795C1
DOWEL, clutch housing
1шт.
21
324252R1
SNAP RING,0.901", Int, #90
Ring, Snap, , drive hub 0.901", Int, #90
1шт.
22
219-7
LUBE NIPPLE,1/8" - 27 NPTF
FITTING, 1/8-27 str lube
1шт.
Выбрано товаров: 31
