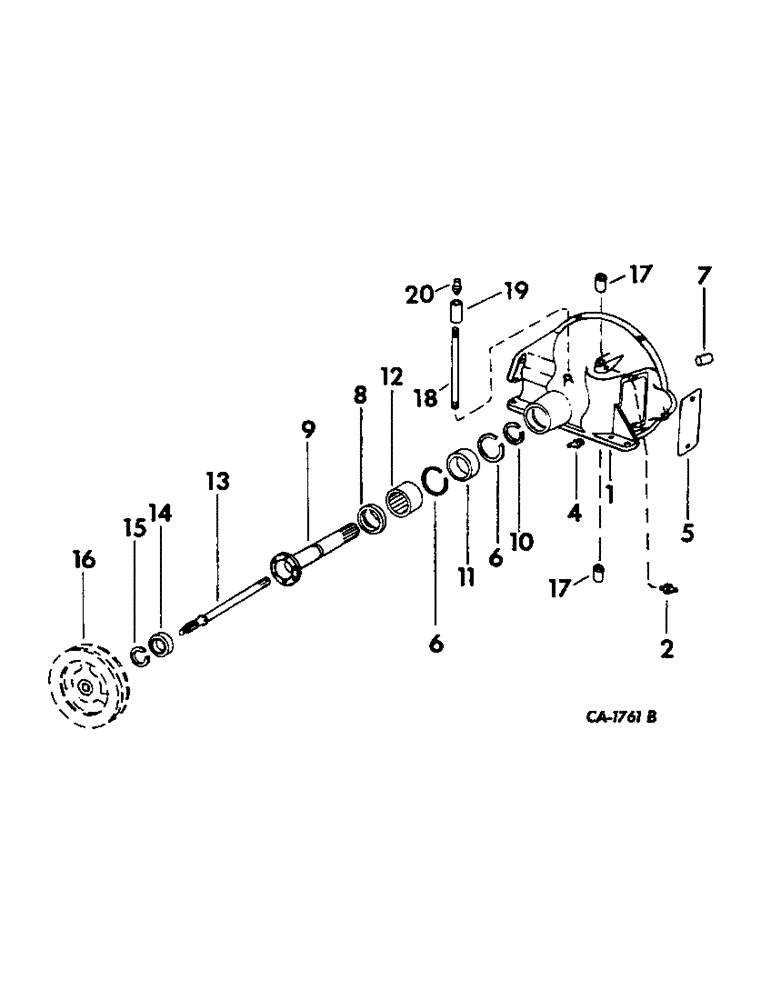

Запчасти Case IH 715 (07-21) - DRIVE TRAIN, SEPARATOR CLUTCH HOUSING, BELT DRIVE Drive Train

1

190709C91

HOUSING, separator clutch, includes ref. no. 17

1шт.

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

SCREW, 1/4-20 x 1-3/4 znd hex-hd cap

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4 type 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

3

190795C1

DOWEL, clutch housing

1шт.

4

273348

LUBE NIPPLE

FITTING, 1/8-27 str lube

1шт.

5

190749C1

COVER, separator clutch housing

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

6

163648C1

SNAP RING,#334, 3.590", Int

RING, separator clutch housing snap

2шт.

7

159851C1

DOWEL, separator clutch housing

1шт.

8

631713R91

OIL SEAL

separator clutch housing oil

1шт.

9

629836R1

TUBE

separator drive

1шт.

10

631255R1

SNAP RING,#177, Ext

Ring, Snap, , drive shaft bearing #177, Ext

1шт.

11

113568R91

BALL BEARING,1.7712" ID x 3.35" OD x 0.75"

BEARING, drive shaft ball

1шт.

12

631306R91

ROLLER BEARING,1.9685" ID x 3.5433" OD x 0.7874"

separator clutch housing roller

1шт.

13

629838R2

SHAFT

propulsion drive

1шт.

543386R1

LOCK NUT,7/8"-14, G5

NUT, 7 8-NF pln p t lock type 5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

21715R1

WASHER

29/32 x 1-3/4 x 11 ga C-Z

1шт.

14

658135R91

BEARING

propulsion drive shaft ball

1шт.

15

659380R1

SNAP RING,#137, Ext

Ring, Snap, , propulsion drive shaft brg #137, Ext

1шт.

16

PULLEY, propulsion jackshaft drive, refer to this group under propulsion drive

1шт.

17

450263R1

BUSHING

clutch housing

2шт.

18

192046

NIPPLE, 1/8 x 4 in. long

1шт.

19

144067

COUPLING,1/8" NPT, Fem

1/8 pipe

1шт.

20

62022R91

FITTING

pressure relief

1шт.
