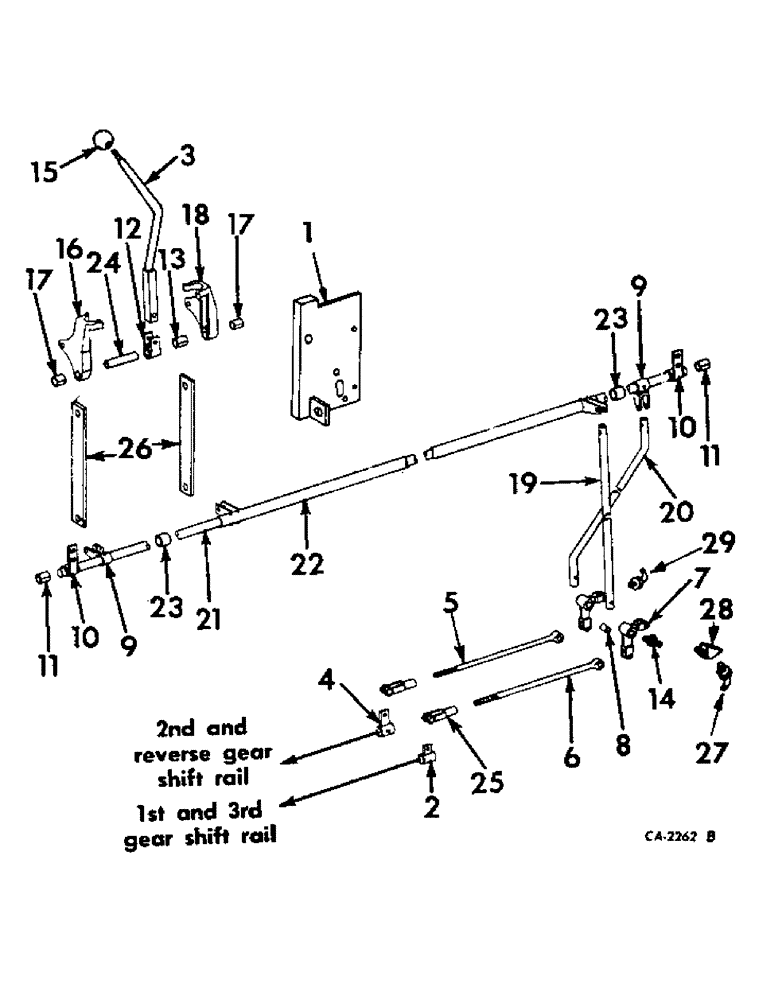

Запчасти Case IH 715 (07-19) - DRIVE TRAIN, TRANSMISSION GEAR SHIFT AND LINKAGE Drive Train

1

195968C2

SUPPORT ASSY, shift lever

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

2

175960C1

ARM ASSY, 1st and 3rd gear shift rail

1шт.

19689R1

PIN,1/4" x 1 1/4", Coiled

1шт.

3

938846R91

LEVER ASSY, shift

1шт.

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

4

175963C1

ARM ASSY, 2nd and reverse gear shift rail

1шт.

19689R1

PIN,1/4" x 1 1/4", Coiled

1шт.

5

175965C1

ROD, gear shift lower front

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

6

175965C1

ROD, gear shift lower rear

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

7

175966C1

LEVER

BELLCRANK, gear shift connector lower

2шт.

18608R1

LOCK PIN,7.92mm OD x 25.4mm L, Coiled

Pin, 5/16" x 1", Slotted

1шт.

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

175967C1

WIRE, locking

1шт.

8

583250R1

BUSHING, gear shift connector lower

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

3/8 x 5 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

589068R1

WASHER

.656 x 1.250 x .090

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga

1шт.

9

564526R1

CRANK, gear shift connector shaft

2шт.

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

1шт.

10

631647R91

BRACKET

SUPPORT ASSY, gear shift connector shaft bearing, includes ref. no. 11

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

556448R1

BUSHING,19.07mm ID x 22.23mm OD x 25.4mm L

2шт.

12

157360C11

ARM

PIVOT ASSY, gear shift lever, includes ref. no. 13

1шт.

13

568920R1

BUSHING

1шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lube, for use w/o mud shield

2шт.

15

163574C1

KNOB

gear shift lever

1шт.

16

626608R11

ARM ASSY, gear shift left, includes ref. no. 17

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

18608R1

LOCK PIN,7.92mm OD x 25.4mm L, Coiled

Pin, 5/16" x 1", Slotted

1шт.

17

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

gear shift arm

2шт.

18

626609R11

ARM ASSY, gear shift right, includes ref. no. 17

1шт.

18788R1

BOLT

3/8 x 4-1/2 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

19

627450R1

CONNECTOR, shift 1st and 3rd

1шт.

20

627451R2

CONNECTOR, shift 2nd and reverse

1шт.

21

569344R1

SHAFT, gear shift connector

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

1шт.

22

569345R91

TUBE ASSY, gear shift connector, includes ref. no. 23

1шт.

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

18608R1

LOCK PIN,7.92mm OD x 25.4mm L, Coiled

Pin, 5/16" x 1", Slotted

1шт.

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

23

556448R1

BUSHING,19.07mm ID x 22.23mm OD x 25.4mm L

2шт.

24

564519R1

SPACER, gear shift lever pivot

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

25

117825

CLEVIS, gear shift rod

2шт.

121224

SUPPORT

3/32" x 1"

1шт.

138085

AXLE PIN,7/16" x 1.190"

PIN, 7/16 x 1-15/64 C-Z rod end

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

1шт.

26

177133C1

LINK, gear shifter arm

2шт.

27

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 45 deg lube, for use w/mud shield

1шт.

28

21347R1

ADAPTER,45 Degree, 1/4"-1/8 NPTF

1/8-27 x 1/4-28 45 deg, for use w/mud shield

1шт.

29

16964R91

FITTING

1/4-28 str lube, for use w/o mud shield

2шт.
