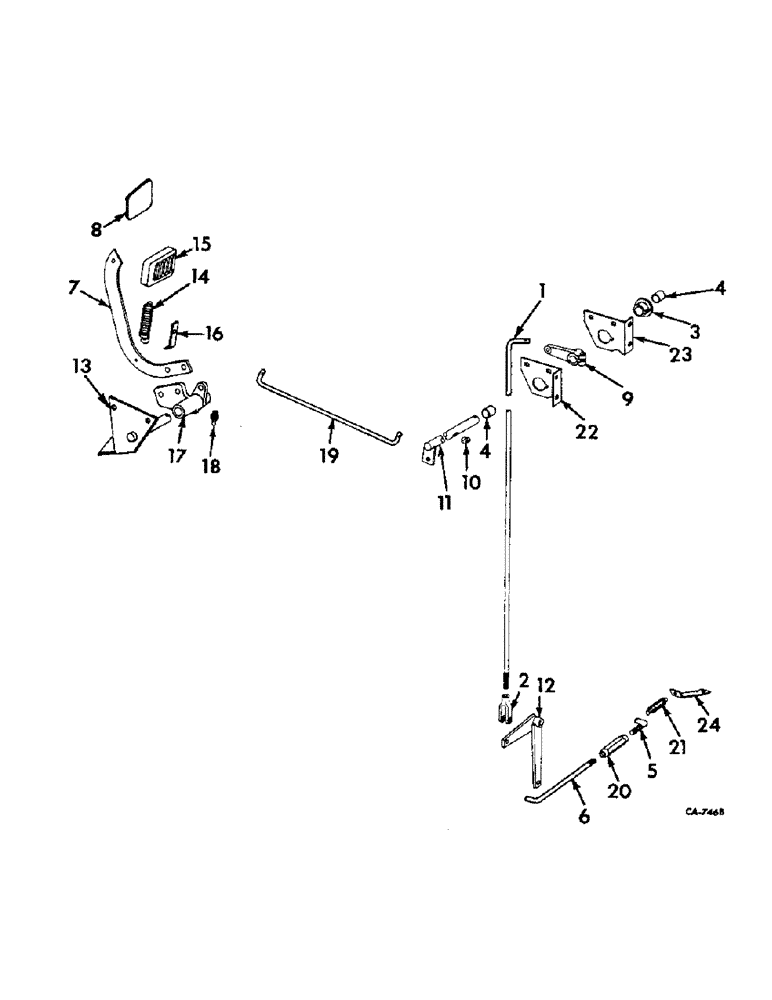

Запчасти Case IH 715 (07-17) - DRIVE TRAIN, CLUTCH PEDAL AND LINKAGE, BELT DRIVE Drive Train

1

155976C1

ROD, transmission clutch

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

2

144243

CLEVIS

adjusting rod end

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.

3

579464R11

BEARING ASSY, trans clutch shaft, includes ref. no. 4

2шт.

4

561905R1

BUSHING

2шт.

5

565582R1

ROD, trans clutch lower inner control

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

6

936462R1

ROD, trans clutch outer horizontal

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

7

163429C1

LEVER, transmission clutch

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 hex-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 flange lock

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

8

163425C1

PEDAL

transmission clutch

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, 41 x 81 x 06

1шт.

9

172967C1

ARM, transmission clutch rear shaft

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

28459KA

WASHER

transmission clutch rear shaft arm

1шт.

11

627460R91

SHAFT ASSY, transmission clutch rear

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

12

177481C1

LEVER ASSY, transmission clutch

1шт.

13

174807C2

PIVOT ASSY, transmission clutch

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 znd hex

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

14

228

SPRING

transmission clutch arm return

1шт.

15

863426R1

PAD

transmission clutch pedal

1шт.

16

938869R1

STRIP, transmission clutch lever stop

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

17

938870R1

PIVOT, transmission clutch pedal arm

1шт.

18

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

19

173839C1

ROD

transmission clutch upper pin, 3/32 x 3/4 cot

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

20

MA3973

TURNBUCKLE, transmission horizontal control

1шт.

21

165

SPRING

transmission clutch return

1шт.

22

633283R1

BRACKET, transmission clutch rear shaft left

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

23

633284R1

BRACKET, transmission clutch rear shaft right

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

24

633701R1

BRACKET, transmission clutch return spring

1шт.
