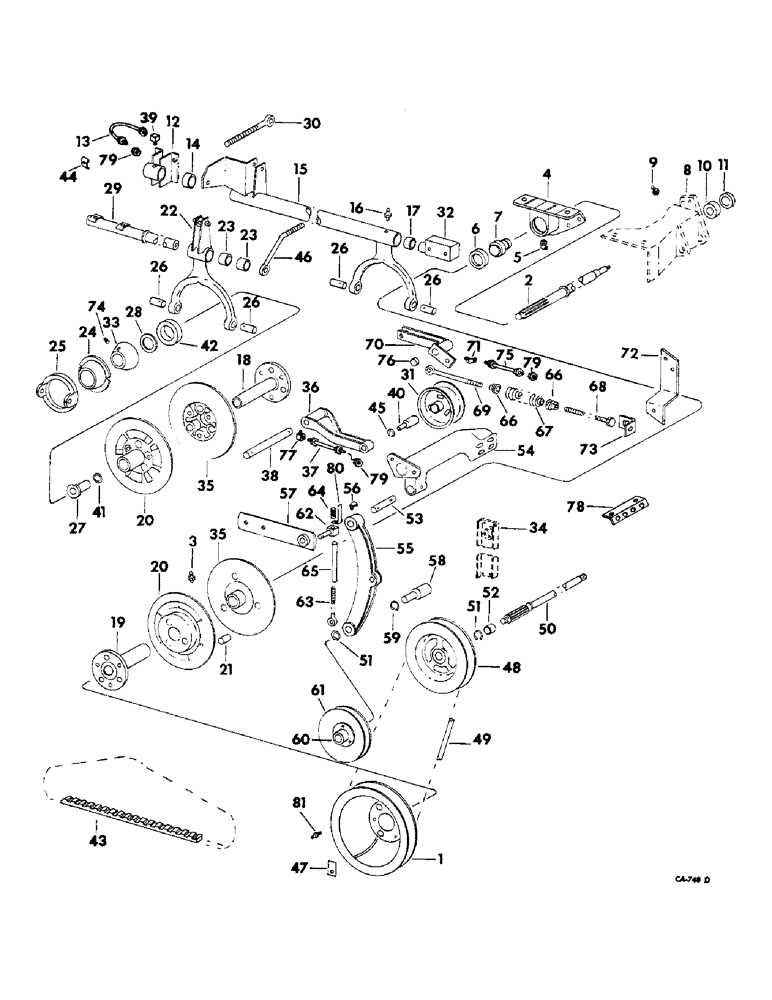

Запчасти Case IH 715 (07-13) - DRIVE TRAIN, PROPULSION DRIVE, BELT DRIVE Drive Train

1

633354R1

PULLEY, propulsion jackshaft driven, 16-1/8 in. OD

1шт.

2

627541R11

SHAFT

JACKSHAFT ASSY, propulsion

1шт.

125250

SLOTTED NUT,1/2"-20, G8

NUT, 1/2-20 C-Z slt hex

1шт.

425-1516

JAM NUT,Jam, 1"-14, G5

1-14 C-Z hex jam

1шт.

119120

COTTER PIN,3/32" x 1 1/4"

PIN, SPLIT (COTTER), 3/32 x 1 1/4"

1шт.

22770R1

WASHER

17/32 x 1-1/2 x 7 ga C-Z

1шт.

21102R1

WASHER

1-1/32 x 2-1/4 x 11 ga C-Z

1шт.

22822R1

WASHER

1-21/32 x 2-1/2 x 16 ga C-Z

1шт.

3

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

4

627545R11

SUPPORT ASSY, propulsion jackshaft left brd

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

5

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 PTF 90 deg angle lub

1шт.

6

631705R91

SEAL

propulsion jackshaft left brg

1шт.

7

631986R91

BALL BEARING,1.6255" ID x 85 mm OD x 1.6875"

ball propulsion jackshaft left

1шт.

8

HANGER, propulsion jackshaft and fan drive, refer to group 24 under variable fan drive

1шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 nf str lub

1шт.

10

632034R91

BALL BEARING,30 mm ID x 62 mm OD x 24 mm

ball propulsion jackshaft right

1шт.

11

632033R91

OIL SEAL

propulsion jackshaft right brg

1шт.

12

565352R91

SUPPORT

BRACKET ASSY, propulsion puller support post, includes ref. no. 14

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

188655C91

HOSE

propulsion control lube

1шт.

14

936744R1

BUSHING,47.66mm ID x 50.83mm OD x 19.05mm L

2шт.

15

936601R91

LEVER ASSY, propulsion, includes ref. no. 17

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

21955R1

HEADED PIN,1/2" x 1 5/8"

PIN, 1/2 x 1-5/8 C-Z std-hd

1шт.

22801R1

WASHER

1-17/32 x 2 x 16 ga C-Z

1шт.

21750R1

WASHER

1-29/32 x 2-1/2 x 16 ga C-Z

1шт.

16

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28NF 45 deg lub

1шт.

17

936743R1

BUSHING

2шт.

18

633350R1

HUB

SLEEVE, drive pulley front

1шт.

271748

SNAP RING

SCREW, 5/8-18 x 2 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

19

633351R1

SLEEVE

drive pulley rear

1шт.

19544R1

BOLT,Hex, 5/8"-11 x 3 1/4", G2

5/8 x 3-1/4 C-Z hex-hd mach

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

633352R11

PULLEY

ASSY, propulsion drive, 14 in. OD, includes ref. no. 21

2шт.

21

633433R1

BEARING

BUSHING

6шт.

22

565410R91

ARM ASSY, propulsion pulley adj pivot, includes ref. no. 23

1шт.

23

565414R1

BUSHING

2шт.

24

565366R1

OIL SEAL

RING, propulsion variable speed pulley adj outer

2шт.

25

565367R1

SHOE, propulsion variable speed pulley adj outer

2шт.

441013R1

LOCK PIN,1/4" x 2 1/2", Slotted

Pin, 1/4" x 2 1/2", Slotted

1шт.

26

565345R1

SHAFT

adj arm pivot

4шт.

27

574257R1

STOP

. transmission shaft

1шт.

28

565371R1

WASHER

adj ring felt

2шт.

29

565416R91

SHAFT ASSY, propulsion pulley outer pivot

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

21883R1

WASHER

17/32 x 1-3/4 x 11 ga C-Z

1шт.

22801R1

WASHER

1.531 x 2.000 x .054

1шт.

30

565415R1

BOLT,1/2" - 20 x 8"

propulsion pulley adj arm connecting

1шт.

120371

NUT,1/2"-20, G5

1шт.

31

569963R1

PULLEY

propulsion drive belt tightener, 7-5/8 in. OD

1шт.

32

936749R1

SUPPORT, propulsion pulley pivot shaft

1шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2 x 3 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

33

564797R1

OIL SEAL

RING, adj inner

2шт.

34

BRACE ASSY, propulsion jackshaft RH bearing support, grain tank, refer to group 26 under grain tank unloader drive

1шт.

35

633353R11

PULLEY

W/PINS, propulsion driven adjusting half, 14 in. OD

2шт.

36

174580C1

ARM, propulsion belt tightener

1шт.

37

188589C91

HOSE

tightener arm lub

1шт.

38

629520R1

SHAFT

propulsion belt tightener pivot

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

616252R1

LOCK PIN,3/8" x 2 1/8", Slotted

Pin, 3/8" x 2 1/8", Slotted

1шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga C-Z

1шт.

39

20204R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

ADAPTOR, 1/8-27 int x 1/4-28 ext 90 deg

1шт.

40

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

propulsion belt tightener ball

1шт.

41

382432R1

O-RING,1.984" ID x 0.139" Width

2 x 2-1/4 x 1/8

4шт.

42

559156R91

BEARING

propulsion pulley adj ring

2шт.

43

173110C1

BELT,1.50" W x 98.98" L

V-BELT , Propulsion drive 1.50" W x 98.98" L

1шт.

44

165602C1

CLAMP

lube hose

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD P/T lock type 5

1шт.

45

559203R1

SNAP RING,#118, 1.260", Int, Spiral

RING, propulsion belt tightener snap

1шт.

46

935916R1

BOLT,Eye, 5/8" - 11 x 274.32mm, Bent

BRACE, propulsion pulley pivot shaft

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8 x 1-3/4 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

21882R1

WASHER, 21/32 x 2 x 16 ga C-Z

1шт.

47

633349R1

LOCKING PLATE

KEEPER, propulsion jackshaft lock nut

1шт.

48

627732R1

PULLEY, propulsion jackshaft drive, 12-1/4 in. OD

1шт.

49

150436C2

V-BELT,1.26" W x 177.98" L

Propulsion Jackshaft Drive 1.26" W x 177.98" L

1шт.

50

SHAFT, propulsion drive, refer to this group under separator clutch housing, belt drive

1шт.

51

RING, propulsion drive shaft brg snap, refer to this group under under separator clutch housing, belt drive

1шт.

52

BEARING, propulsion drive shaft ball, refer to this group under separator clutch housing, belt drive

1шт.

53

628292R1

SHAFT

propulsion jackshaft drive belt tightener arm pivot

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

84983

SET SCREW,3/8" x 1"

SCREW, 3/8-16 x 1 C-Z sq-hd cup-pt

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

1шт.

54

627548R1

SUPPORT, propulsion jackshaft drive belt tightener

1шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16-14 x 1-1/4 C-Z hex-hd cap

1шт.

180160

SCREW,Hex, 7/16" - 14 x 3"

7/16 x 3 znd hex-hd cap

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

21029R1

WASHER

15/32 x 1 x 11 ga C-Z

1шт.

55

564765R1

ARM

propulsion jackshaft drive belt tightener

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

21806R1

HEADED PIN,1/2" x 1 3/4"

PIN, 1/2 x 1-3/4 C-Z std-hd

1шт.

56

16964R91

FITTING

1/4-28NS 90 deg angle lub

1шт.

57

569456R91

BRACKET

ASSY, propulsion jackshaft drive belt tightener adjusting

1шт.

58

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

propulsion jackshaft drive belt tightener ball

1шт.

59

559203R1

SNAP RING,#118, 1.260", Int, Spiral

RING, propulsion jackshaft drive belt tightener sheave hub snap

1шт.

60

564729R1

HUB, propulsion jackshaft drive belt tightener pulley

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

61

569193R11

PULLEY

ASSY, propulsion jackshaft drive belt tightener, 10-5/8 in. OD

1шт.

62

564731R1

TRUNNION

propulsion jackshaft drive belt tightener adj bolt

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

63

585455R1

BOLT

DRAWBOLT, propulsion jackshaft drive belt tightener adj

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

64

VC682

VALVE SPRING

SPRING, propulsion jackshaft drive belt tightener drawbolt

1шт.

65

569199R1

SPACER

SLEEVE, propulsion jackshaft drive belt tightener drawbolt

1шт.

66

PO2327

PLUG

propulsion belt tightener spring

2шт.

67

188634C91

SPRING

W/PLUGS, propulsion belt tightener, includes ref. no. 66

1шт.

68

174569C1

BOLT, propulsion belt tightener spring front

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

69

662904R1

BOLT,Adj, 5 1/2"

propulsion belt tightener spring rear

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

70

174570C92

ARM

ASSY, tightener control, includes ref. no. 76

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

456273R1

PIN, 3/8 x 1-3/8 znd std-hd

1шт.

23170R1

HEADED PIN,1/2" x 2 3/8"

PIN, 1/2 x 2-3/8 znd std-hd hts

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

71

20204R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

1/8-27 int x 1/4-28 ext 90 deg

1шт.

72

174574C1

BRACKET, spring anchor

1шт.

73

174575C1

ANGLE, spring anchor

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

74

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8 sq-hd pipe

2шт.

75

188589C91

HOSE

propulsion idler

1шт.

76

559154R1

BUSHING,25.45mm ID x 28.6mm OD x 25.4mm L

tightener control arm hub

2шт.

77

586983R1

ADAPTOR, 1/8-27 int x 1/8-27 ext 90 deg

1шт.

78

188652C1

BRACKET, lube hose anchor

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

79

581873R1

TUBE NUT,4.8 mm Length

lube hose

3шт.

80

188650C1

GAGE, propulsion jackshaft drive

1шт.

81

219-7

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, 1/8-27 str 2.62 long, for use w/mud shield

1шт.
