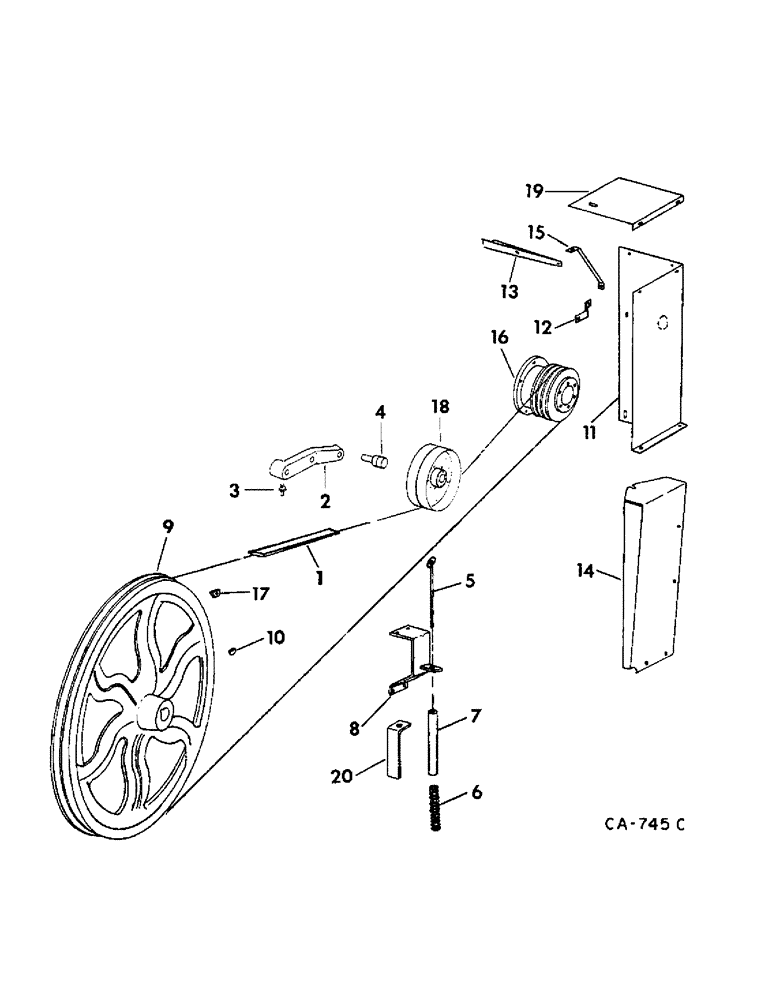

Запчасти Case IH 715 (07-11) - DRIVE TRAIN, SEPARATOR DRIVE Drive Train

1

171226C1

BELT,0.630" W x 171.99" L, 3 Ribs

V-BELT , Separator drive 0.630" W x 171.99" L, 3 Ribs

1шт.

2

171227C1

LEVER

separator drive belt idler pulley

1шт.

Note - Bushing forRef #2 is 559154R1 as seen in Grp 23 Page 2 Ref #22 11/17/95

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

21806R1

HEADED PIN,1/2" x 1 3/4"

PIN, 1/2 x 1-3/4 C-Z std-hd

1шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

1шт.

4

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

ASSY, separator drive idler pulley

1шт.

5

164770C1

BOLT, separator drive tightener pulley draw

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

607895R1

WASHER

.531 x 1.000 x .105

1шт.

6

523267R1

SPRING

separator drive belt idler pulley draw bolt

1шт.

7

159273C1

TUBE,.531" ID, .625" OD, 6.6" Length

separator drive belt idler pulley draw bolt spring

1шт.

8

171229C1

BRACKET ASSY, separator drive draw bolt

1шт.

9

171232C1

PULLEY, separator driven, 33 in. OD

1шт.

10

218216

WOODRUFF KEY,#V, 1/2" x 2 3/4", HT

KEY, 1/2 x 2-3/4 Woodruff, hard

1шт.

11

190797C1

SHIELD, PTO drive, belt drive

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

12

172148C1

STRAP, PTO shield support, belt drive

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

1шт.

13

172150C2

ANGLE, PTO shield support, belt drive

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

1шт.

14

188553C1

SHIELD, PTO drive, hydrostatic drive

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

1шт.

15

190800C1

STRAP, PTO shield support, belt drive

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

16

172228C1

PULLEY, separator drive, 7-1/2 in. OD

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

17

166876C1

WEIGHT

balance

1шт.

654859R1

SELF-TAP SCREW,1/4" - 20 x 1 1/2"

SCREW, 1/4 x 1-1/2 hex-hd self tapping

1шт.

18

174756C1

PULLEY

ASSY, separator drive belt idler, 8 int OD

1шт.

19

190799C1

SUPPORT, PTO shield, belt drive

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

20

188651C1

GAGE, separator drive

1шт.
